VSDISPLAY 12.3 Inch 2K LCD Screen 2400x900 with USB-C LCD Controller Board,as Extra Secondary Display Panel for PC/Laptop/Game Cabinet Monitor
- Specification12.3 inch stretched bar display 2400x900 2K LCD screen with USB-C interface lcd controller board;Brightness 250 cd/m² (Typ.)
- Clear DisplayR support,12.3'' 2k lcd screen 2400x900,vivid and clarify display panel,enjoy better visual
- Lightweight & ThinOutline size 300 ×123.3×3.5 (H×V×D);display 291.6× 109.35 (H×V),save more space,easy to install
- ApplicationWidely usages,perfect for DIY project,fit for pc/laptop working,DIY pc case,car display,game monitor,replacement panel or extended display,meet your different request

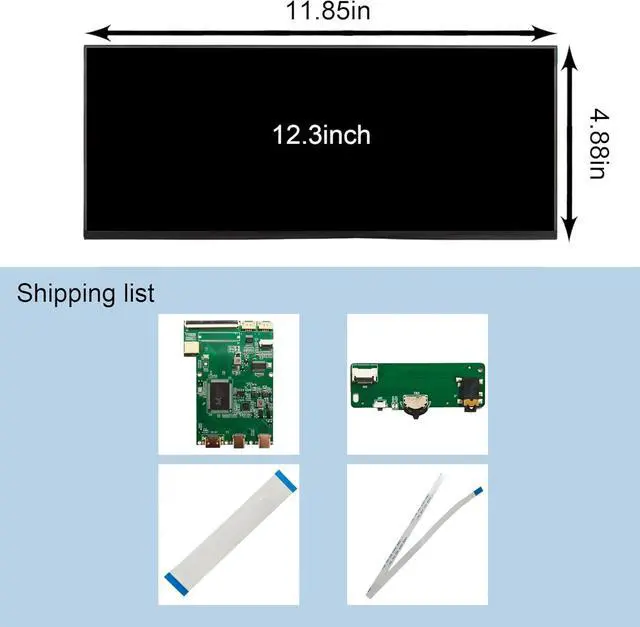

- Packing List1× USB-C LCD Controller Board VS-AP2K;1× 12.3inch VS123T-01 2400X900 2K LCD Screen;1× Signal Cable;1× Keyboard With Cable
+
+
Overview
Specs
Reviews

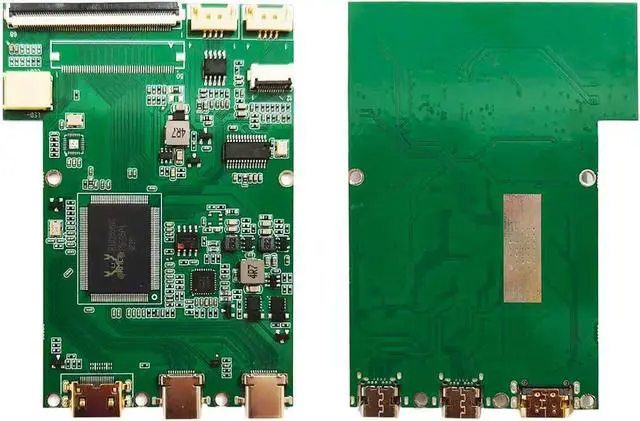

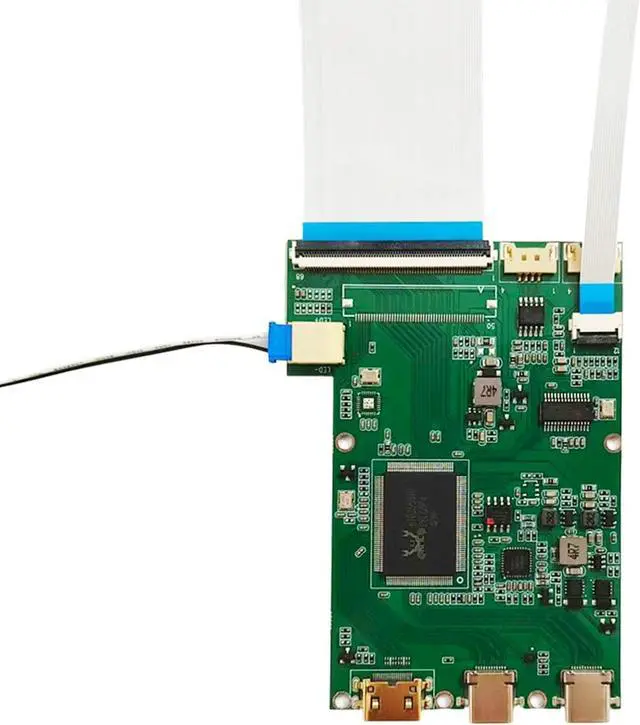

LCD Controller Board:
USB C Control Board Work for LCD Screen
Input Power Adapter: USB-C connector
HDR: Support
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Input: USB-C
Output: eDP USB (max 500mA)
Audio Output: Speaker
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English Chinese French Deutsch Italian Espanol Portugues Turkce Polski
Nederlands Korean Japanese
Board Size: 60.8mm x 60.2mm x 4mm
12.3" VS123GF-01 2400X900 LCD Screen:
Display Mode ADS, Normally Black, Transmissive
Resolution:2400(RGB)×900
Outline Size:300 ×123.3×3.5 (H×V×D)
Display Area:291.6× 109.35 (H×V)
Brightness:250 cd/m² (Typ.)
Contrast Ratio:1500:1 (Typ.) (TM)
Viewing Angle:85/85/85/85 (Typ.)(CR10) [Left / Right / Up / Down]
Signal Interface Parallel LVDS (2 ch, 8-bit) , 68 pins , FPC
Backlight WLED
Input Voltage:3.3V (Typ.)
Packing list:
1× USB-C LCD Controller Board VS-AP2K
1× 12.3inch VS123T-01 2400X900 2K LCD Screen
1× Signal Cable
1× Keyboard With Cable
USB C Control Board Work for LCD Screen
Input Power Adapter: USB-C connector
HDR: Support
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Input: USB-C
Output: eDP USB (max 500mA)
Audio Output: Speaker
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English Chinese French Deutsch Italian Espanol Portugues Turkce Polski
Nederlands Korean Japanese
Board Size: 60.8mm x 60.2mm x 4mm
12.3" VS123GF-01 2400X900 LCD Screen:
Display Mode ADS, Normally Black, Transmissive
Resolution:2400(RGB)×900
Outline Size:300 ×123.3×3.5 (H×V×D)
Display Area:291.6× 109.35 (H×V)
Brightness:250 cd/m² (Typ.)
Contrast Ratio:1500:1 (Typ.) (TM)
Viewing Angle:85/85/85/85 (Typ.)(CR10) [Left / Right / Up / Down]
Signal Interface Parallel LVDS (2 ch, 8-bit) , 68 pins , FPC
Backlight WLED
Input Voltage:3.3V (Typ.)
Packing list:
1× USB-C LCD Controller Board VS-AP2K
1× 12.3inch VS123T-01 2400X900 2K LCD Screen
1× Signal Cable
1× Keyboard With Cable
