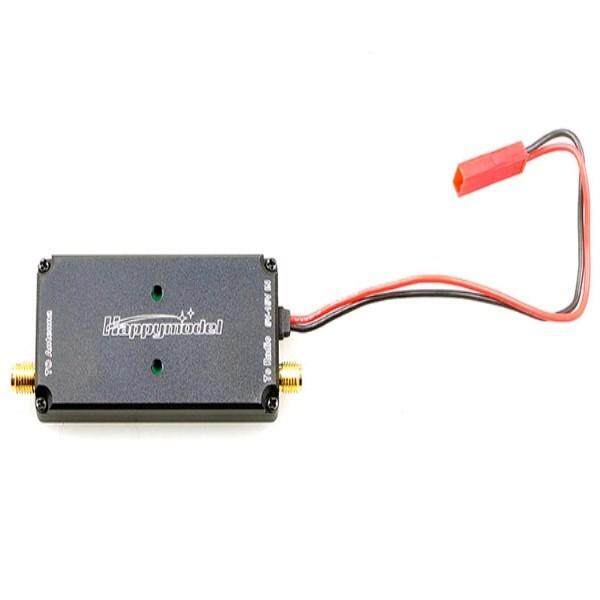

FPV 2.4G 2W 2000mW Mini Radio Signal Booster Range Extender For DJI Phantom -

In stock.
Ships from China.
Fees for brokerage and duty included in price. Most customers receive within 7-23 days.
  • Item Name: 2.4G 2W Signal Booster
  • Material :CNC aluminum
  • Input Voltage: 5V-15V
  • Transmitter Gain: 11dB ±1.5dB
  • Noise Figure: =3.0dB
  • Input power range: 4dBm-20dBm
  • Max output power: 33dBm(2W)
  • Operation Voltage: 5V-15V
Overview
Specs
Reviews
Description:
Item Name: 2.4G 2W Signal Booster
Material :CNC aluminum
Input Voltage: 5V-15V
Transmitter Gain: 11dB ±1.5dB
Noise Figure: =3.0dB
Input power range: 4dBm-20dBm
Max output power: 33dBm(2W)
Operation Voltage: 5V-15V
Operation Current: =400ma
Input connector: RP-SMA Female (Outer thread - inner hole)
Output connector: SMA Female (Outer thread- inner pin)
Size: 62*32*10mm (without antenna,mount and power cable)
Weight: 36G (without antenna)
Features:
Designed for FPV, with small size, light weight, and heat dissipation.
Decrease interference
Note:
Please assemble the antenna before powering on.
User may need to solder the signal booster to original transmitter module.
The product will require DIY modify skills and relative knowldge. Please confirm before purchasing.
Package Included:
1 x 2.4G 2W Signal Booster
1 x Antenna
1 x Power Cable
1 x Connecting Cable
