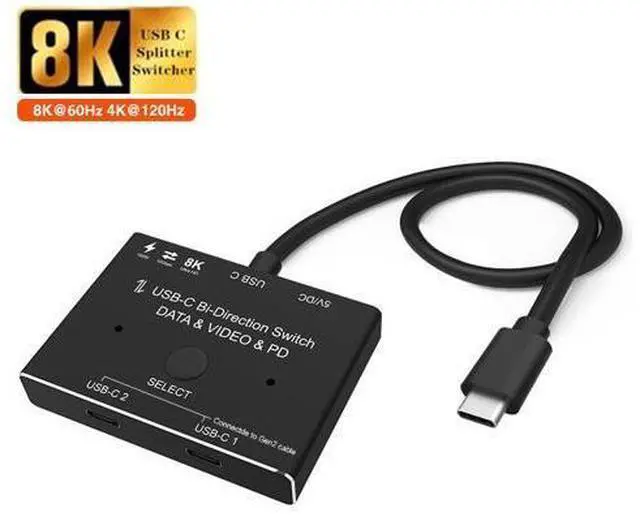

USB-C Splitter Type-C 8K Switch USB 3.1 C Gen 2 Cable for Video Bi-Direction (2 in 1 Out, 1 In 2 Out) 8K@60Hz 4K@120Hz Power Delivery 100W 10Gbps Data Transfer Multi-Function USB C Splitter Converter
Limited time offer, ends 08/31 By Truespan Living
- [IMPORTANT NOTE] Don't connect USB-C/Thunderbolt Docking Station/Hub, otherwise it will flicker or the screen will turn black. Two displays CANNOT display simultaneously. You need to use a standard USB-C USB3.1 version Gen-2 Cable to connect this usb-c switch and use the usb cable to power the switch.; [Max 10Gbps Data Transfer Rate] Supports Max Transmissions Speed 10Gbps(USB3.1 Gen2), Transfer music, movies in seconds. you can charge your mobile phone, tablet and other devices, and you can also transfer data from your computer etc. to your U disk and other devices.; [8K Ultra HD Video Output] You can output max 8K@30Hz 4K@120Hz 1080P@165Hz via our USB-C Switch/Splitter to your USB-C Displays. The maximum resolution of your output depends on your Source device, monitor and cable used.; [Rapid Charging] Supports Max 100w Power Delivery. Press"Select"button to switch between two displays. Do not use too long cable(1.5 meters) for connection between the switcher and your devices.
+
+
Overview
Specs
Reviews

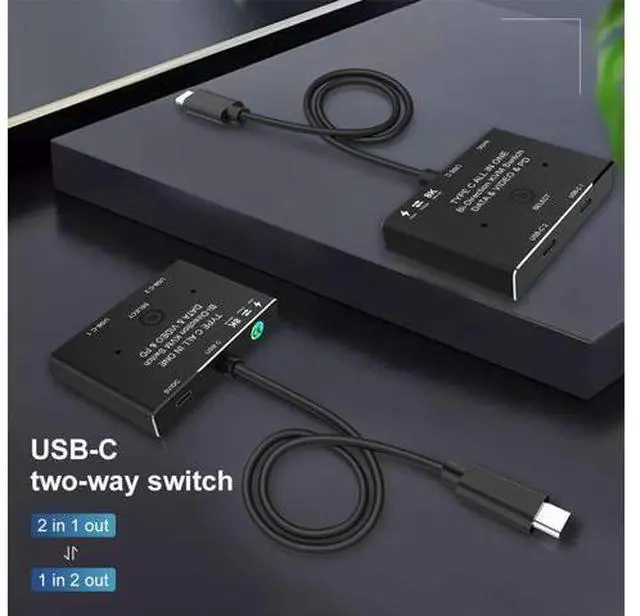

Bi-Direction USB-C Switcher 2 in 1 Out / 1 in 2 Out Support 8K@60Hz Video Operation Instruction In this connection Method, please follow the following instruction to operate:
1: Connect two USB 3.1 Gen 2 Cable from our USB-C Switch 's USB-C 1 and USB-C 2 Port to your

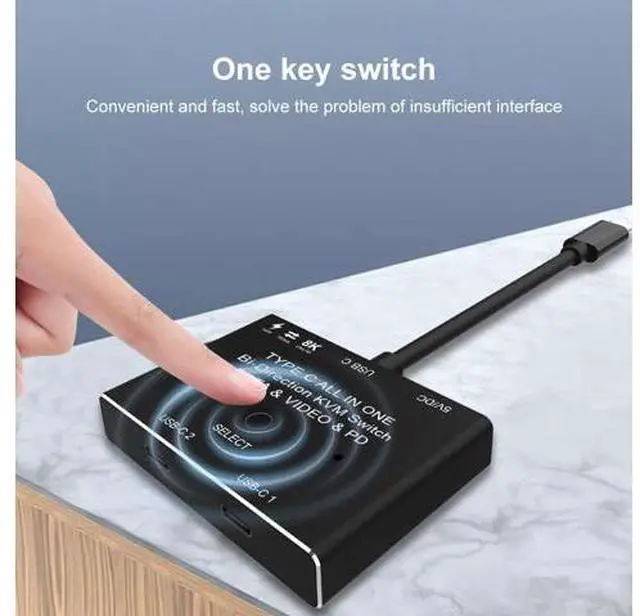

USB-C Source Devices 2: Connect the Fixed USB-C Cable in the USB-C Position to your Monitor's USB-C Port(Please make sure USB-C Port in the Monitor support video transfer and the video function had been opened) 3: Connect the supplied Micro USB to USB Cable to power with the switch(This is necessary Step, or the display can not show anything) 4: Press"Select"Button to switch between two source devices. Function 1: 2 IN 1 Out
1. Connect two sources to the port "USB-C 1" and port "USB-C 2"
2. Connect the display from the Supplied and Fixed USB-C Cable on the switch.
3. Power the switch with the supplied USB to
DC cable 4: Press"Select"Button to switch between two Sources Function 2: 1 In 2 Out 1. Connect the source from the supplied and Fixed USB-C cable on the switch.
2. Connect two displays to the port "USB-C 1" and port "USB-C 2"(Note: two displays cannot work at the same time). In this connection, you can also connect USB-C to HDMI or Displayport Cable from the Switch to relatively Monitor.
3. Power the switch with the supplied USB to
DC cable 4: Press"Select"Button to switch between two Displays
Function 3: Power
Delivery&Data 1: Data Transfer, using USB 3.1 Gen 2 Cable for Max 10Gbps data Transmissions from your Host device
1: Connect two USB 3.1 Gen 2 Cable from our USB-C Switch 's USB-C 1 and USB-C 2 Port to your
USB-C Source Devices 2: Connect the Fixed USB-C Cable in the USB-C Position to your Monitor's USB-C Port(Please make sure USB-C Port in the Monitor support video transfer and the video function had been opened) 3: Connect the supplied Micro USB to USB Cable to power with the switch(This is necessary Step, or the display can not show anything) 4: Press"Select"Button to switch between two source devices. Function 1: 2 IN 1 Out
1. Connect two sources to the port "USB-C 1" and port "USB-C 2"
2. Connect the display from the Supplied and Fixed USB-C Cable on the switch.
3. Power the switch with the supplied USB to
DC cable 4: Press"Select"Button to switch between two Sources Function 2: 1 In 2 Out 1. Connect the source from the supplied and Fixed USB-C cable on the switch.
2. Connect two displays to the port "USB-C 1" and port "USB-C 2"(Note: two displays cannot work at the same time). In this connection, you can also connect USB-C to HDMI or Displayport Cable from the Switch to relatively Monitor.
3. Power the switch with the supplied USB to
DC cable 4: Press"Select"Button to switch between two Displays
Function 3: Power
Delivery&Data 1: Data Transfer, using USB 3.1 Gen 2 Cable for Max 10Gbps data Transmissions from your Host device
