TESmart 400ft HDMI KVM Extender Over TCP/IP Ethernet/Over Single Cat5e/cat6 Cable 1080P with IR Remote (One Sender + One Receiver)

OUT OF STOCK.
Ships from China.
Fees for brokerage and duty included in price. Most customers receive within 7-32 days.
  • Supports 16 pcs of SENDER and supports maximum 253 pcs of RECEIVER (over Router or network Swtich).
  • Extends HDMI, USB and IR over a network switch or a direct connection with Cat5E/6 UTP cable up to 393ft (120m)
  • EDID pass through, compatible with most display devices,support TMDS equalization and enhancement
  • By transmitting keyboard and mouse Datas via LAN, it is easy to control PC or other media players remotely
  • 3 models: 1.One to One Single Connection (One Sender to One Receiver);2.One to Many Multi Connection (One Sender to Many Receivers); 3.Many to Many Multi Connection (Many Senders to Many Receivers)
Overview
Specs
Reviews

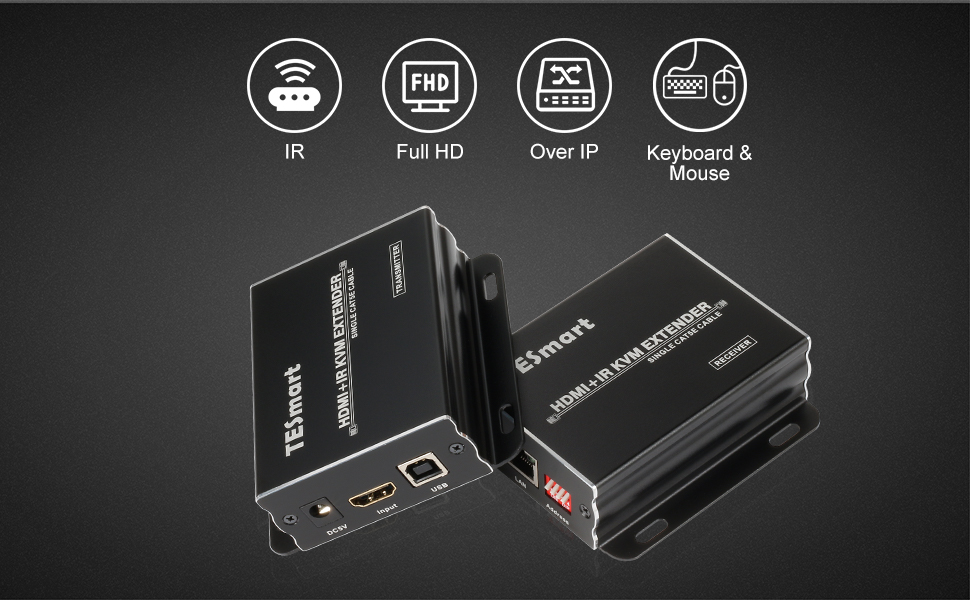

TESmart 400ft HDMI KVM Extender

HDMI KVM Extender Long Distance 400 feet Over CAT5/6 Cable

TESmart 400ft HDMI KVM Extender
Specification

Model: HKE12MMA10

Functionality

Over IP : YES

IR pass through : Yes

Technical

Resolution: 480i/480p/720p/1080i/1080p@60Hz

ESD protection : Human body model - ±8kV (Air-gap discharge)

Mechanical

Chasing material : Aluminum Alloy

Product Dimensions : RX: 93 mm (W) x 90 mm (D) x 30 (H) mm , TX: 93 mm (W) x 90 mm (D) x 30 (H) mm

Item Weight : 450g

TESmart 400ft HDMI KVM Extender
HDMI KVM Extender Long Distance 400 feet Over CAT5/6 Cable
TESmart 400ft HDMI KVM Extender

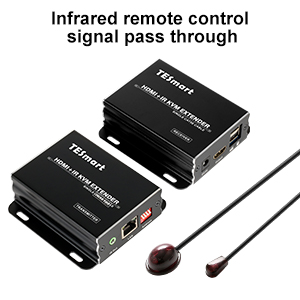

Support pass through infrared remote control signal
  • IR signal supports extension to120 Meters
  • Support fiber-optic converter to extend transmission distance up to 20KM
TESmart 400ft HDMI KVM Extender
It's easy to Connect and Operate
  • By transmitting keyboard and mouse Datas via LAN, it is easy to control PC or other media players remotely
  • EDID pass through, compatible with most display devices
TESmart 400ft HDMI KVM Extender
FAQ

Please Note:

  • Its USB ports is dedicated, only can use for Keyboard & Mouse
  • It takes up a lot of network speed, it requires use 1000M IGMP network switch if you use network switch,we recommend using this extender with a separate network switch/router that supports VLAN
  • Because it comply with TCP/IP protocol, so the image will be compressed
  • In order to make these units to work, all the units need power supply
  • It is normal the video will have delay. The delay based on the length of cable and using condition
  • Networking Cable Suggets CAT5/6 Cable
Three Different Extend Modes
TESmart 400ft HDMI KVM Extender

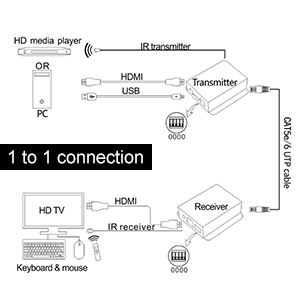

One to One

One Sender to one Receiver over CAT5e/6 or Switch/Router (120 Meter/400ft)

TESmart 400ft HDMI KVM Extender

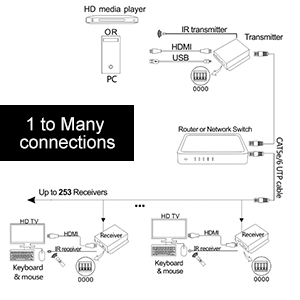

One to Many

One to Many (one Sender to many Receivers) over IP/LAN or Switch/Router

TESmart 400ft HDMI KVM Extender

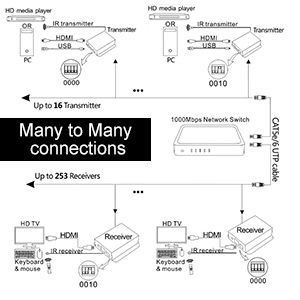

Many to Many

Many to Many (many Sender to many Receivers) over IP/LAN or Switch (up to 16 Sender to 253 Receivers)

TESmart 400ft HDMI KVM Extender

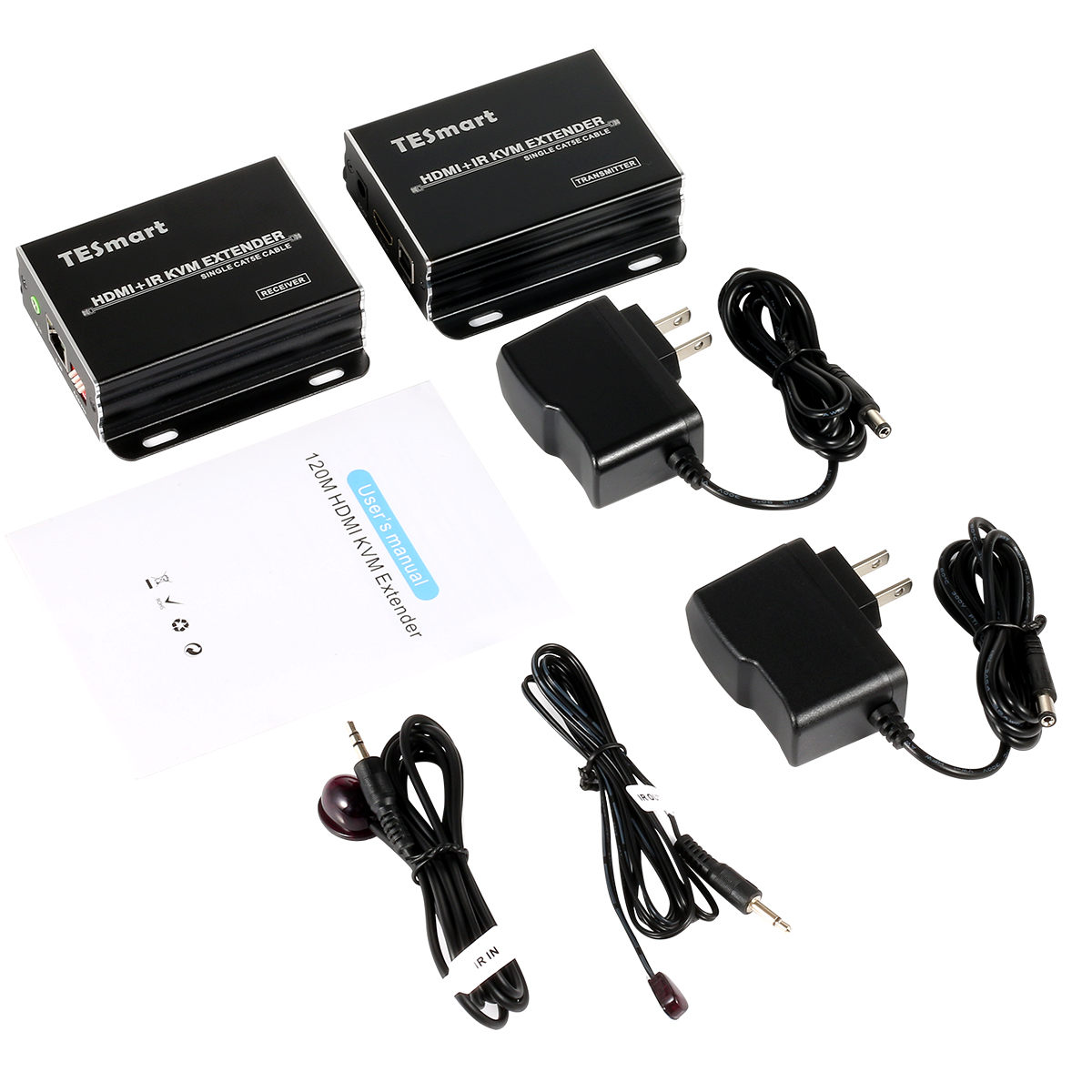

What you would get:

1 x HDMI KVM Extender Sender

1 x HDMI KVM Extender Receiver

1 x IR Sender extension cable

1 x IR Receiver extension cable

2 x DC 5V Power Adapter

1 x English User Manual
