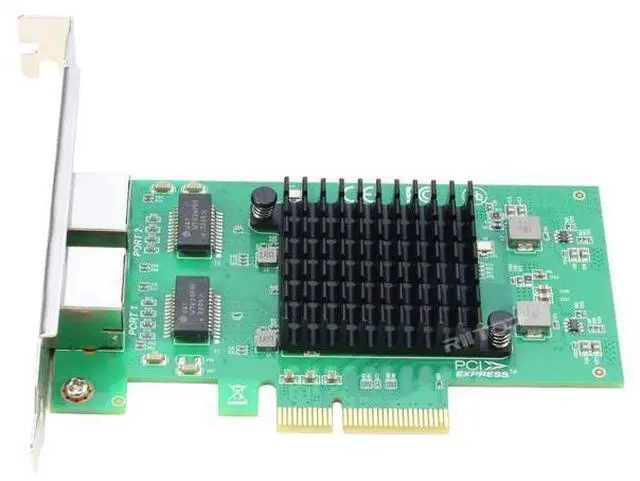

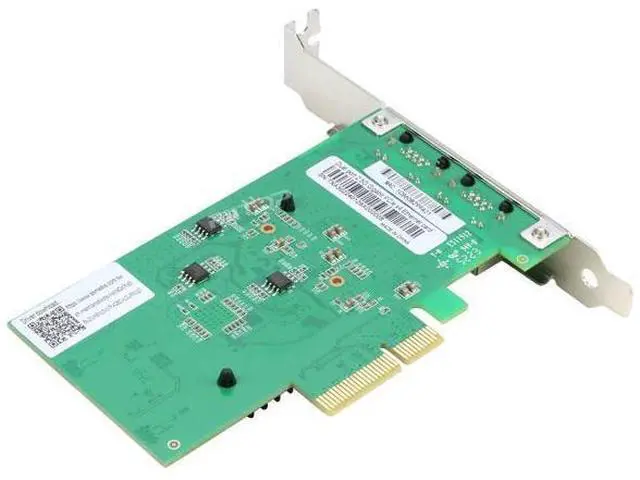

Dual Port 2.5Gb Network Card Adapter with Intel I226 2500/1000/100Mbps PCI Express X4 Gigabit Ethernet NIC Card RJ45 LAN Controller for Windows 10/11 with Low Profile Bracket
Limited time offer, ends 08/01 By NovaStar Tech
- Dual port 2.5Gbps PCIe network card adds two copper Ethernet port to your Server or Desktop computer and provides Multi-Gigabit Ethernet access to your network at four speeds: 2.5bps, 1G, 100Mbps and 10Mbps.; Compliant with IEEE 802.3az and IEEE 802.3u supports the PCIe 2.0 interface. It provides up to a 250% increase in data rate and requires no changes to existing cable infrastructure.
+
+
Overview
Specs
Reviews
Dual Port 2.5G b Network Card Adapter with Intel I226 2500/1000/100Mbps PCI Express Gigabit Ethernet NIC Card RJ45 LAN Controller for Windows 10/11 with Low
Profile Bracket Features: Multi-Gigabit Ethernet connectivity with four network speeds: 2.5G, 1G, 100Mbps, 10Mbps. Compatible with both 2.5GBASE -T and NBASE-T specifications. Support 2.5G bps network speed on CAT5e and CAT6a cabling. Speed and Activity LED indicators. Fully Compliant with IEEE 802.3, IEEE 802.3 u, IEEE 802.3 ab, IEEE 802.3 az and IEEE 802.3 bz standards. Supports IEEE 802.1Q VLAN tagging, and IEEE 802.3 x Fully Duplex Flow Control. Full and half duplex support. PXE network boot support. Transmit/Receive on-chip buffer support. Jumbo frame supports up to 9Kbytes. Complies with Microsoft and Linux platforms.

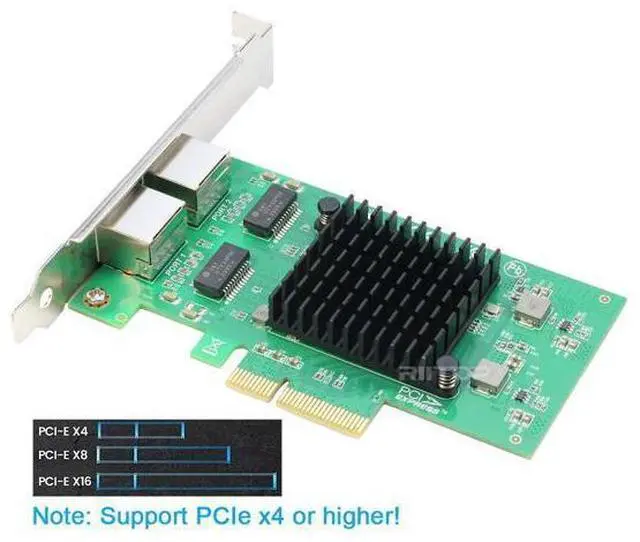

Bus Width: x4 lane PCI Express, operable in x4, x8 and x16 slots.
Card Type: Standard/Low Profile.
Chipset ID: ASMedia ASM1806, Intel I226V
Industry Standards: IEEE 802.3, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 ab, IEEE 802.3 az, IEEE 802.3 bz.
Interface: 2x RJ45.
System and Cable Requirements: PCI Express enabled computer with an available PCI Express x4 slot Gen 2.0 or higher (x8, x16).
OS Compatibility: Windows® 10, 11; Linux Kernel 5.16 or later.

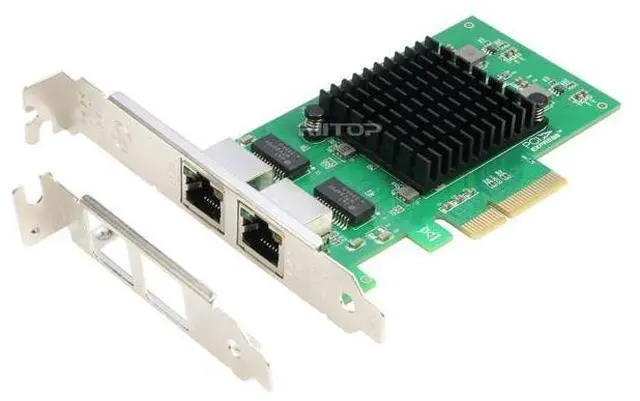

Package Contents: 1x Dual Port 2.5G b Network PCIe Card Adapter. 1x Low Profile Bracket.
Profile Bracket Features: Multi-Gigabit Ethernet connectivity with four network speeds: 2.5G, 1G, 100Mbps, 10Mbps. Compatible with both 2.5GBASE -T and NBASE-T specifications. Support 2.5G bps network speed on CAT5e and CAT6a cabling. Speed and Activity LED indicators. Fully Compliant with IEEE 802.3, IEEE 802.3 u, IEEE 802.3 ab, IEEE 802.3 az and IEEE 802.3 bz standards. Supports IEEE 802.1Q VLAN tagging, and IEEE 802.3 x Fully Duplex Flow Control. Full and half duplex support. PXE network boot support. Transmit/Receive on-chip buffer support. Jumbo frame supports up to 9Kbytes. Complies with Microsoft and Linux platforms.
Specifications
Bus Type: PCI Express 2.0 (5 GT/s).Bus Width: x4 lane PCI Express, operable in x4, x8 and x16 slots.
Card Type: Standard/Low Profile.
Chipset ID: ASMedia ASM1806, Intel I226V
Industry Standards: IEEE 802.3, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 ab, IEEE 802.3 az, IEEE 802.3 bz.
Interface: 2x RJ45.
System and Cable Requirements: PCI Express enabled computer with an available PCI Express x4 slot Gen 2.0 or higher (x8, x16).
OS Compatibility: Windows® 10, 11; Linux Kernel 5.16 or later.
Package Contents: 1x Dual Port 2.5G b Network PCIe Card Adapter. 1x Low Profile Bracket.
