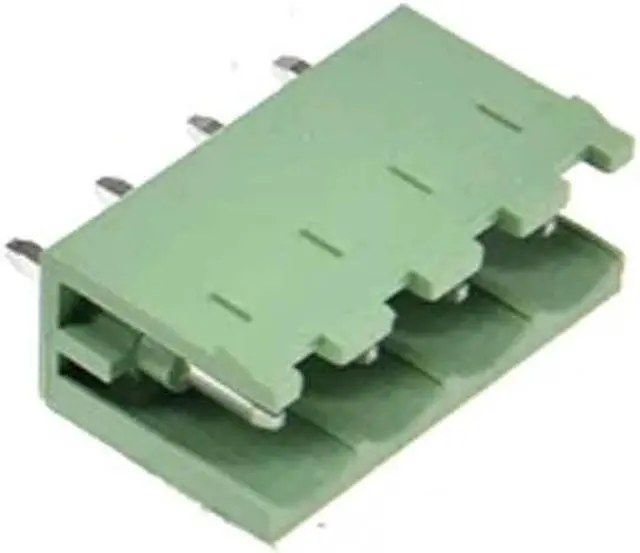

EX2EDGV-5.08-4P - TERM BLOCK 4P PCST HDR SKT 5.08 10A/300V 8MM WIDE OPEN SIDE
- EX2EDGV-5.08-4P - TERM BLOCK 4P PCST HDR SKT 5.08 10A/300V 8MM WIDE OPEN SIDE...
+
+
Overview
Specs
Reviews
Pitch 5.08mm 4 position Screw M2.5 steel Zinc Plated Wire Guard Phosphor bronze NI Plated Contacts Brass Tin Plated Housing PA66 UL94V-0 Electrical: Rated IEC 15A UL 10A @ 300V Withstanding Voltage 2500v/min Wire Range 28-12AWG Mechanical; Temperature Range -40 to +105 degree C Max soldering +150C for 5 Sec Torque 0.4NM (3.5lb.in) Strip Length 7-8mm
THIS PARTS MATES WITH GTRA-4354BB
THIS PARTS MATES WITH GTRA-4354BB
