$9.49
Ships from United States.
Meet Your Seller

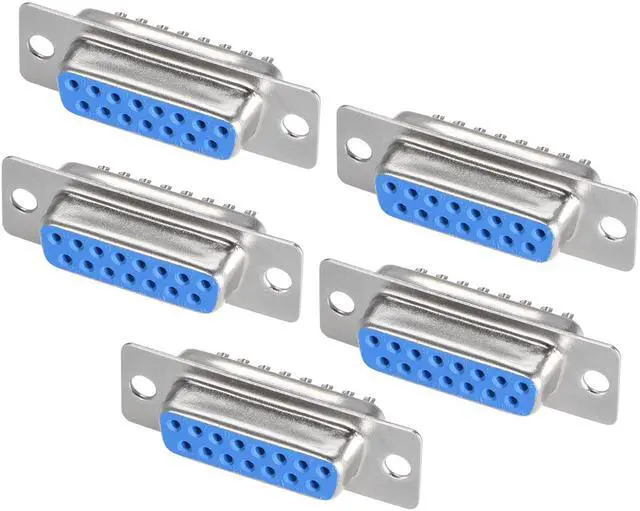

D-sub Connector DB15 Female Socket 15-pin 2-row Port Terminal Breakout for Mechanical Equipment CNC Computers Blue Pack of 5
- Connector Type: Socket(Female); Rating Current: 5A.Number of Positions: 15; Number of Rows: 2;Termination Style: Solder Cup; Mounting Angle: Straight ; Overall Size: 39.2*12.5*14.5mm(L*W*H).
+
+
Overview
Specs
Reviews
D-sub, rectangular D-shaped, d-sub connectors deliver one of the most commonly used and reliable connectivity solutions for the transmission of data.
Product Name: Female D-sub Connector
Connector Type: Socket (Female)
Contact Material: Copper Alloy
Number of Positions: 15
Number of Rows: 2
Rating Current: 5A
Mounting Type: Panel Mount
Termination Style: Solder Cup
Mounting Angle: Straight
Pin Diatance: 2.84 mm
Mounting Diameter: 3.05 mm
Mounting Distance: 33.3 mm
Overall Size: 39.2 * 12.5 * 14.5 mm (L*W*H)
Color: Blue
Features:
Solder type connection between the cable and connector is very easy to connect and creates permanent and extremely durable connections from cable to connector.
This D-sub connector is used in computer serial ports and other widely used computer peripheral parallel ports.
Package Includes:
5 X D-sub Connectors
Specifications
:Product Name: Female D-sub Connector
Connector Type: Socket (Female)
Contact Material: Copper Alloy
Number of Positions: 15
Number of Rows: 2
Rating Current: 5A
Mounting Type: Panel Mount
Termination Style: Solder Cup
Mounting Angle: Straight
Pin Diatance: 2.84 mm
Mounting Diameter: 3.05 mm
Mounting Distance: 33.3 mm
Overall Size: 39.2 * 12.5 * 14.5 mm (L*W*H)
Color: Blue
Features:
Solder type connection between the cable and connector is very easy to connect and creates permanent and extremely durable connections from cable to connector.
This D-sub connector is used in computer serial ports and other widely used computer peripheral parallel ports.
Package Includes:
5 X D-sub Connectors
