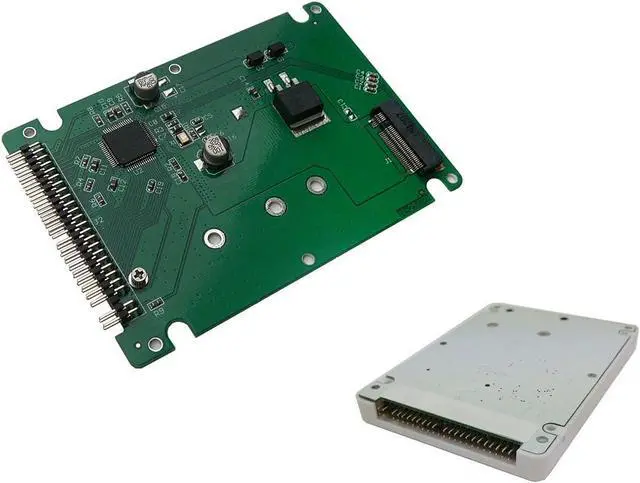

Main image of Adapter Box M2 (M.2 NGFF SATA) to IDE 44 (IDE 2.5") - to The Exact Ribs of a Conventional IDE Disk

Shop All EVESKY Products | Visit Nature Store

Adapter Box M2 (M.2 NGFF SATA) to IDE 44 (IDE 2.5") - to The Exact Ribs of a Conventional IDE Disk

For mounting an M.2 SSD card (B Key or B+M Key) on an IDE 44 connector, as a replacement for the IDE hard drive of a laptop computer.
SATA Revision 2.6 PCIe Mini Card Electromechanical Spec 1.2. For M2 SATA type SSD (not compatible with M2 type PCIe SSDs), with B or B+M key
Case meets SFF-8212 specifications (IDE disk size 2.5 inch).
Supports M2 SSD in the following formats: Type 2230-D2-B-M: 30 mm (L) x 22 mm (W) Type 2242-D2-B-M: 42 mm (L) x 22 mm (W) Type 2260-D2-B-M-M-M: : 2.36 2 mm (L) x 22 mm (W) Type 2280-D2-B-M: 80 mm (L) x 22 mm (W)
Compatible ATA/ATAPI UltraDMA mode 0, 1, 2, 3, 4, 5, 6, 7. Compatible with ATAPI/PIO mode 0, 1, 2, 3, 4

Overview

Specs

Reviews

Features:
Fully compliant with SATA revision 2.6
PCI Express Mini Card Electromechanical Specification 1.2
Fully compliant with SFF-8212 specification for 2.5" Drives with 44-pin Connector
Support NGFF M.2 Socket 2 SSD type 22x30,22x42,22x60,22x80
Support NGFF M.2 SSD with Key B including Key B+M
Support ATA/ATAPI-7 specification.
ATA/ATAPI Ultra DMA Mode 0, 1, 2, 3, 4, 5, 6, 7.
ATA/ATAPI PIO Mode 0, 1, 2, 3, 4.
Operating temperature-Commercial (0C to +70C)
