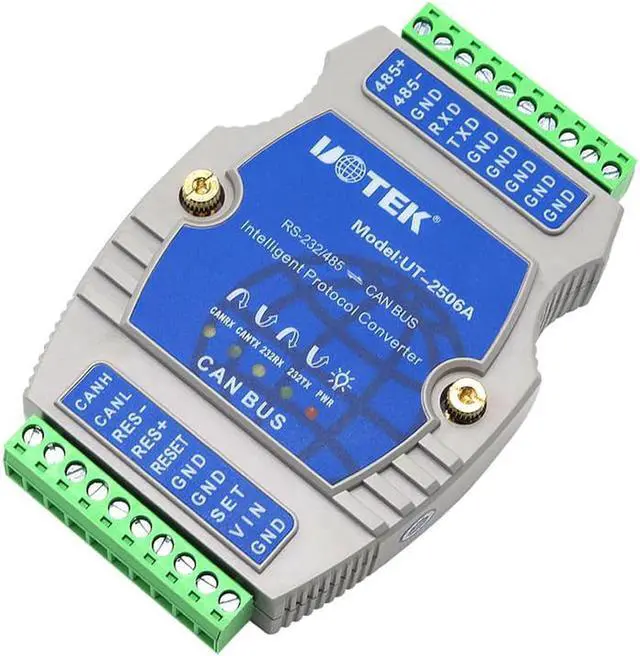

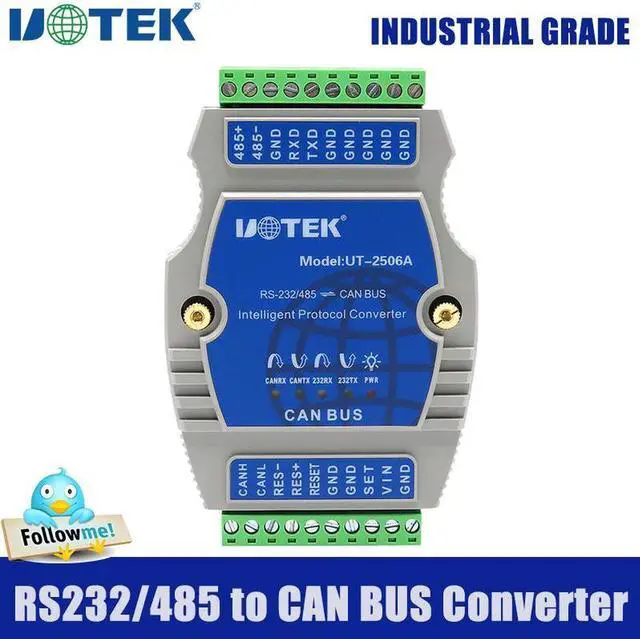

UTEK RS232 RS485 to Canbus Converter with Protocol Industrial Grade RS232 RS485 CAN BUS Adapter Terminal Block Connector Isolation UT-2506A
- This converter is suitable for bidirectional data transmission between CAN Bus and RS-232/485 and supports CAN 2.0 protocol.
- The CAN BUS communication interface supports 5Kbps-1Mbps communication rate. The RS-232/485 communication interface supports 600bps-230Kbps communication rate.
- The adapter provides three data conversion modes: transparent conversion, transparent band identity conversion, and Modbus protocol conversion.

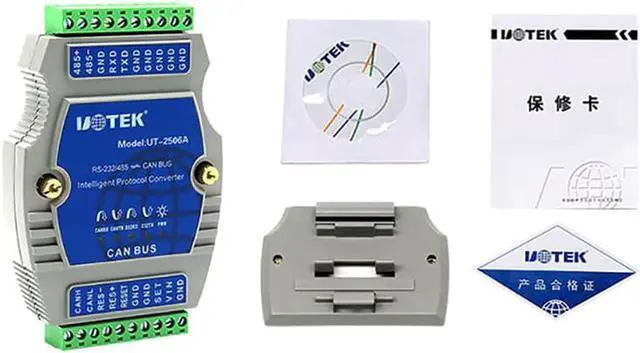

- Converter operating temperature: -40 ~85, industrial standard, also suitable for outdoor extreme weather. The accessories are rail base.
- The CAN interface is isolated from the system, and has the ability to prevent surges. It is widely used in industrial control and data communication systems.
+
+
Overview
Specs
Reviews
UT-2506A is a high performance RS-232/485 to CAN-Bus converter. It supports interconnection between RS-232/485 and CAN-Bus. RS-232/485 baud rate is 1, 200-115, 200bps, and CAN-bus baud rate is 5kbps-1Mbps. The converter supports three data conversion modes: transparent conversion, transparent tape identification conversion and Modbus protocol conversion. This extends the application scope of this converter.
UT-2506A converter provides configuration tools that allow users to set the interface parameters. It is industrial standard design; CAN communication interface and system is isolated; with anti-interference and surge protection ability, it is widely used in industrial control, data communication systems.
Supports bidirectional data transmission between CAN-bus & RS-232/485
Supports CAN 2.0 protocol
1-ch CAN-bus interface, 5Kbps-1Mbps transmission rate1-ch RS-232/485 interface, 600bps-230Kbps transmission rate
Provides 3 data conversion mode: transparent conversion, transparent tape identification conversion, Modbus protocol conversion
Working voltage: 12-36V DC
Working current: less than 150mA@12V
Operating temperature: -40~ 85 Celsius
Storage temperature: -40~ 85 Celsius
Relative Humidity: 5% to 95%(non-condensing)
Storage humidity: 5% to 95%(non-condensing)
Isolated voltage: 1, 000VDC
UT-2506A converter provides configuration tools that allow users to set the interface parameters. It is industrial standard design; CAN communication interface and system is isolated; with anti-interference and surge protection ability, it is widely used in industrial control, data communication systems.
Supports bidirectional data transmission between CAN-bus & RS-232/485
Supports CAN 2.0 protocol
1-ch CAN-bus interface, 5Kbps-1Mbps transmission rate1-ch RS-232/485 interface, 600bps-230Kbps transmission rate
Provides 3 data conversion mode: transparent conversion, transparent tape identification conversion, Modbus protocol conversion
Working voltage: 12-36V DC
Working current: less than 150mA@12V
Operating temperature: -40~ 85 Celsius
Storage temperature: -40~ 85 Celsius
Relative Humidity: 5% to 95%(non-condensing)
Storage humidity: 5% to 95%(non-condensing)
Isolated voltage: 1, 000VDC
