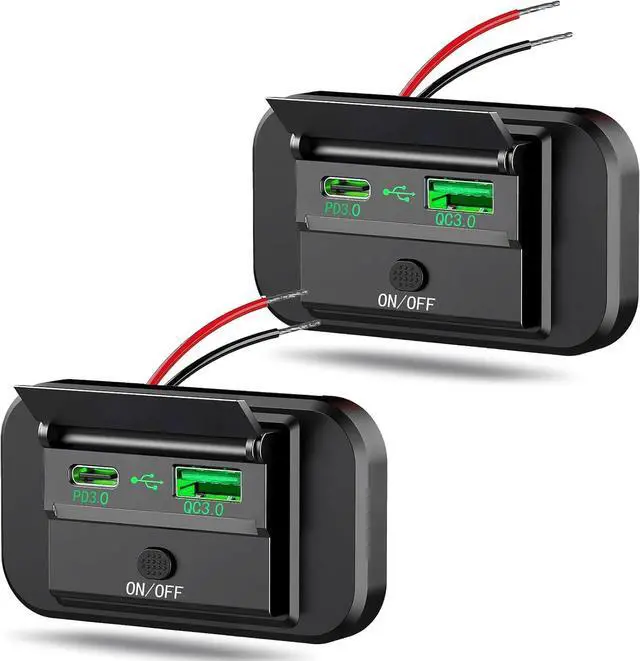

DUAL TYPE-C PD 3.0 & USB QC 3.0 OUTLETS The 12V USB outlet is designed with a USB-C PD 3.0 port and a USB-A QC 3.0 port, USB-A
Output: 5V=3A, 9V=2A, 12V= 1.5A (18W Max), USB-C
Output: 5V=3A, 9V=3A, 12V= 2.5A, 15V=2A, 18V= 1.5A, 20V= 1.5A, 12V=3A (36W Max), Total Power up to 54W, Input

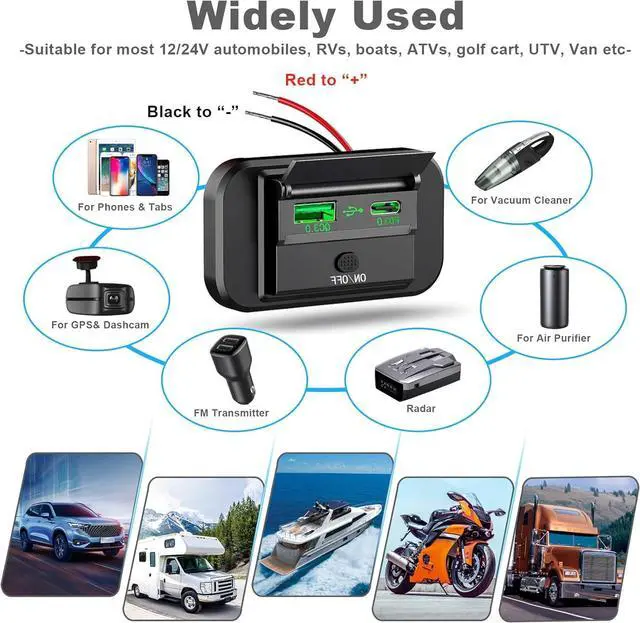

voltage: 12-24V, which can charge all your Android and iOS devices at maximum charging speed. Moreover, it can be applied to cars, motorcycles, buses, RV, boats and so on. Dual PD 3.0 and QC 3.0 USB RV USB outlet are more useful.

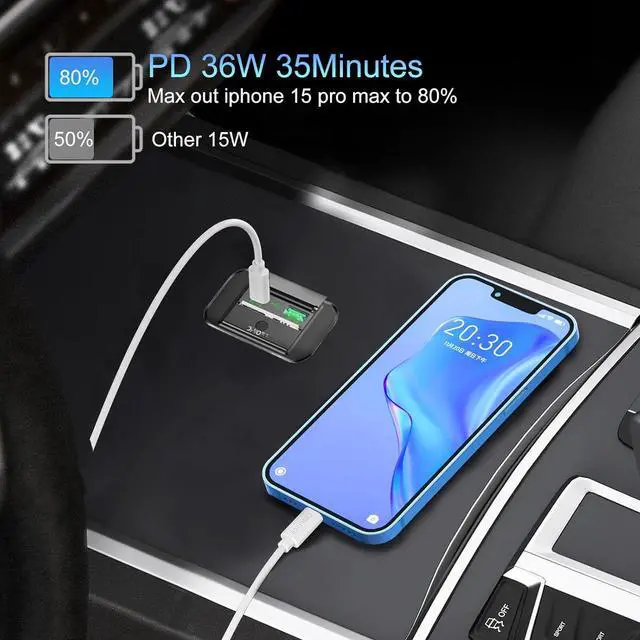

TYPE-C PD 3.0 FAST CHARGING The USB C Port( PD 3.0 Port) deliver 36W power for iPhone 16/15/14/13/12/11/Mini/Pro/Pro Max, iPhone X/XS/XR/8/8 Plus/SE, iPad Pro 12.9 /Air 10.9 / 10.5 / 9.7 /Mini 6/5/4/3/2, AirPods, for Samsung Galaxy Z fold 6/5/4/3/Z FliP 6/5, Galaxy S10+/S9+/S8+, for Samsung Galaxy Tab 12.4 /11/ 10.5 and etc. From 0% to 80% at 4X speed in 30 minutes. (Note: For iPhone series fast charge, you need to use a USB C TO LIGHTNING cable. )
QUICK CHARGE USB 3.0 PORT
The USB-A QC 3.0 port offers a maximum output of 18W, providing a 4x faster charging speed to compatible devices, charge your device to reach 80% in just 35 minutes. It is also completely backwards compatible with all versions of Quick Charge, providing the fastest possible charging for all non-fast charging devices.

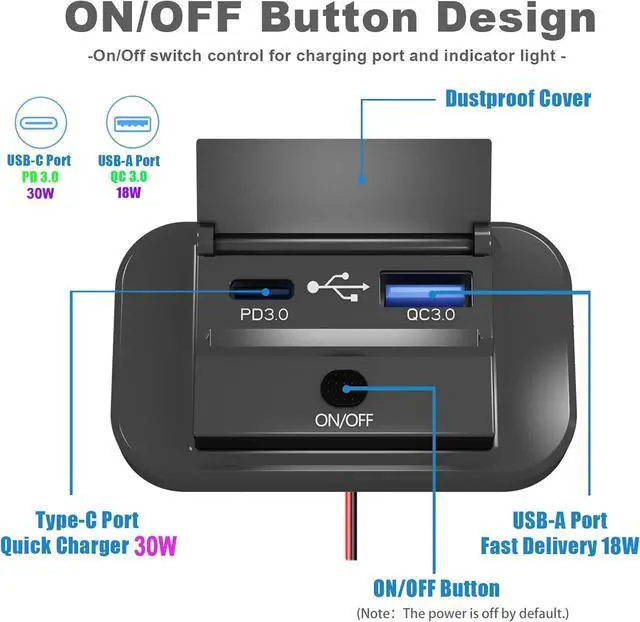

ON/OFF POWER SWITCH & LIGHT CONTROL
The upgraded 12 volt usb outlet is equipped with a anti-slip push-button switch to turn the power on or off at any time. It can effectively prevent the battery from being drained because the power is always on, which helps to prolong the life of the battery, besides it can control the ON/OFF of the blue indicator light. (
Note: Connect power and press the button to start; Disconnect power, reset to off state automatically for safety. )

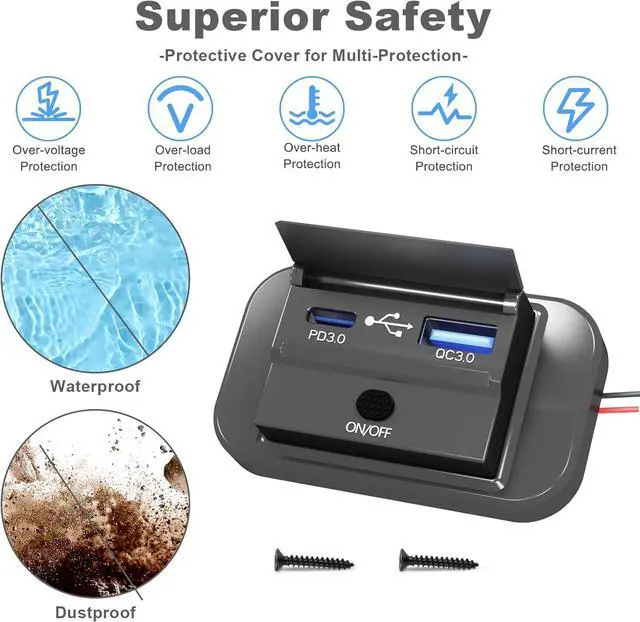

SECURITY CHARGING The 12v USB socket is not only made of nylon housing, which is scratch resistant, but also equipped with flip-top dust cover, effectively protects the 12v USB C outlet against sudden water splashes and dustproof. The built-in smart IC chip protect your device from over-voltage, over-heating, over-load, or short-circuit.

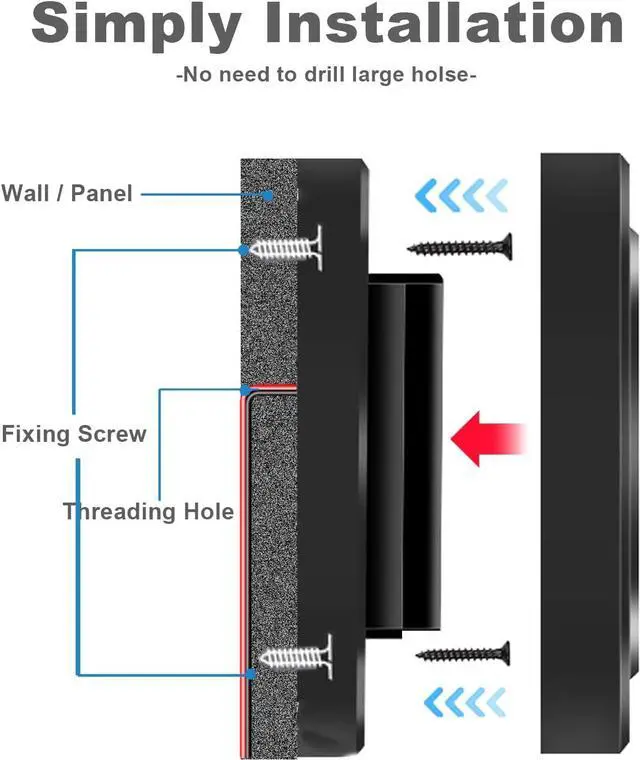

NO NEED TO DRILL LARGE HOLE
Sit's surface mount installation, which can be installed on a flat surface, without cutting a large hole, just a small hole to put the wire in, connect black wire to negative pole, red wire to positive pole. Besides the green light of the 12 volt panel mount usb outlet is always on when power is on, easy to find in dark. (Note: If you think the green led light is kind of bright, just put some black nail polish over the bulb or cover it with black tape to dim it. )
