UGREEN USB C Hubs
 USB C Hub to Displayport |  USB C Hub to Displayport |  Revodok 10Gbps USB C Hub |  USB C Hub |  UGREEN 4K 60Hz USB C Hub |  Revodok 10Gbps USB C Hub |  USBC Hub With Screen Lock | |
|---|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — | — |
Price | — | — | — | — | — | — | — |
Plug & Play | ? | ? | ? | ? | ? | ? | ? |
Display Port(s) | DP (NO HDMI) | DP (NO HDMI) | HDMI | USB C | HDMI | HDMI | HDMI |

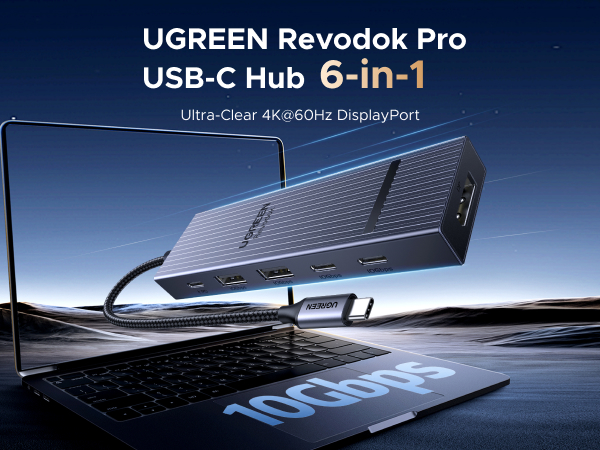

Max Display Resolution | 4K@60Hz | 4K@60Hz | 4K@60Hz | 4K@60Hz | 4K@60Hz | 4K@60Hz | 4K@60Hz |

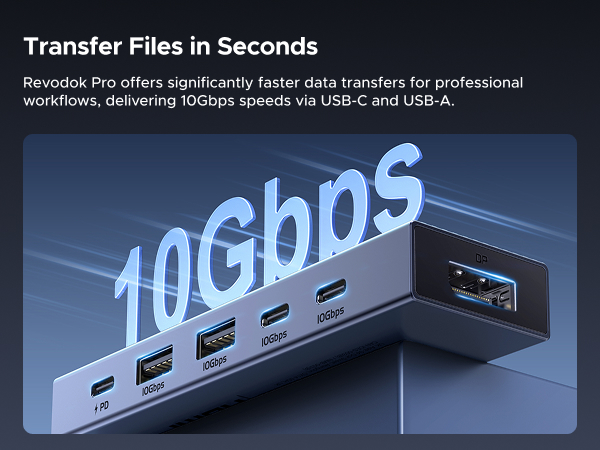

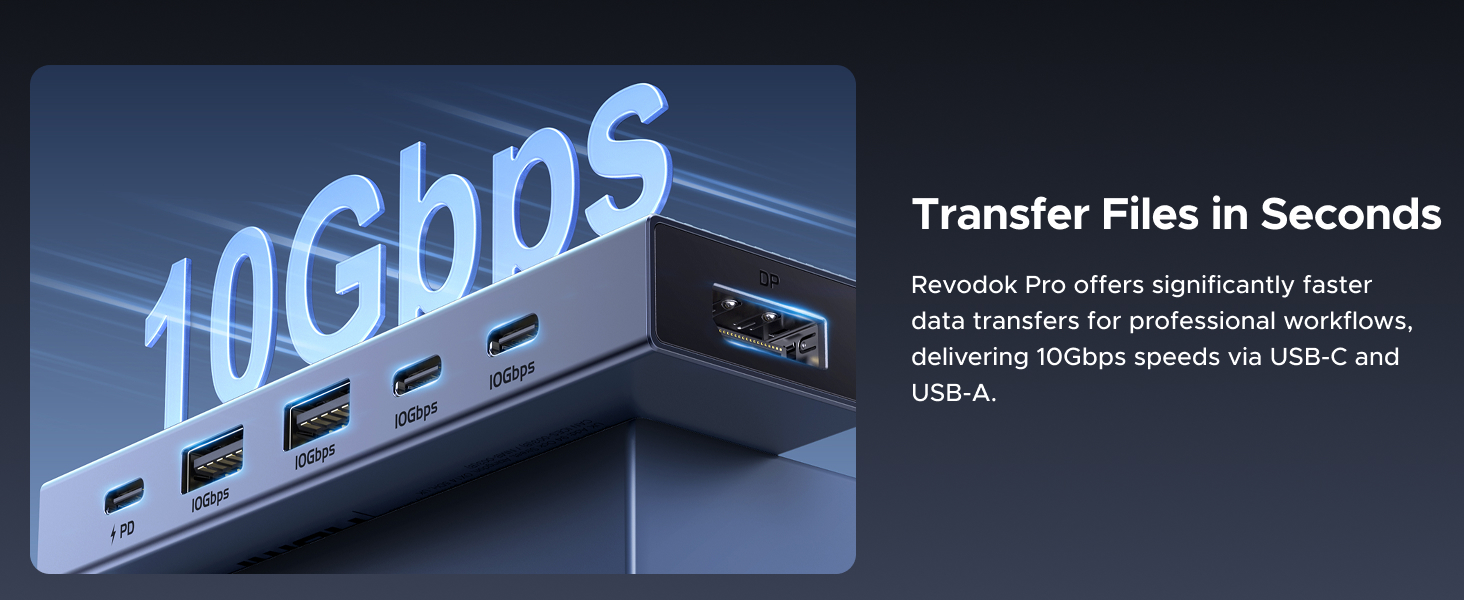

Max Transfer Speed | 10Gbps | 10Gbps | 10Gbps | 10Gbps | 10Gbps | 10Gbps | 10Gbps |

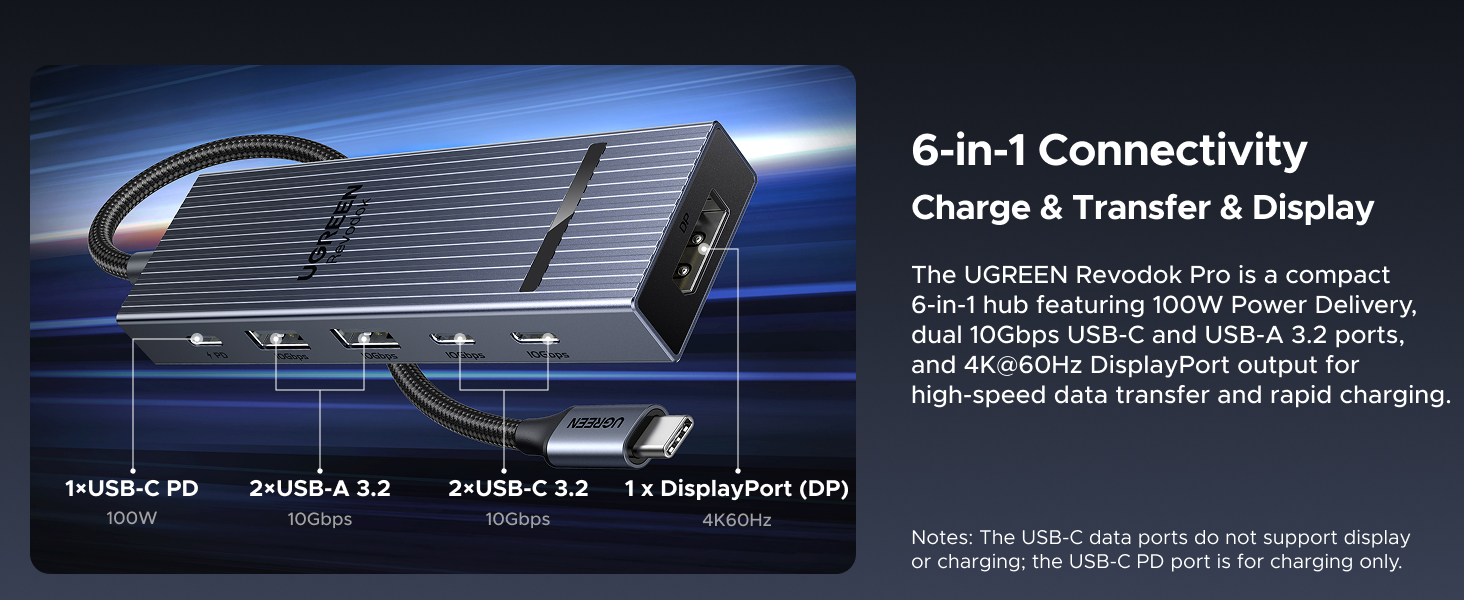

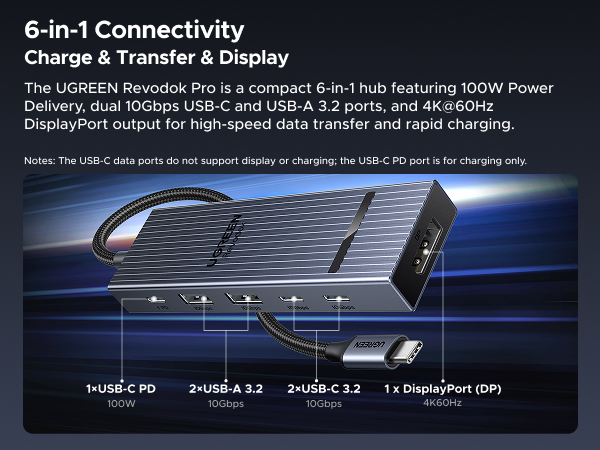

USB Data Ports | 2*USB A+2*USB C | 2*USB A+2*USB C | 2*USB A+2*USB C | 2*USB A+2*USB C | 2*USB A+2*USB C | 2*USB A 3.2+USB C 3.2 | 2*USB A +2*USB C |
Charging Port | PD 100W | PD 100W | PD 100W | PD 100W | PD 100W | PD 100W | PD 100W |
Gigabit Ethernet | × | 1000Mbps | × | × | × | 1000Mbps | ×1000Mbps |
SD/TF Card Reader | ? | ? | ? | ? | ? | ? | ? |
FAQ & Compatibility List (Not a full list)
UGREEN USB C Hubs
USB C Hub to Displayport | USB C Hub to Displayport | Revodok 10Gbps USB C Hub | USB C Hub | UGREEN 4K 60Hz USB C Hub | Revodok 10Gbps USB C Hub | USBC Hub With Screen Lock |
|---|---|---|---|---|---|---|
| Customer Reviews | ||||||
| — | — | — | — | — | — | — |
| Price | ||||||
| — | — | — | — | — | — | — |
| Plug & Play | ||||||
| ? | ? | ? | ? | ? | ? | ? |
| Display Port(s) | ||||||
| DP (NO HDMI) | DP (NO HDMI) | HDMI | USB C | HDMI | HDMI | HDMI |
| Max Display Resolution | ||||||
| 4K@60Hz | 4K@60Hz | 4K@60Hz | 4K@60Hz | 4K@60Hz | 4K@60Hz | 4K@60Hz |
| Max Transfer Speed | ||||||
| 10Gbps | 10Gbps | 10Gbps | 10Gbps | 10Gbps | 10Gbps | 10Gbps |
| USB Data Ports | ||||||
| 2*USB A+2*USB C | 2*USB A+2*USB C | 2*USB A+2*USB C | 2*USB A+2*USB C | 2*USB A+2*USB C | 2*USB A 3.2+USB C 3.2 | 2*USB A +2*USB C |
| Charging Port | ||||||
| PD 100W | PD 100W | PD 100W | PD 100W | PD 100W | PD 100W | PD 100W |
| Gigabit Ethernet | ||||||
| × | 1000Mbps | × | × | × | 1000Mbps | ×1000Mbps |
| SD/TF Card Reader | ||||||
| ? | ? | ? | ? | ? | ? | ? |
FAQ & Compatibility List (Not a full list)
| Q1 | Does this work with HDMI TVs? |
|---|---|
| A1 | No. This model requires a DisplayPort-compatible display. For HDMI TVs, please use an active DP to HDMI cable (not included), since the DP port on the Dock doesn't support DP++ and won't work with a passive DP to HDMI adapter. |
| Q2 | What resolution does the hub support? |
| A2 | The USB-C hub supports max 4K@60Hz through the DP port, and is backward compatible with 4K@30Hz, 2K@120Hz, 1080P@120Hz/60Hz, and 720P, etc. Please kindly note that it does not support 2K@144Hz and 1080P@240Hz. |
| Q3 | What can I do if the monitor does not reach 4K@60hz? |
| A3 | Ensure that the USB-C port on your host device supports PD1.4 (DP Alt mode). If the USB-C port only supports DP1.2, the monitor can only reach max 4k@30Hz. Check if your monitor supports DP 1.4. Try another certified DP 1.4 cable within 6.6ft (sold separately). |

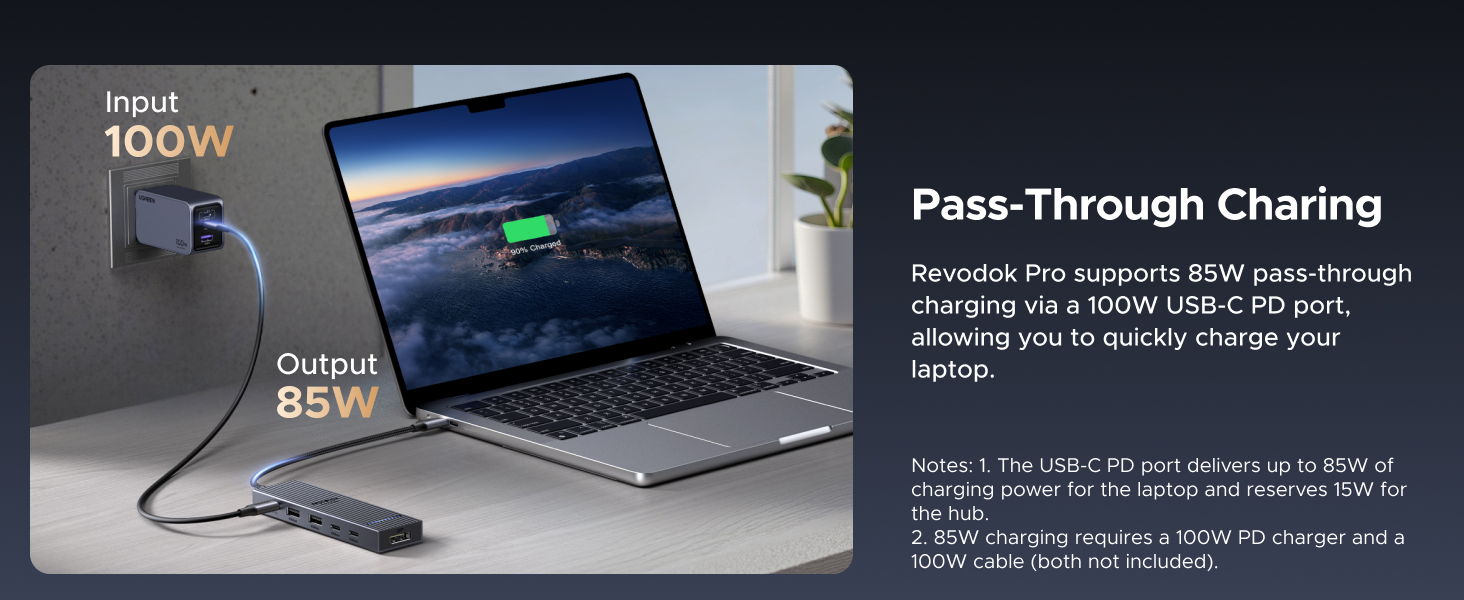

| Q4 | Can this hub output 100W to the laptop? |

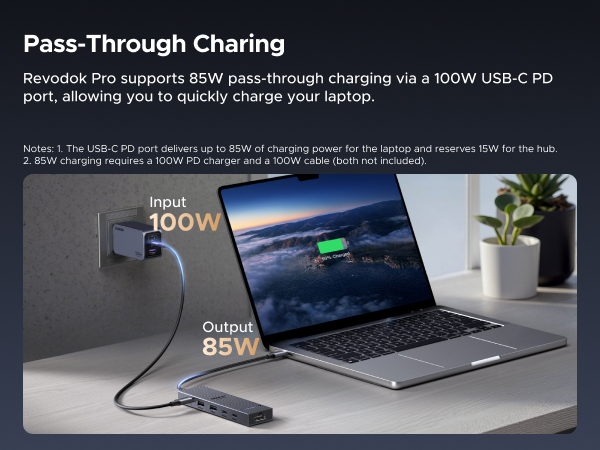

| A4 | Can this hub output 100W to the laptop? Generally, the hub reserves max 15W for its own power consumption. It outputs Max 85W to your laptop with a PD 100W charger and cable (not included) |
| Alienware Monitor | AW3B21DW/ AW3423DW/ AW2721D/ AW5520QF and more; |
| LG Monitor | LG 34WQ73A-B/ 27GL83A-B/ 34GP63A-B/ 27GP850-B and more; |
| Dell Monitor | Dell UP3218K/U2723QE/ S3221QS/ S2722QC/ S2721QS/ S3422DWG and more |
| Asus Monitor | Asus XG32UQ/ VG28UQL1A/ XG27UQR/ PG65UQ/ PG35VQ/ PG32UQX and more; |
| SAMSUNG Monitor | SAMSUNG Odyssey G9/G7/CR; LC27G75TQSNXZA and more; |
