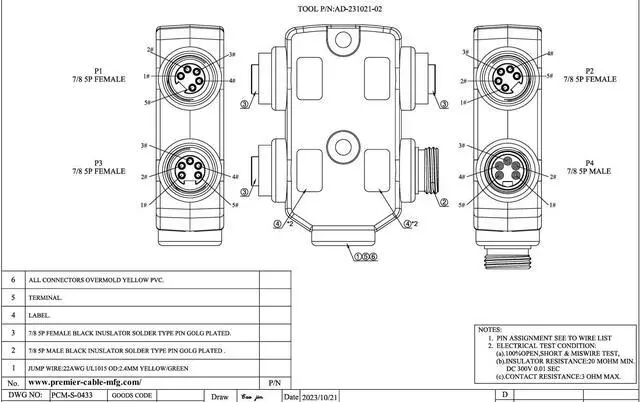

Compatible DN4000 7/8" Mini-Change 5 Pole 4 Ports MPIS Passive Distribution Box IP67 7/8" Male to 3 Female Pass-Thru Parallel-Wired Port Junction Box for DeviceNet CANopen NMEA2000 Profibus Sensor
- Standard 7/8"-16UNF InterfaceUses universal 7/8-inch UNF circular connector, Thread Locking Mechanism, Anti-vibration locking.compatible with a wide range of industrial equipment, suitable for branch connections such as sensors and actuators.; 4 Ports MPlS Junction Box5 Pole 7/8" 1 Male to 3 Female 4 Ports Distribution Box,can be easily installed on the side of a machine or equipment, and the parallel-wired connections simplify wiring tasks.; IP67 WaterProof7/8 inch Threaded Connector with 5 Core Construction, IP67 waterproof rating, for stable connection in harsh environments.; High Performance7/8" Mini-Change Distribution Box, Gold Plated Contact,Nickel Plated Copper Shell,rugged design of inner and outer molding,high and low temperature resistance, oil resistance, corrosion resistance, high-frequency plug-in resistance.; ApplicationMini-Change Parallel-Wired Distribution Box Compatible With DN4000, for DeviceNet, NMEA 2000, CANopen,Profibus,IO-Link and other CAN Bus Protocol Systems.For sensors, actuators,automated production lines, machine control systems, conveyor belts, and testing equipment, providing a stable interface for industrial communication and power supply.; Custom CableWe are a professional cable manufacturer,please contact us for customised requirements.Please contact us if the cable you received is defective or does not work.We will solve the problems properly or send you a new replacement at once.
+
+
Overview
Specs
Reviews
Technical:
Connector: 7/8"-16UNF Mini-Change 4
Ports DeviceNet MPIS Box Gender: 1 Male to 3 Female Number of
Cores: 5
Pin Jump Wire: 18AWG
Voltage: 300V 600V
Current: 9A 12A
Contact: Gold Plated
Shell Material: Nickel Plated Copper
Connector: 7/8"-16UNF Mini-Change 4
Ports DeviceNet MPIS Box Gender: 1 Male to 3 Female Number of
Cores: 5
Pin Jump Wire: 18AWG
Voltage: 300V 600V
Current: 9A 12A
Contact: Gold Plated
Shell Material: Nickel Plated Copper
