CARROFIX European Style Vehicle-end 7 Way Round Pin Outlet to American Style Trailer 4 Way Flat Connector
Limited time offer, ends 10/14 By PixelCore

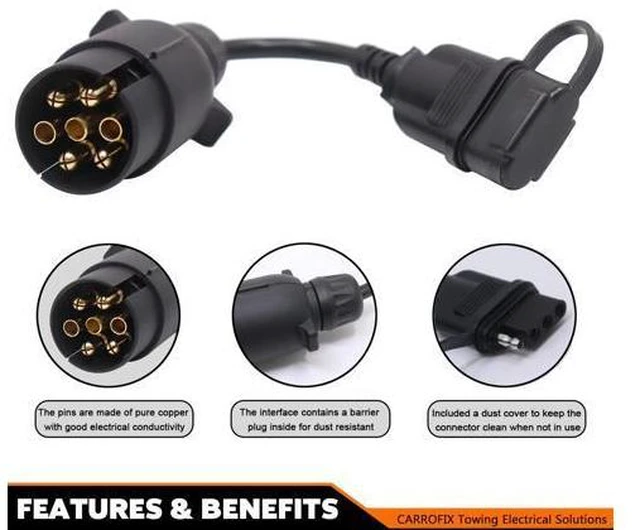

- 1. This electrical adapter is designed for connecting European 7-way style connector on vehicle to US standard 4-way flat on trailer; 2. Fast, easy plug-in installation, minimize the hassle of installing any new wiring inside, no other adapters needed; 3. Included a dust cover on the American style 4-pin plug side to keep your connector clean when not in use; 4. This single-function adapter transfers the power to trailer with L/R turn signals and taillights; 5. Wiring Euro 7-pin vehicle-end connector to trailer with US 4-pin flat trailer wiring
+
+
Overview
Specs
Reviews

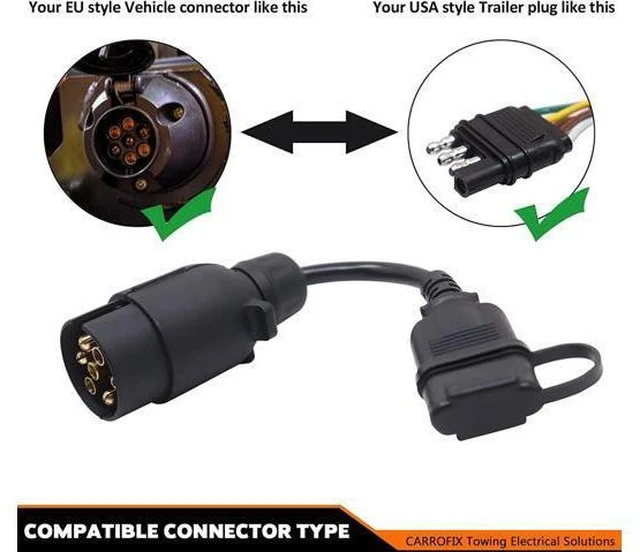

This particular Trailer Connector Adapter made by Carrofix is designed for connecting a 7-way, round-pin, European-style trailer connector on your car to get a 4-pole, flat connector to fit your towing needs. It provides a electrial solution that if you have a European 7 pin outlet on vehicle, and you want to connect to a trailer with a standard US 4 flat pin plug. Transfer the power from European vehicle to

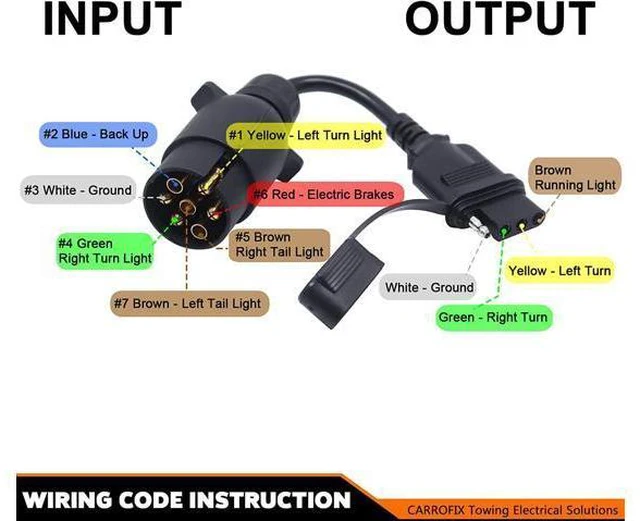

American trailer/camper: Input
(European outlet): Ground, Left Tail, Right Tail, Left Turn, Right Turn
Output (American connector): Ground, Taillight, Left turn, Right turn

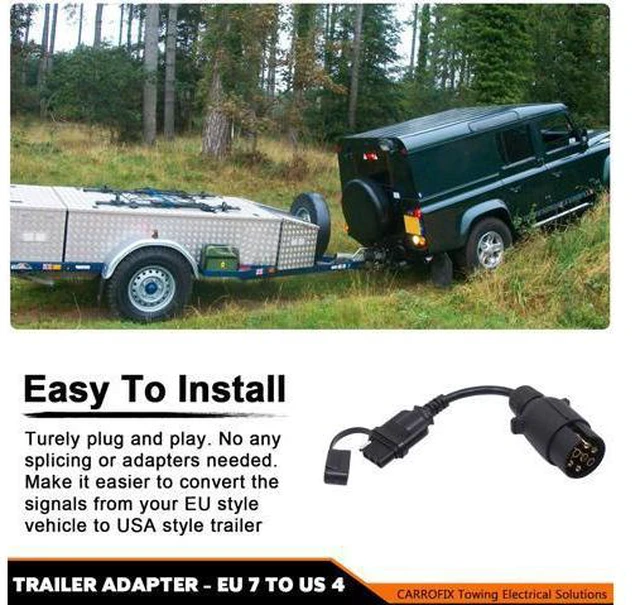

Installation Guide: a) Before connecting the adaper to the vehicle, check that all signals on the car have been turned off. b) Plug the 7 way side to existing 7 way round pin receptacle in the truck end. c) Insert the other side 4-pin into the trailer's 4 pin male plug. d) Check that all connections are safety fastened. e) When exploitation, maintenance of the electrical adapter is not required. * Tips * This wiring adapter would be your great choice
IF: your car has the European 7 pin receptacle for trailer connection, and your trailer has a flat 4 pin connector, and you only need the functions of turn signals and taillight. If you need the brake lights, pleaser refer to item number 9SIB6NNGPR3993
American trailer/camper: Input
(European outlet): Ground, Left Tail, Right Tail, Left Turn, Right Turn
Output (American connector): Ground, Taillight, Left turn, Right turn
Installation Guide: a) Before connecting the adaper to the vehicle, check that all signals on the car have been turned off. b) Plug the 7 way side to existing 7 way round pin receptacle in the truck end. c) Insert the other side 4-pin into the trailer's 4 pin male plug. d) Check that all connections are safety fastened. e) When exploitation, maintenance of the electrical adapter is not required. * Tips * This wiring adapter would be your great choice
IF: your car has the European 7 pin receptacle for trailer connection, and your trailer has a flat 4 pin connector, and you only need the functions of turn signals and taillight. If you need the brake lights, pleaser refer to item number 9SIB6NNGPR3993
