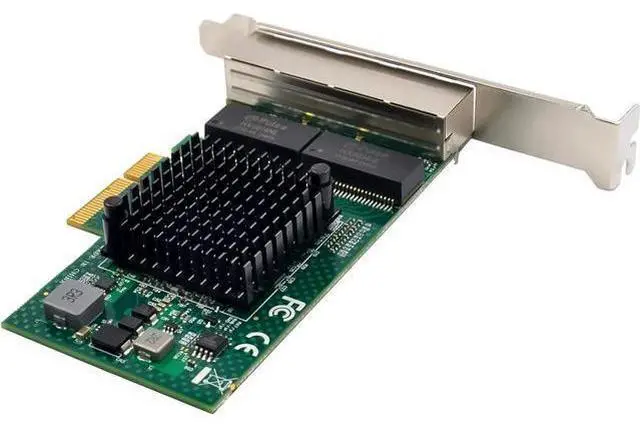

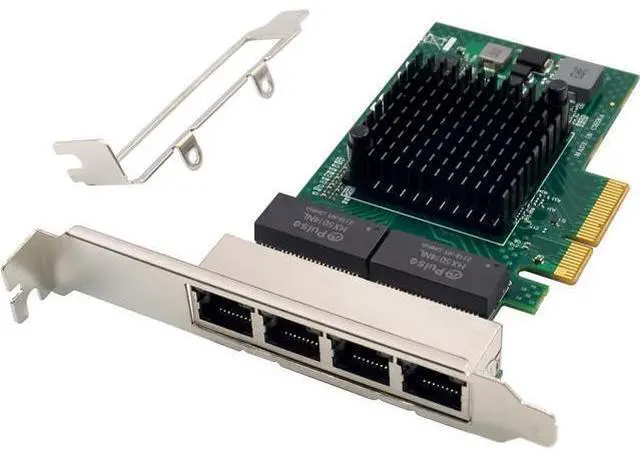

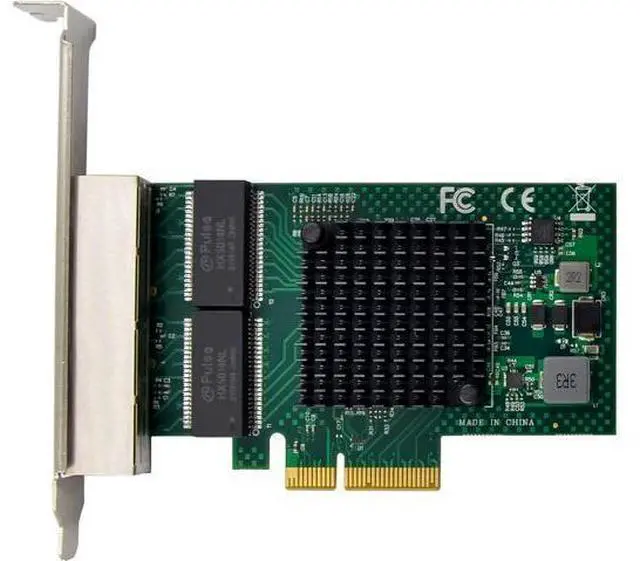

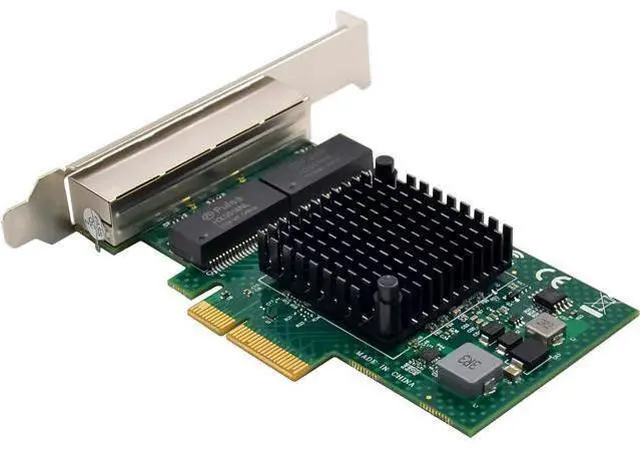

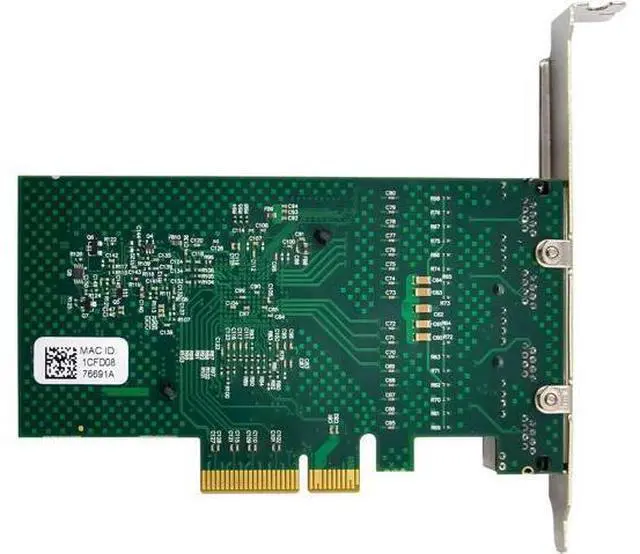

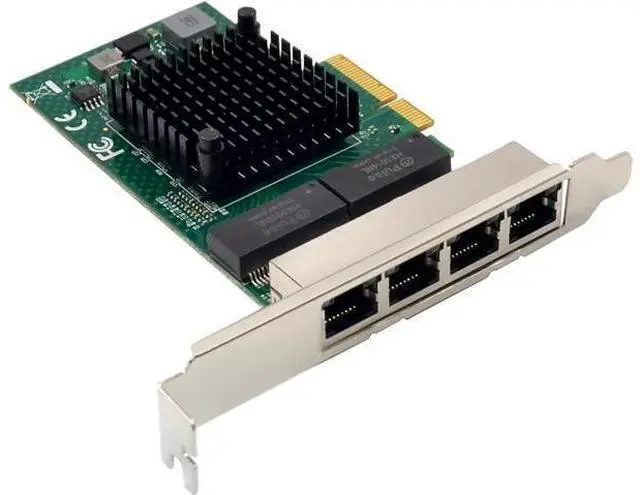

Quad-Port PCIe Gigabit Ethernet Server Adapter with NetXtreme® BCM5719 Chipset PCI Express 1000M Network LAN Card for Windows Server Linux Ubuntu VMware (BCM5719-4P)

Product Description The Broadcom BCM5719-4P is a quad-port 10/100/1000 Mb/s x4 PCI Express (PCIe) Specification v 2.1 Ethernet server adapter that supports the IEEE 802.3 ab standard over Category-5 twisted pair cable. The card supports offload technologies, including Large Send, TCP segmentation, and TCP/UDP/IP checksum, and Receive Side Scaling (RSS) that deliver optimal network throughput, lower host processor utilization and, as a result, improve system overall performance. The server adapter ships in a small form factor that is suitable for both low-profile and standard chassis configurations. Features The BCM5719-4P Ethernet server adapter supports the following features: Bus typex4 PCI Express 2.0 (5 GT/s) Data rate10/100/1000 Mbps per port, per direction MAC controllerBCM5719-4P Quad-port 10/100/1000BASE-T Ethernet server adapter x4 PCI Express v 2.1 at 5 GT/s or 2.5 GT/s Hardware assist for IEEE 1588 and IEEE 802.1AS time synchronization implementations I/O Virtualization supported with 17 receive queues and 16 transmit queues per port Full line-rate performance across all ports Broad OS and hypervisor support PXE support Support for VMware NetQueue and Microsoft VMQ Link aggregation and automatic load-balancing Wake-on-LAN support MSI and MSI-X support IPv4 and IPv6 offloads TCP, UDP, and IP checksum offloads Large Send Offload (LSO) TCP Segmentation Offload (TSO) ACPI v 2.0 SMBus 2.0 IEEE 802.3 ab 1000BASE-T IEEE 802.3 u 100BASE-TX IEEE 802.3 i 10BASE-T IEEE 802.1 qVLAN tagging support IEEE 802.3 xFlow control IEEE 802.3 azEEE Receive Side Scaling (RSS) Transmit Side Scaling (TSS) VLAN support with VLAN tagging Jumbo frame support for frames larger than 1500 Bytes Broadcom Advanced Control Suite (BACS) management application iSCSI remote boot support OS Support MicrosoftWindows Server 2008, 2008 R2, and 2012, all editions Linux Red Hat Enterprise Linux (RHEL) 5.9 / 5.8, 6.4 / 6.3 Novell SUSE Linux Enterprise Server (SLES) 10 SP4/SP3, 11 U3/U2 VMwarevSphere 5.

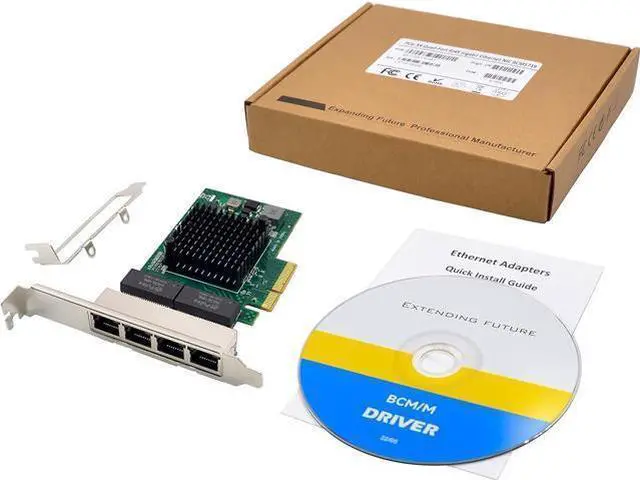

x CitrixXenServer 6.1 Package contents 1xPCIe 1G LAN Card 1x Low profile Bracket 1xManual 1xCD Driver
