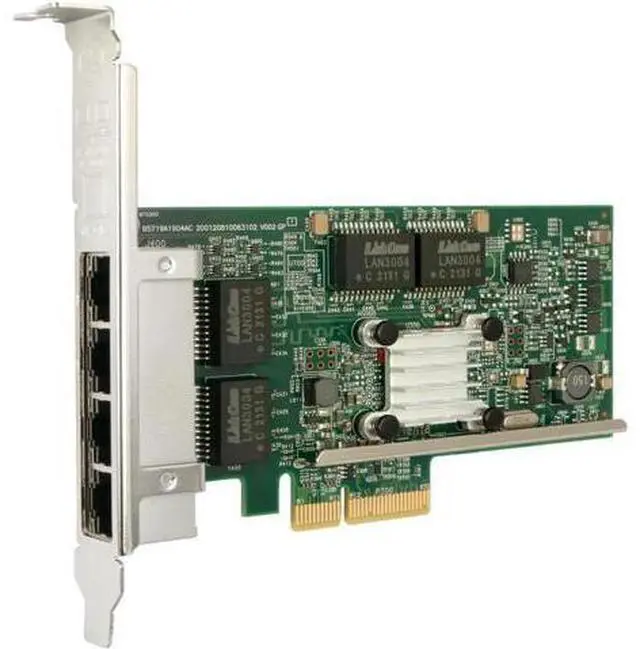

NetXtreme Quad-Port 1G PCIe Ethernet NIC,BCM5719-4P - 4 x 1GbE PCIe NIC

BCM5719-4P - 4 x 1GbE PCIe NIC High-Performance, Feature-Rich Quad-Port 1G PCIe Ethernet NIC Designed for today's enterprise and data center environments, 1G Ethernet Adapters are the ideal solution for multicore servers, delivering full line-rate throughput across all ports. The BCM5719 PCIe NIC is a 13th-generation 10/100/1000BASE-T and 10/100/1000BASE-X Ethernet LAN controller solution for high-performance server and networking applications. The host interface supports a separate PCI Express function for each LAN interface. The BCM5719 includes I/O Virtualization (IOV) features such as 17 receive and 16 transmit queues, and 17 MSI-X vectors with flexible vector-to-queue association.

These IOV features enable the BCM5719 to support VMWare® NetQueue and Microsoft® VMQ technologies. The BCM5719 includes a comprehensive set of hardware features that the system may use to implement IEEE 1588 or IEEE 802.1AS -based time synchronization. These hardware features include a high-precision clock, timestamp registers for receive/transmit packets, and programmable trigger inputs and watchdog outputs. Features Energy Efficient Ethernet compliant with IEEE Std 802.3 az-2010 IEEE 802.3 ap Clause 73 auto-negotiation Quad 10/100/1000BASE-T full-duplex/half-duplex MACs Virtualization support with VMware NetQueue and Microsoft VMQ Wake-on-LAN support Energy Efficient Ethernet (EEE) Applications Cloud and Web 2.0 data center servers Enterprise data center servers Private Cloud Machine Learning (ML) clusters High-Performance Computing (HPC) clusters Multi-node container platforms NVMe storage disaggregation (NVMe-oF) Database servers
