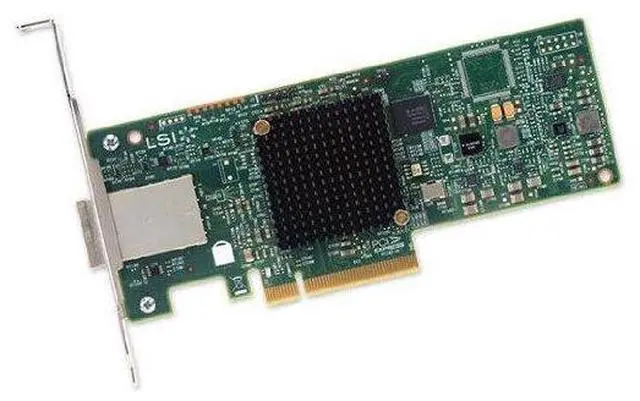

Logic SAS 9300-8e SGL LSI00343

Controller Type: SAS
Controller;
Interface: PCI Express 3.0 x8; Mfr
Part Number: LSI00343;
Features: Eight ports of 12Gb/s SAS + SATA ports Eight lanes of PCI Express 3.0 Low-profile form factor Mini-SAS HD connectors LSI SAS 3008 12Gb/s SAS+SATA controller Supports SSDs HDDs and tape drives Provides connectivity in a low-profile form factor 8 lanes of PCI Express 3.0 provides fast signaling for high bandwidth applications High performance with 12Gb/s SAS data transfer rates; Eight ports of 12Gb/s SAS + SATA ports; Eight lanes of PCI Express 3.0; Low-profile form factor; Mini-SAS HD connectors; LSI SAS 3008 12Gb/s SAS+SATA controller; Supports SSDs HDDs and tape drives; Provides connectivity in a low-profile form factor; 8 lanes of PCI Express 3.0 provides fast signaling for high bandwidth applications; High performance with 12Gb/s SAS data transfer rates;
Connectors: 8x Mini-SAS HD SFF8644 External Connectors;
Device Support: 1024 Non-RAID devices;
Host Bus Type: PCI-Express 3.0 x8;
PCI Data Burst Transfer Rates: Half Duplex x8 PCIe 3.0 8000 MB/s;
Storage Connectivity/Data Transfer Rates: 12Gb/s SAS 3.0 Compliant;
SAS Bandwidth: Half Duplex (x4 wide bus) 4800 MB/s;
Port Configurations: 8 ea x1 ports (individual drives) 2 ea x4 wide port;
I/O Controller: LSISAS3008 Fusion MPT 2.5;
Brackets: Full Height and low profile vented;
Cable Support: Passive Copper Active Optical;
Operating Voltage: +12V +/-8%; 3.3V +/-9%;
PCI Power (Nominal): 14.5W;
MTBF: > 2800000 Hours;
