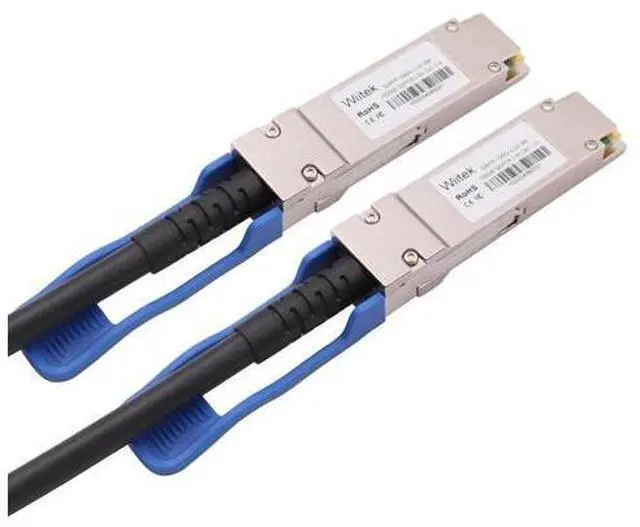

Wiitek 100GbE QSFP28 DAC Twinax Cable, 0.5 Meter 100GBASE-CR Passive Copper Cable, Compatible for Mellanox MCP1600-C0005, with Blue Pull Tab

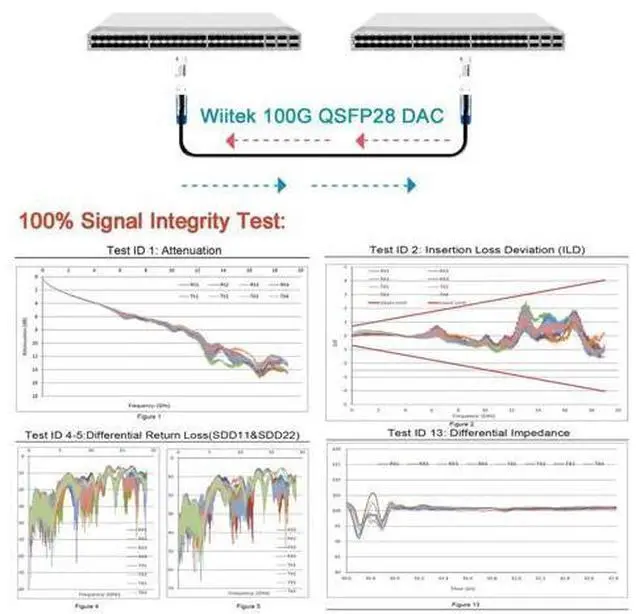

- ETH 100GbE QSFP28 Direct Attach Copper Cable, Passive, 30AWG, 0.5 meter length, Blue Pull Tab;; For Mellanox MCP1600-C0005 Compatible, establish a 100-Gigabit link between QSFP-100G ports of switches within racks and across adjacent racks;; Benefits: Cost-effective, Lowest Power Consumption, Lowest EMI Consumption, Optimized design for Signal Integrity;; Compliant with IEEE 802.3, SFF-8665, and QSFP28 MSA, Operating temperature: 0~70, Single 3.3V power supply, RoHS compliant;; Antistatic-bag Packaging, 3 Years Product Warranty and lifelong Technical Support, Wiitek is a manufacturer of DAC AOC Cables, contact us freely.
+
+
Overview
Specs
Reviews
Product Description100G QSFP28 Passive Direct Attach Copper Twinax Cable provides a cost-effective way to establish a 100-Gigabit link betweenQSFP-100G ports of switches within racks and across adjacent racks. This Direct Attach Copper is compliant with IEEE 802.3, SFF-8665, and QSFP28 MSA. Features Up to 28.3125G bps data rate per channel Up to 5 meter transmission Hot-pluggable 38-PIN Footprint Improved Pluggable Form Factor (IPF), compliant for enhanced EMI/EMC Compatible to IEEE 802.3, SFF-8665, and QSFP28 MSA Single 3.3V supply voltage
Temperature Range: 0~ 70 C, RoHS CompatibleApplication 100G Ethernet
Temperature Range: 0~ 70 C, RoHS CompatibleApplication 100G Ethernet
