FR6-2RS Flanged Ball Bearing 3/8"x 7/8"x 9/32" Sealed Chrome Steel Miniature Ball Bearings 5pcs

In stock.
Ships from United States.
Fees for brokerage and duty included in price. Most customers receive within 6-31 days.

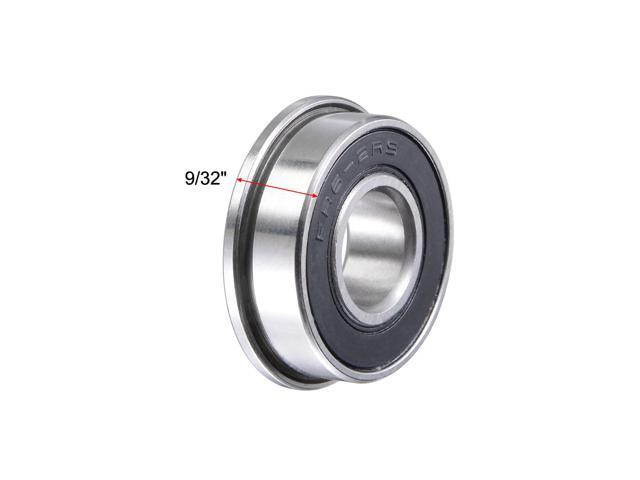

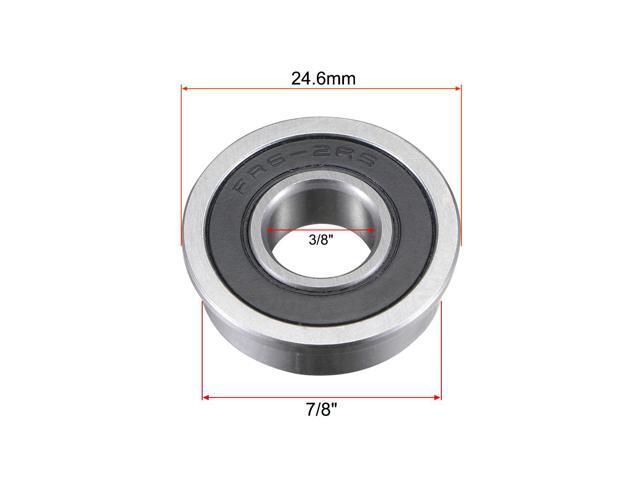

  • [SIZE] - FR6-2RS ABEC1 bearing (I.D.=3/8", O.D.=7/8", Thickness=9/32", Flange Dia:24.6mm).
  • [DURABLE] - Chrome Steel (GCr15) races offer high hardness and great wear resistance, thus extend bearings' service life.
  • [LOAD & SPEED] - Dynamic load rating of 637N and static load rating of 256N. The limiting speed is 32000 RPM under grease lubricating.
  • [EASY TO MAINTAIN] - Shields on BOTH SIDES to keep lubricant in. Z1 noise level for most general use.
  • [APPLICATION] - Commonly used for glider/rocker arm, wheel of the cart, lawnmower, printers, fax machines, monitors, toys, power tools, and other homemade projects.
Overview
Reviews
NOTE

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

Description:

  • Single-row, pre-lubricated, normal accuracy.
  • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.

Selection Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced NBR (oil- and liquid-resistant). Lower limit speed than Shield Bearings.

KEY_TAB

Specification:

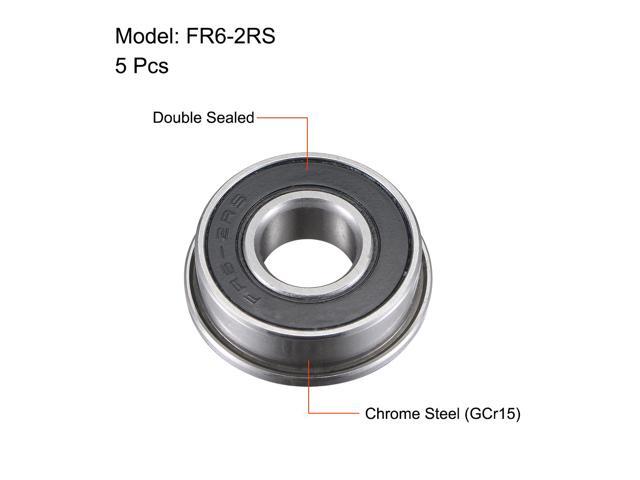

Model: FR6-2RSShielded Type: Double SealedInner Race/Outer Race Material: Chrome Steel (GCr15)Cage Material: Stamping SteelInner Diameter (d): 3/8"Outer Diameter (D): 7/8"Thickness (B): 9/32"Flange Dia.: 24.6mmFlange Thickness: 1.6mmAccuracy Class: P0 (ABEC1)Noise Level: Z1Number of Pack: 5 Pcs
