4K USB 3.0 Video Game Capture Card for Live Stream Broadcast Box Game Capture Box

4K USB 3.0 Video Game Capture Card for Live Stream Broadcast Box Game Capture BoxFeatures:

No need to install drivers, it is real PnP.

Compatible with for Windows, Linux, OS X operating system.

USB3.0, speed 300-350MB/s, compatible with USB 2.0.

The video and audio process is done by the dongle and does not occupy the CPU.

It can automatically detect the input video format and automatically adjust the set output size and frame rate.

Input and output video signals up to 1080p / 60 Hz.

It is compatible with UVC video capture and YUV 422 video output.

Specification:

Color: Blue, Grey (optional)

Material: Plastic

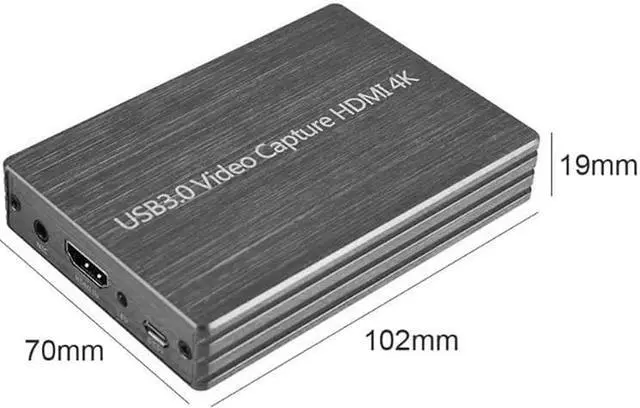

Item Size: 103 * 72 * 21mm

Package Size: 215 * 150 * 55mm

Weight: 130g

Host interface:

USB3.0: 300-350MB/s

USB2.0: 40MB/s

Input Interface: HDMI

Input format: 480i, 480p, 576i, 576p, 720p50, 720p60, 1080i50, 1080i60, 1080P24/ 25/30 /60

Supported resolutions: 640x480, 720x480, 720x576, 768x576, 800x600, 1024x768, 1280x720, 1280x800, 1280x960, 1280x1024, 1368x768, 1440, 1600x1200, 1680x1050, 1920x1080, 1920x1200, 640x360, 856x480, 960x540, 1024x576

Frame rate: 25/29.97/30/50/59.94/60fps

Power consumption: 2.5W

Working temperature: 0°C ~ 50°C

Storage temperature: -20°C ~ 70°C

Storage humidity: 5%-90%

Package List:

1 * HDMI to USB 3.0 Video Capture Card

1 * USB power cable

1 * USB3.0 cable

1 * HDMI cable

1 * User manual
