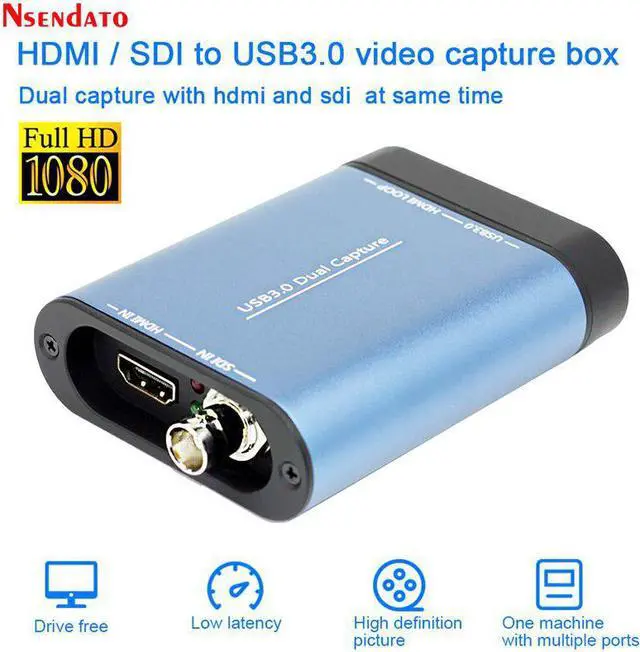

USB3.0 60FPS DUAL SDI HDMI USB3.0 Video Capture Grabber Game Live Streaming Broadcast Recording Box for OBS vMix Wirecast Xsplit

USB3.0 60FPS DUAL SDI HDMI USB3.0 Video Capture Grabber Game Live Streaming Broadcast Recording Box for OBS vMix Wirecast Xsplit

Features:

1. Connect multiple dongles to one machine

2. Enable the up/down conversion of video resolution, frame rate and audio sampling rate

3. Support brightness, contrast, hue, saturation, and other screen adjustment functions

4. The HDMI video capture meets UVC standard, support YUV 4:2:2 (YUY2) or RGB 4:4:4 (RGB24) video output

5. The HDMI video capture meets UAC standard and 48KHz PCM stereo audio output

6.  video processing engine can be updated via firmware without changing the hardware.

7. Automatically detect and de-interlace signals

8. Reliable and Stable: 64MB DDR2 Onboard memory, it can effectively conduct video frame buffer and USB transfer flow control to avoid interruption or error images when the USB transmission bandwidth is occupied.

Pass through 7x24h continuous high load tests in high and low temperatures (0-50 degrees)

9. Easy to Use: No need to install drivers in Windows, Linux, and OS X, real plug and play.

Compatibility:

1. Compatible with various USB 3.0 chipsets (, Renesas, ASMedia, Fresco Logic), compatible with expended USB 3.0 via PCIe Gen1.1 x1

2. Compatible with USB 2.0

3. Compatible operating systems: Windows (7, 8, 8.1), Linux (kernel version 2.6.38 and above), OS X (10.8 and above)

4. Support APIs, such as Windows: DirectShow, DirectSound, Linux: V4L2, ALSA, OS X: QuickTime

Excellent Video Processing:

1. Support up to 1920x1200p60 (CVT-RB) Video Input

2. Video output support up to 1920x1200p60 in YUY2

Specifications:

Standard

Pacakge:
