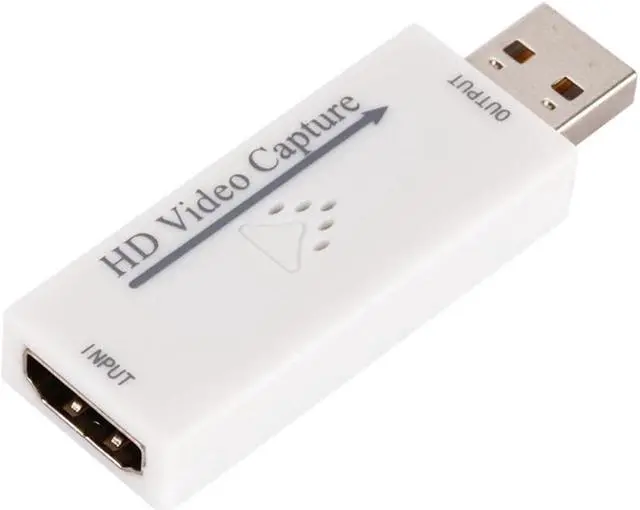

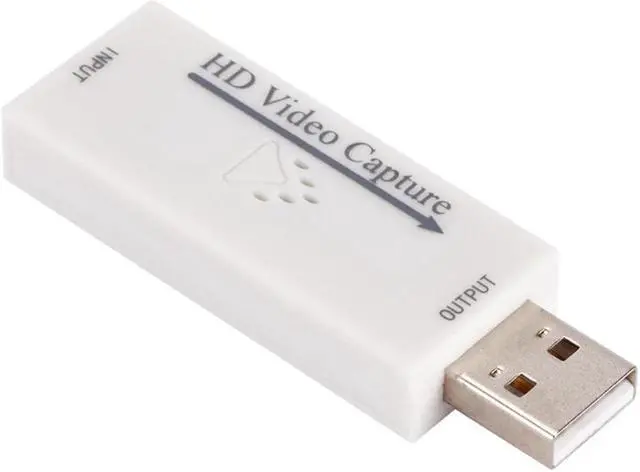

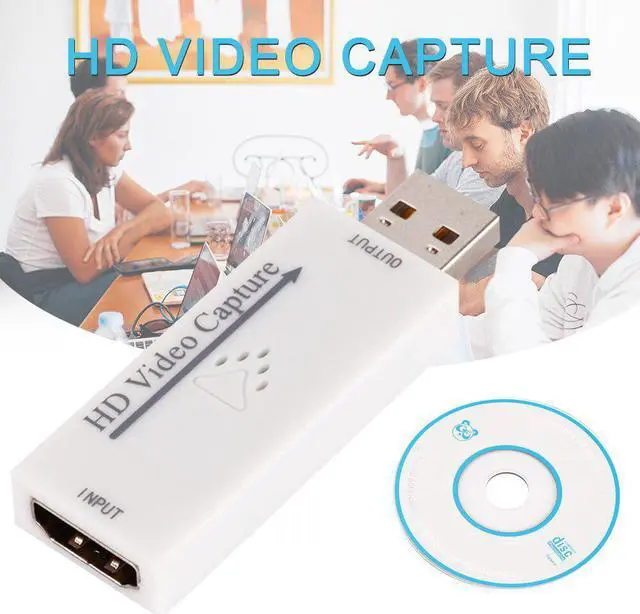

4K 1080P Video Capture Card HD USB 2.0 HDMI Video Grabber Recorder Box for Game Live Streaming USB Video Capture Card With CD

Specifications:

HDMI resolution: The highest input can support 4K

Video input format: 8/10/12 bit color depth

Video output mode: YUV, JPEG

Video output resolution: Maximum output resolution 1080P

Support audio format: L-PCM

Input cable length: 15m, AWG26 HDMI standard cable

Maximum working current: 0.4A/5VDC

range of working temperature: (-10 to +55)

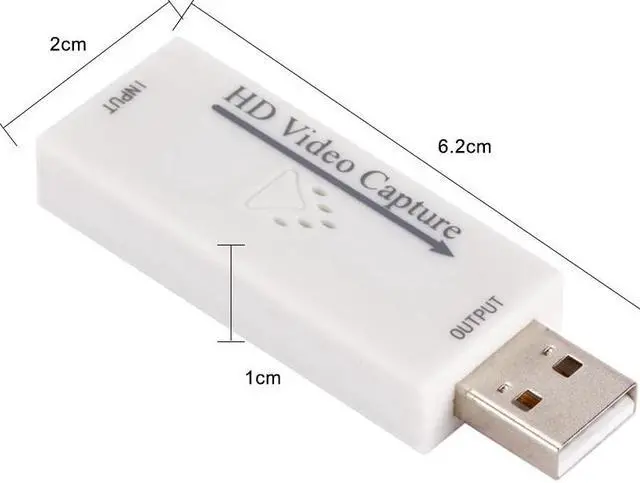

size: 62x20x10 (mm)

weight: 20g

Connection operation:

1.Connect the UHD signal source and the HDMI input port of the USB capture card through 1 HDMI cable

2.Plug the USB header of the USB capture card into the USB port of the computer

3.Acquisition operation steps (OBS): Open the software add a new source select 'video capture device' set the screen size

Select 'Studio Mode' (dual window) click 'Start Recording', as shown in the example below

1. Add a new source and select 'Video Capture Device' 2. Set the screen size

3. Select 'Studio Mode' (dual window) and the above settings are completed.

Note: Computer hardware configuration requirements

CPU: PC i5-3400 or above; NB i7-3537U 2.0GHZ or above

Graphics card: PC GT630 or above; NC GT735M or above

Storage: 4G RAM

Features:

1.This USB 2.0 capture card can capture HDMI video and HDMI audio at the same time, and can transmit audio and video signals to a computer and smart phone for preview and storage. Suitable for high-definition acquisition, teaching recording, medical imaging, etc.

2.Support maximum input resolution up to 4K;

3.Support maximum output resolution up to 1080P;

4.Support 8/10/12 bit color depth;

7.Support Windows, Android and MacOS;
