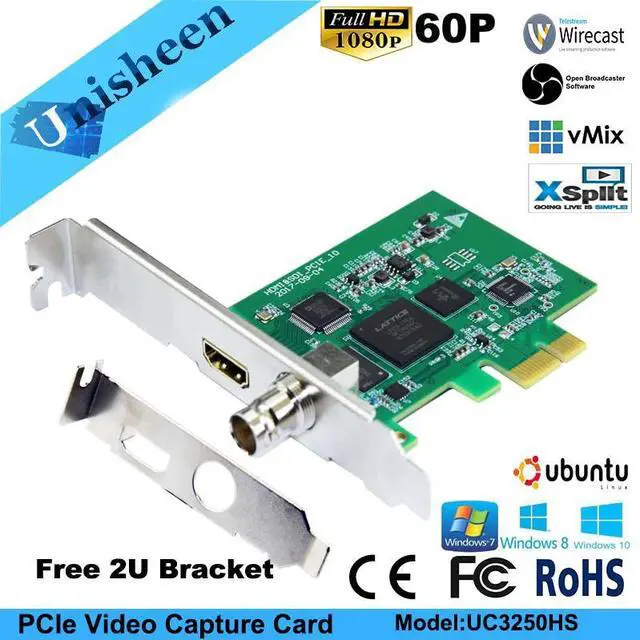

Zero-Lag Video Capture PCIe 60FPS Vmix Streaming Live Broadcast 1080P Wirecast OBS Xsplit

Features:

1. Connect multiple cards to one machine

2. Enable the up/down conversion of video resolution, frame rate and audio sampling rate

3. Support brightness, contrast, hue, saturation, and other screen adjustment functions

4. The HDMI video capture meets UVC standard, support YUV 4:2:2 (YUY2)

5. The HDMI video capture meets UAC standard and 48KHz PCM stereo audio output

6. The video processing engine can be updated via firmware without changing the hardware.

7. Automatically detect and de-interlace signals

8. Reliable and Stable: 64MB DDR2 Onboard memory, it can effectively conduct video frame buffer and USB transfer flow control to avoid interruption or error images when the USB transmission bandwidth is occupied.

Pass through 7x24h continuous high load tests in high and low temperatures (0-50 degrees)

9. Easy to Use: No need to install drivers in Windows, Linux, and OS X, real plug and play.

Compatibility:

1. Compatible operating systems: Windows (7, 8, 8.1), Linux (kernel version 2.6.38 and above), OS X (10.8 and above)

2. Support APIs, such as Windows: DirectShow, DirectSound, Linux: V4L2, ALSA, OS X: QuickTime

3. Support software including Windows Media Encoder (Windows), Adobe Flash Media Live Encoder (Windows, OS X), Real Producer Plus (Windows), VLC (Windows, OS X, Linux), QuickTime Broadcaster (OS X), QuickTime Player (OS X), Wirecast (Windows, OS X) and etc.

Specifications:

Connection

Host Interface

PCIe3.0360MB/s Bandwidth

Input Interface

1 HDMI interface/1 SDI interface

HDMI Video Input

1 1080P/60HZ HD HDMI signal or SDI signal

HDMI Audio Input

1 LPCM audio signal

Standard
