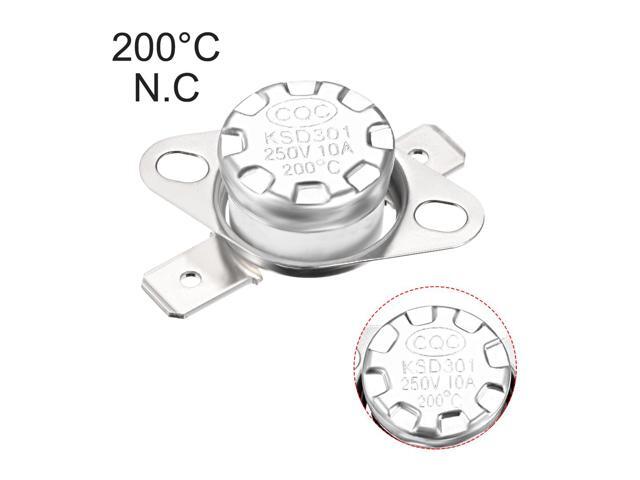

Temperature Control Switch , Thermostat , KSD301 200°C , 10A , Normally Closed N.C 6.3mm Pin 2pcs

In stock.
Ships from United States.
Fees for brokerage and duty included in price. Most customers receive within 6-31 days.
  • Type: KSD301 200 degrees Celsius Thermal Control Switch 110V/120V/250V 10A NC (Normal Close), 6.3mm pin
  • Normally Closed: The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature 200 Celsius degree
  • Advantage: Double metal chip, speed dynamic type, sensitive, reliable, stable action temperature, long service life, no arc phenomenon.

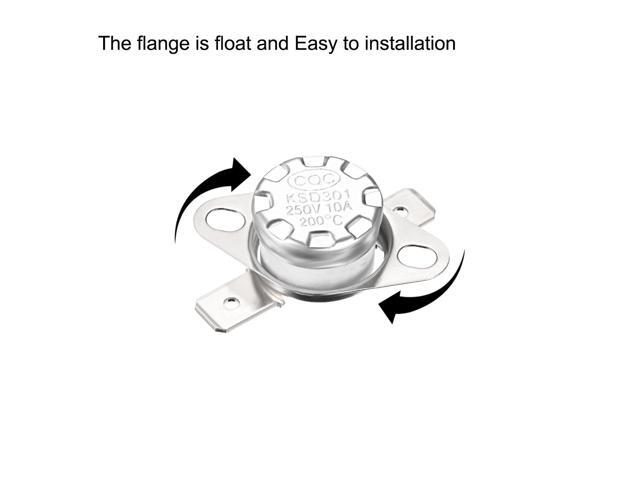

  • Easy to installation : The flange on the switch is float and easy to installation.The pin width is 6.3mm
  • Application: Mainly used for microwave,oven,coffee maker,Speed Cook oven,heater,Dryer,gas furnace,Bath Vent/Heater,wall heater,motor electric heating water dispenser, water bottles, coffee shell, electric iron, dryer, air conditioning, water heater, electronic cooker, heater, motor cleaner
Overview
Specs
Reviews

Specification:

Product Name : Temperature Control Switch

Model: KSD301

Action Temperature: 200°C

Action Type: N.C (Normally Closed)

Rated Voltage/Current : 110V/120V/250V 10A

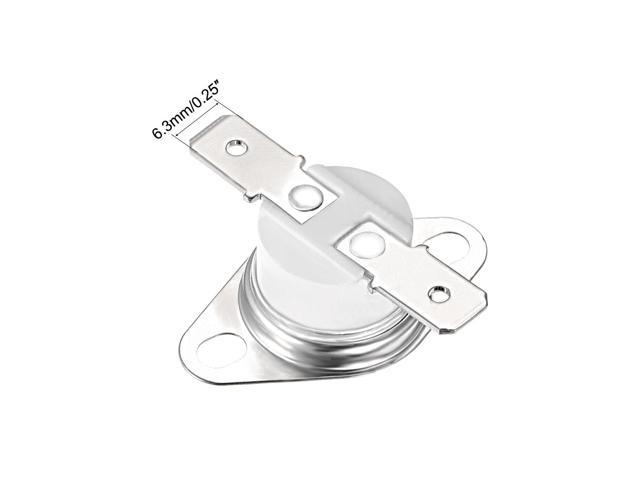

Pin Width : 6.3mm/0.25inch

Contact Life: More than 50,000 times (action times)

Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon

KEY_TAB

Package Content :

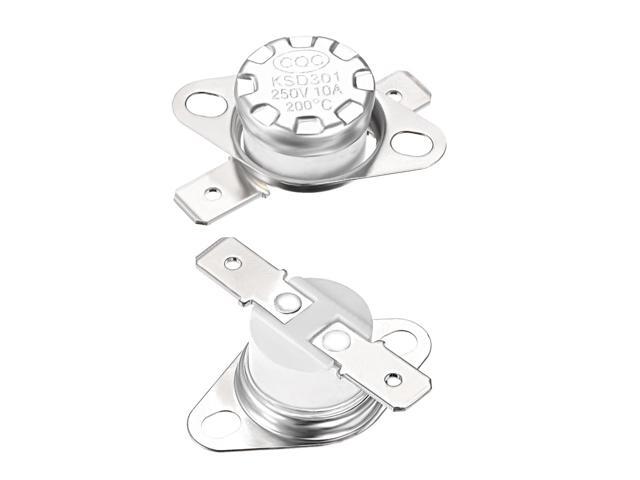

2pcs x Temperature Control Switch

KEY_TAB

Description :

1.Normally Closed: The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature.

2.Feature: Double metal chip, speed dynamic type, sensitive, reliable, stable action temperature, long service life, no arc phenomenon.

3.Advantage: General purpose, automatic reset, low cost, large capacity, minute current thermostats.

4.Application: Mainly used for microwave,oven,coffee maker,Speed Cook oven,heater,Dryer,gas furnace,Bath Vent/Heater,wall heater,motor electric heating water dispenser, water bottles, coffee shell, electric iron, dryer, air conditioning, water heater, electronic cooker, heater, motor cleaner
