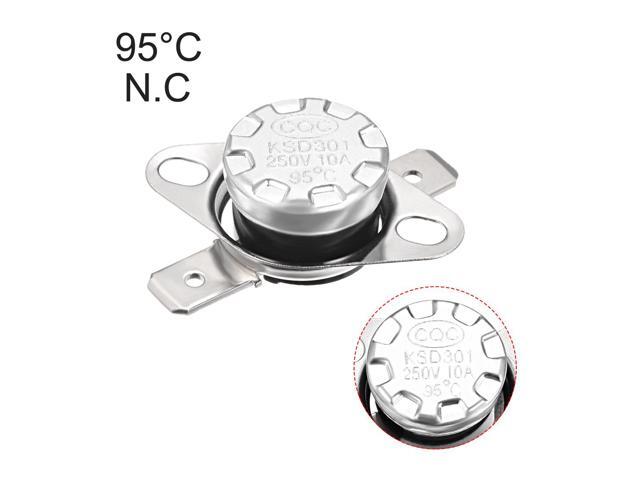

KSD301 Thermostat, Temperature Control Switch 95°C 10A Normally Closed N.C 6.3mm Pin 5pcs

In stock.
Ships from United States.
Fees for brokerage and duty included in price. Most customers receive within 6-31 days.
  • Type: 5pcs KSD301 95 degrees Celsius Thermal Control Switch 250V 10A NC (Normal Close).
Overview
Specs
Reviews

Specification:

Product Name : Temperature Control Switch

Model: KSD301

Action Temperature: 95°C

Action Type: N.C (Normal Close)

Rated Voltage/Current : 250V/10A

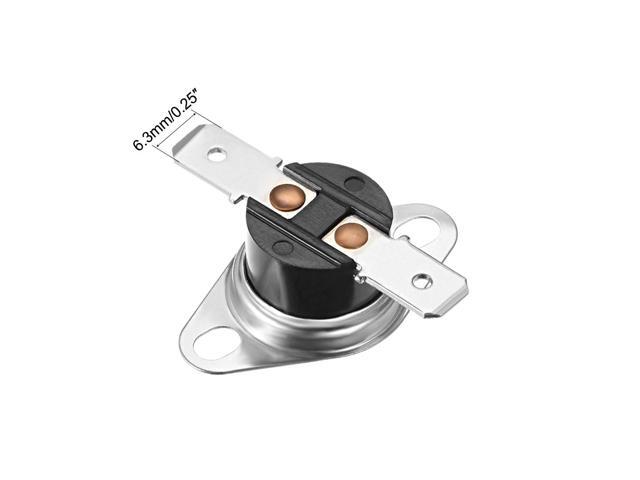

Pin Width : 6.3mm/0.25inch

Contact Life: More than 50,000 times (action times)

Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon

KEY_TAB

Package Content :

5 x Temperature Control Switch

KEY_TAB

Description :

1.Normally Closed: The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature.

2.Feature: Double metal chip, contact sensor, speed dynamic type, sensitive, reliable, safe, stable action temperature, long service life, no arc phenomenon.

3.Advantage: General purpose, automatic reset, low cost, large capacity, minute current thermostats.

4.Function: It is closed until the temperature reaches 95 Celsius degree, then the switch opens. Widely used for temperature control or protection for household electric appliances.

5.Application: Mainly used for motor electric heating water dispenser, water bottles, disinfection cabinet, coffee shell, electric iron, dryer, air conditioning, water heater, electronic cooker, heater, disinfection cupboard and motor cleaner etc.
