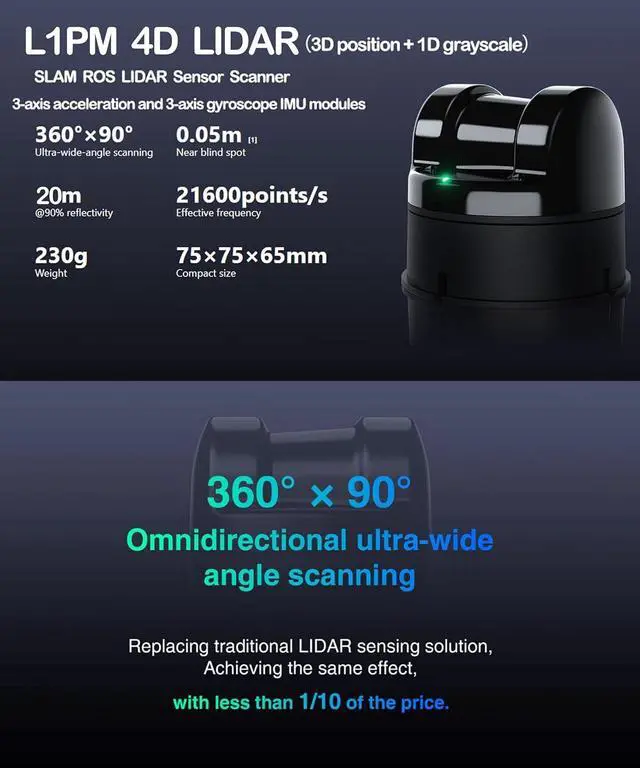

WayPonDEV L1PM 4D 3D Lidar Sensor Module Kit, 360 Degree 20 Meters Scanning Radius Rangefinder, ROS SLAM 3D Lidar Scanner for AGV Robot Navigation and Obstacle Avoidance (L1PM 20M)
- [Excellent Performance] L1 4D lidar has built-in 3-axis acceleration and 3-axis gyroscope IMU modules, supporting a push frequency of 250Hz. The circumferential scanning frequency of L1 is 11Hz, the vertical scanning frequency is 180Hz, and the effective sampling frequency is 21600 points/ Second. L1 not only has excellent performance, but also has high reliability. It can also achieve stable ranging and high-precision mapping under the strong light of 100K lux outdoors.

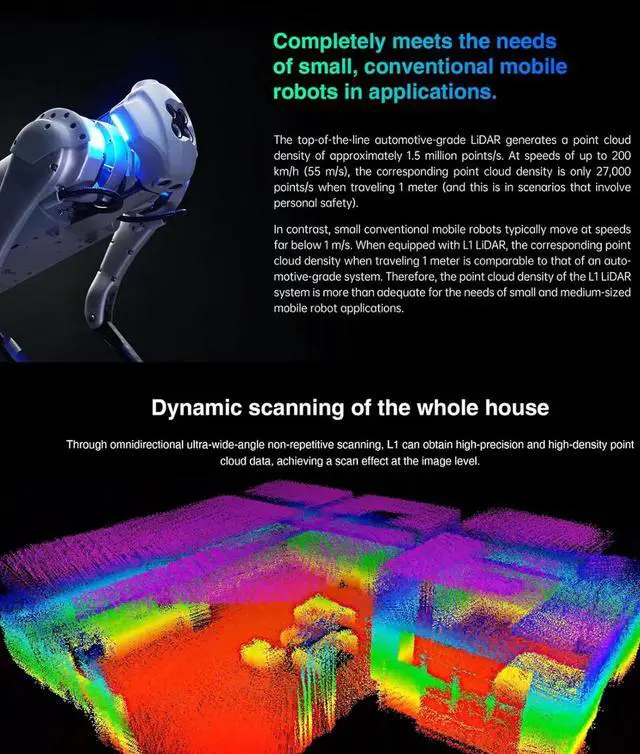

- [3D Space Detection] L1 lidar has excellent ultra-wide-angle scanning capabilities. The field of view (FOV) extends to 360° horizontally and 90° vertically. It can realize three-dimensional space detection with a hemispherical field of view, and its application range can be expanded to More commercial scenarios.
- [High-speed Ranging Sampling] 4D-LiDAR L1 is a 4D lidar (3D position + 1D grayscale), which can be widely used in robots, smart cities, smart toys, logistics and other fields, supporting mapping, positioning
+
+
Overview
Specs
Reviews
-Specification-
FOV: 360° × 90°
Non-duplicate scan: Yes

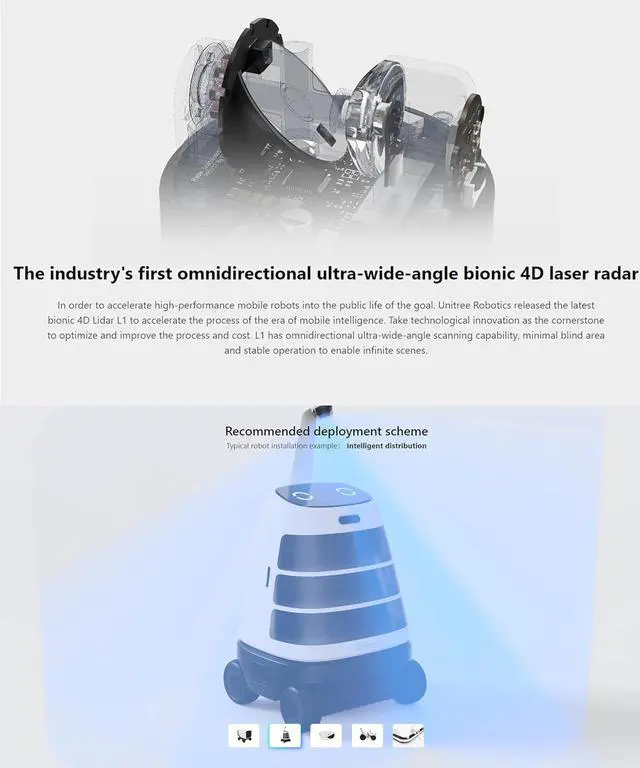

Scanning method: non-contact brushless mirror scanning
Scanning distance: 20m/30m
20m(@90% reflectivity)
10m(@10% reflectivity)
Sampling frequency: 43200 points/second
Effective frequency: 21600 points/second
Circumferential scanning frequency: 11Hz
Vertical scanning frequency: 180Hz
Communication interface: TTL UART
4D data: 3D position + 1D grayscale
Anti-glare ability: above 100Klux

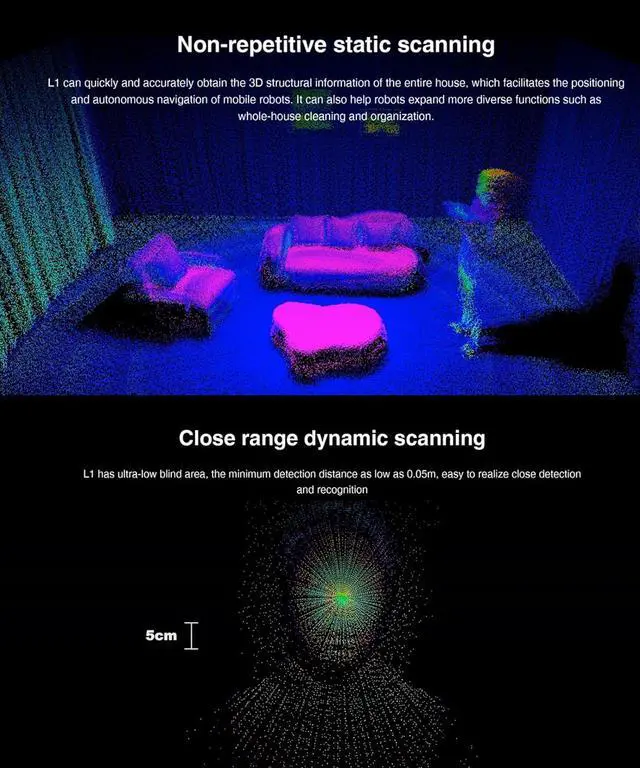

Near blind zone: 0.05m
IMU: 3-axis acceleration + 3-axis gyroscope
Working environment: indoor/outdoor
Implementation technology: Laser TOF
Size: 75×75×65 mm (only lidar
Weight: 230g (only lidar

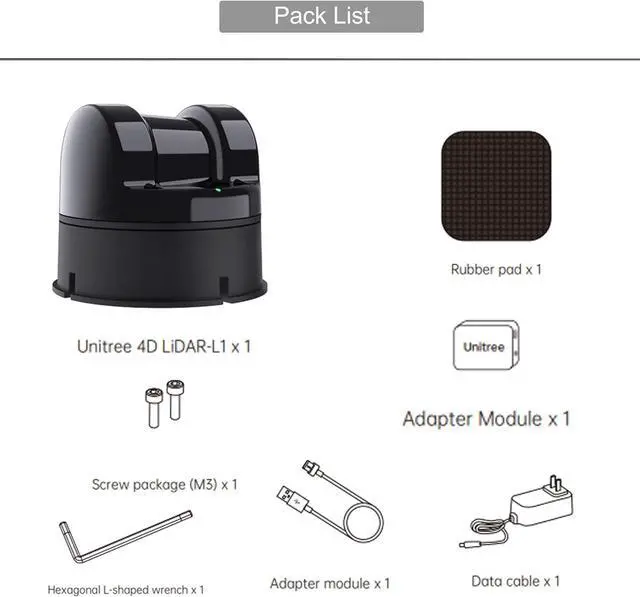

-Package Content-
4D Lidar Set x1
-Technical Support-
Unilidar User Manual: "oss-global-cdn.unitree.com/Lidar/Unilidar%20User%20Manual_v1.0.pdf"
Unilidar SDK User Manual :" oss-global-cdn.unitree.com/Lidar/Unilidar%20SDK%20User%20Manual_v1.0.pdf "
Please click "WayPonDEV" and ask a question.
Please leave the message "wpd#youyeetoo&com (#-@,&-.)" or skype: monica_9122.
