$17.57
Ships from China.
Meet Your Seller

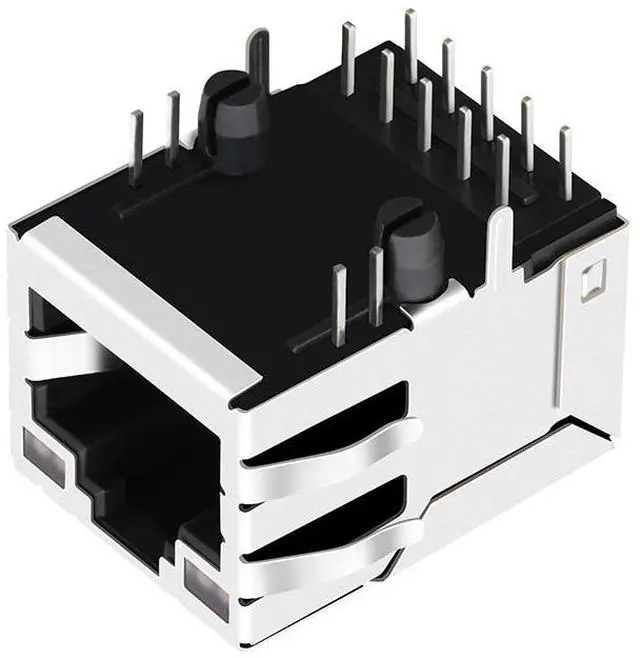

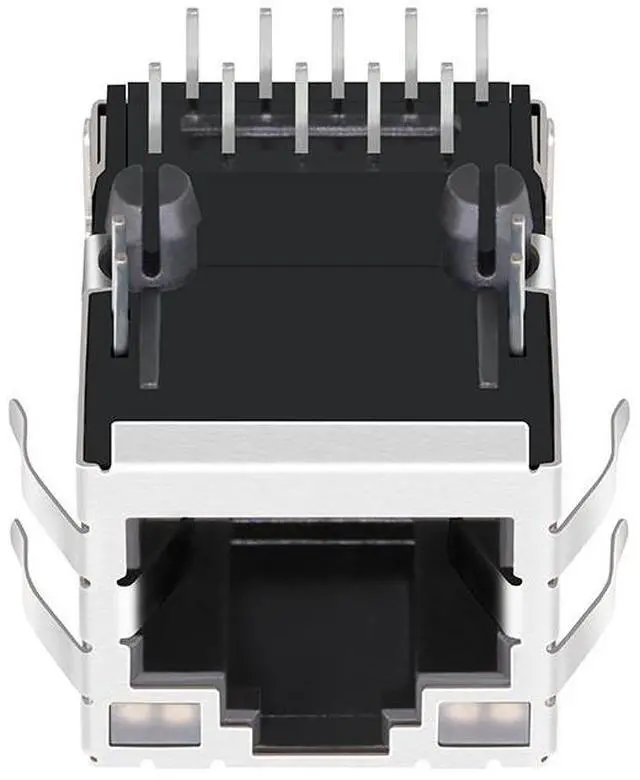

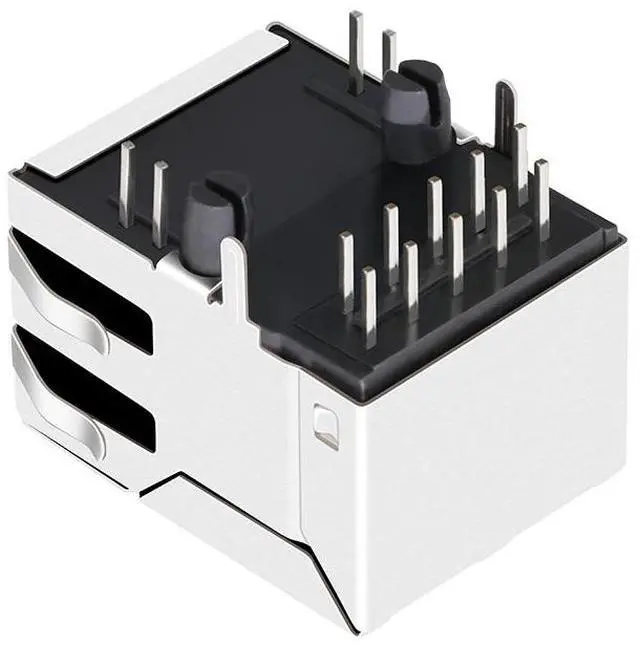

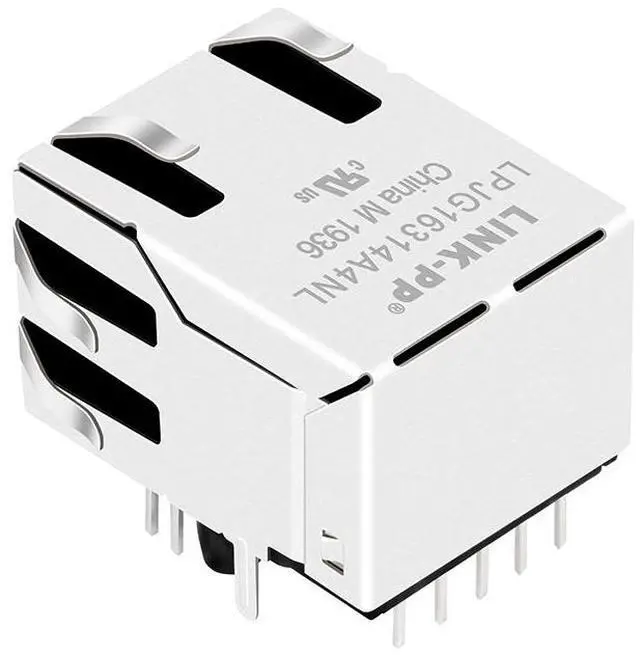

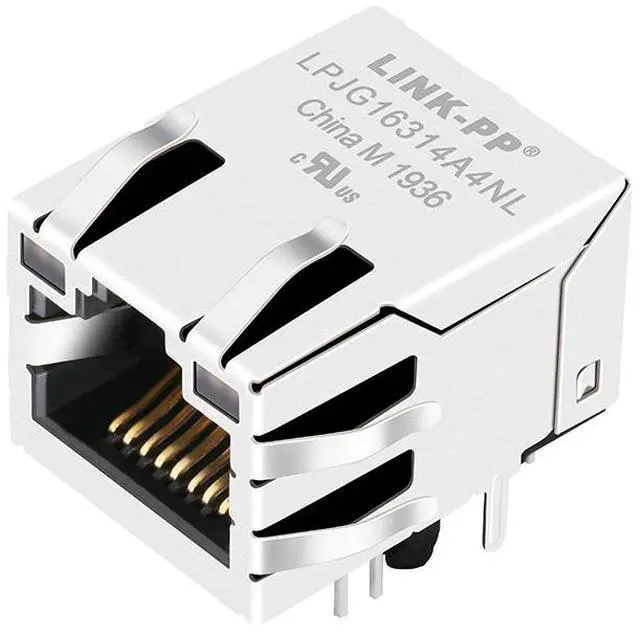

LINK-PP RB1-1Q6BAM1A Gigabit RJ45 Magjack Connector, 8P8C 10/100/1000Base-T with Integrated Magnetics, Shielded with EMI Tabs, Tab Up Orientation, with LED Indicator, Through Hole Mount (Tape & Reel)
- Gigabit Magjack integrated design: Built-in magnetic components (transformer and common-mode choke coil), supporting 10/100/1000 Base-T gigabit Ethernet, providing complete signal conditioning and electrical isolation functions
- 2. Complete electromagnetic shielding system:
- EMI fully shielded housing: Provides comprehensive protection against electromagnetic interference
- Shielding spring design: Ensures a reliable connection between the housing and the PCB grounding layer, enhancing the shielding effect.
- 3. Special Direction Design: Utilizes the Tab Up (lock mechanism upward) interface direction, which is suitable for specific chassis layouts and installation requirements.
- 4. Status Monitoring Function: Equipped with LED indicators, it can display the network connection status and data transmission activities in real time.
- 5. High-performance contact design: Phosphor bronze contact components are combined with gold plating treatment to ensure signal transmission quality at gigabit rates.
- 6. High reliability connection: Through-hole welding provides a strong mechanical connection that can withstand the stress caused by plugging and unplugging of network cables.
- 7. Automation Production Support: Roll packaging is suitable for use with automated assembly machines for large-scale PCB assembly.
+
+
Overview
Specs
Reviews
Manufacturer model: RB1-1Q6BAM1A
Brand: LINK-PP
Type: RJ45 Magjack
Connector type: RJ45
Description: RJ45 Magjack
Origin: Guangdong, China
Package: Tape & Reel
Installation method: Through Hole
Shielding: EMI Shielded
Contact material: Phosphor Bronze
Contact coating: Gold-Plated
Operating temperature: 0°C ~ 70°C
Position/Contact count: 8p8c (RJ45, Ethernet)
Port count: 1x1 Port
Speed: 10/100/1000 Base-T
Local area network application: Ethernet (Non PoE)
Wire core count: 4-core
Per-port wire core: 4
Direction: Tab Up
Locking direction: Up
EMI shielding clip: With
LED option: With
Component status: Active
