$16.94
Ships from China.
Meet Your Seller

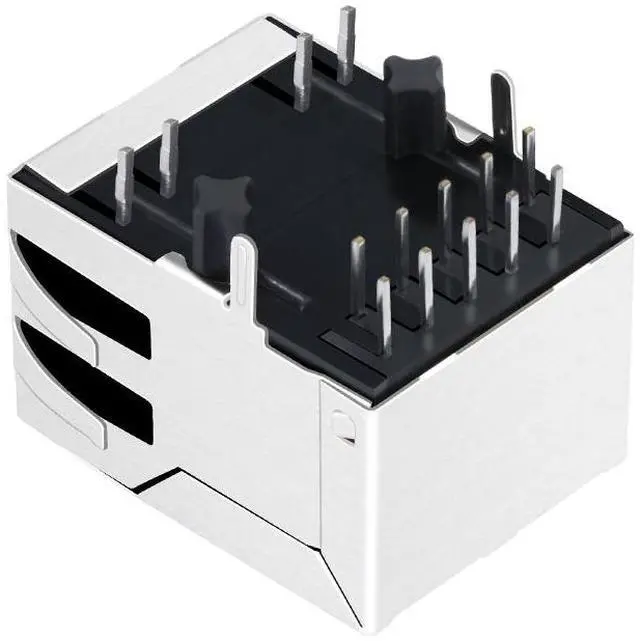

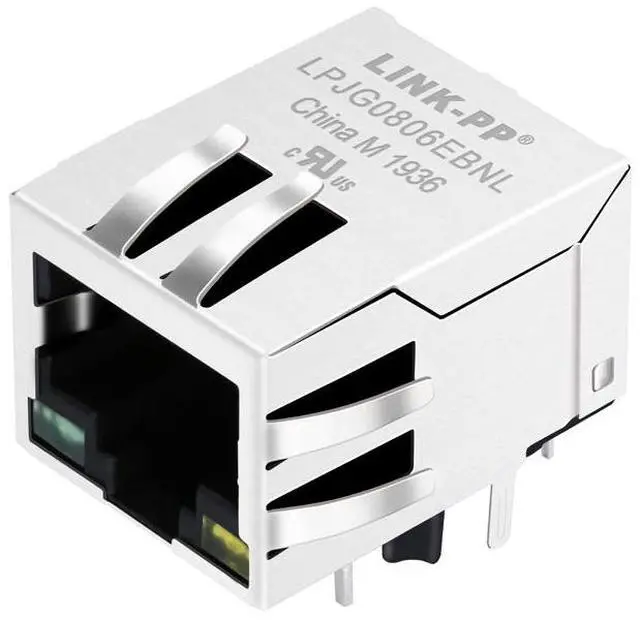

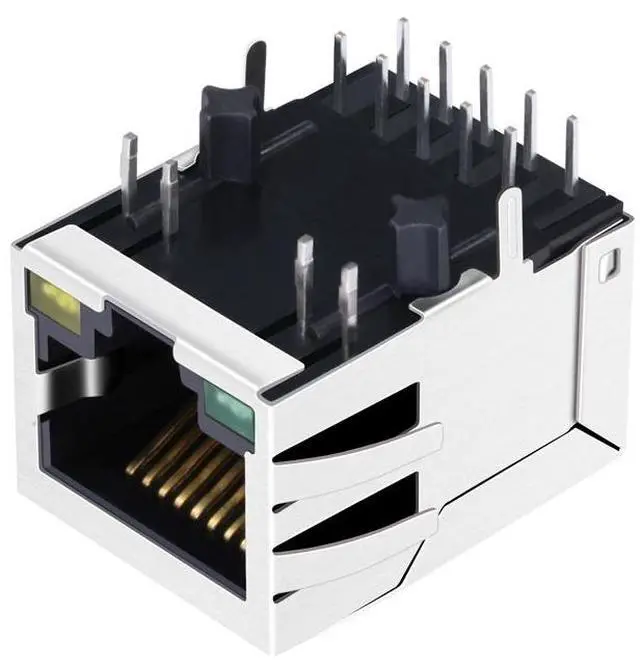

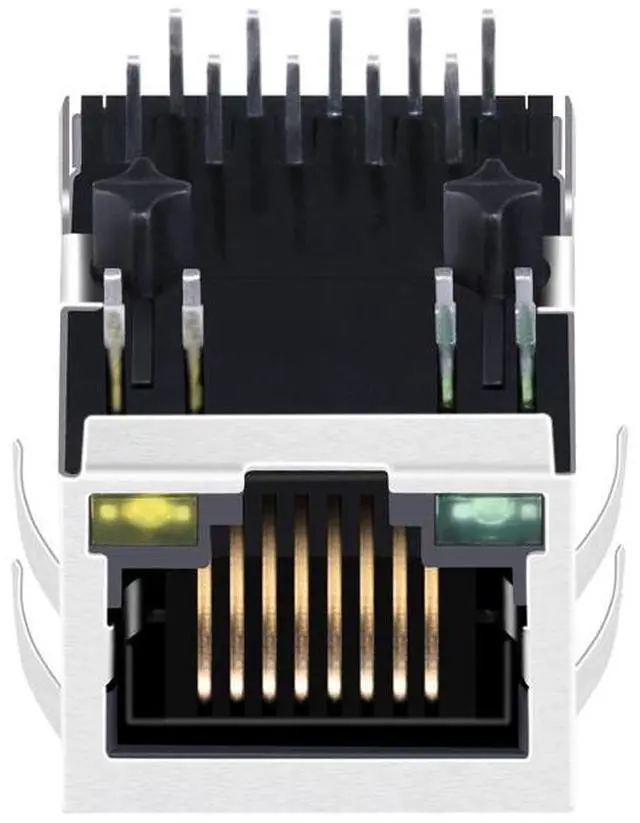

LINK-PP HR911130C Gigabit RJ45 Magjack Connector, 8P8C 10/100/1000Base-T with Integrated Magnetics, Shielded with Tabs, Tab Down, with LED, Through Hole Mount (Tape & Reel)
- 1 Gigabit Magjack Integrated Connector: An RJ45 connector integrated with magnetic components (transformers and common-mode chokes), supporting 10/100/1000 Base-T Gigabit Ethernet, providing complete signal conditioning and isolation functions
- 2. Complete electromagnetic shielding solution:
- EMI fully shielded housing: Provides comprehensive protection against electromagnetic interference
- Shielding spring design: Ensures a reliable connection between the housing and the PCB grounding layer, enhancing the shielding effect.
- 3. Status Monitoring Function: Equipped with LED indicators, it can display the network connection status and data transmission activities in real time.
- 4 High-performance contact design: Utilizing phosphor bronze contact components and applying gold plating treatment, ensuring signal transmission quality and connection reliability at gigabit rates.
- 5 Specific Installation Orientation: Adopting the Tab Down (lock mechanism facing downward) design, it is suitable for specific chassis layouts and requirements for network cable routing.
- 6. Robust connection method: Through-hole welding provides strong mechanical strength and can withstand the stress caused by the insertion and removal of network cables.
- 7. Friendly for automated production: Cylindrical packaging is suitable for use with automated assembly machines for large-scale PCB assembly.
+
+
Overview
Specs
Reviews
Manufacturer model: HR911130C
Brand: LINK-PP
Type: RJ45 Magjack
Connector type: RJ45
Description: RJ45 Magjack
Origin: Guangdong, China
Package: Tape & Reel
Installation method: Through Hole
Shielding: EMI Shielded
Contact material: Phosphor Bronze
Contact coating: Gold-Plated
Operating temperature: 0°C ~ 70°C
Pin count: 8 PIN
Position/contact count: 8p8c (RJ45, Ethernet)
Port count: 1x1 Port
Speed: 10/100/1000 Base-T
Local area network application: Ethernet (Non PoE)
Wire core count: 4-core
Per-port wire core: 4
Direction: Tab Down
Latch direction: Down
EMI shielding clip: With
LED option: With
Component status: Active
