$16.62
Ships from China.
Meet Your Seller

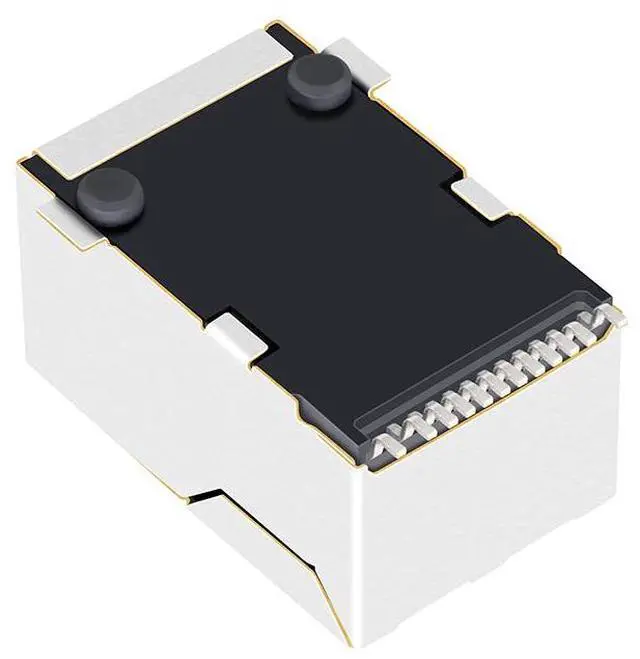

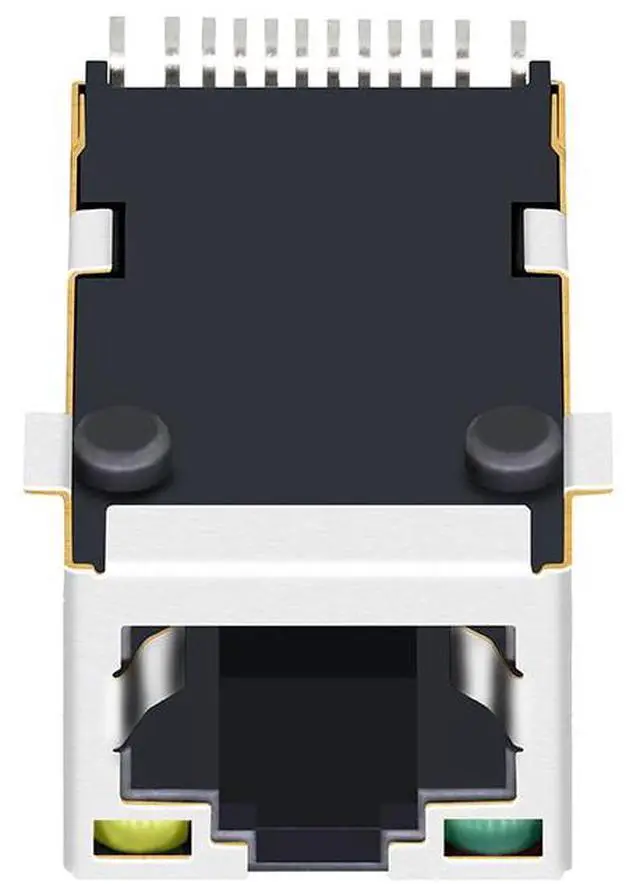

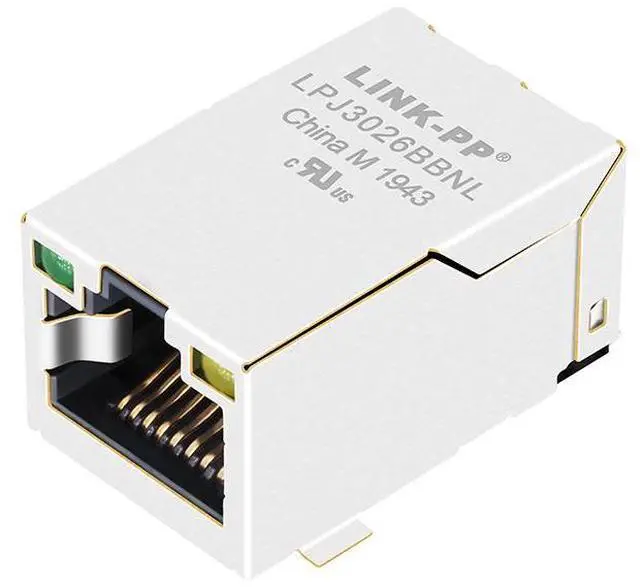

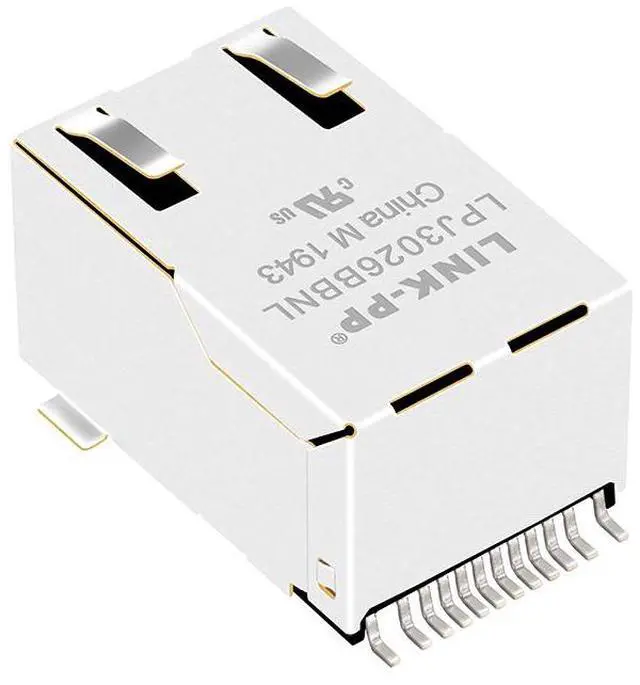

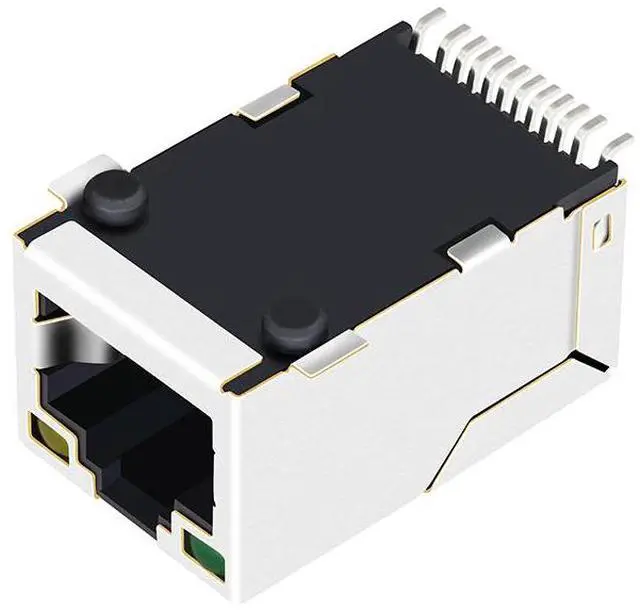

LINK-PP J3026G01D 10G Ethernet RJ45 Magjack Connector, Integrated Magnetics, 10/100/1000/10GBase-T Shielded, 1500Vrms Hi-pot, Toroidal Coil, Tab Up/Down, Through Hole (Tape & Reel)
- 10 Gigabit Magjack Integrated Connector: An RJ45 connector integrated with magnetic components (transformer and common mode choke coil), supporting 10G Base-TX 10 Gigabit Ethernet and backward compatible with all low-speed Ethernet standards.
- 2 Industrial-grade Security and Performance Design:
- 1500Vrms high voltage rating: Offers outstanding electrical isolation and safety performance
- Ring-shaped magnetic core structure: Utilizes a Toroidal coil design, with a minimum inductance value of 350H, ensuring excellent signal integrity and anti-interference capability.
- 3 Advanced Materials and Processes:
- 6-micron thickened gold plating: Offers exceptional corrosion resistance and connection reliability
- Thermoplastic housing: Exhibits excellent mechanical strength and insulation properties.
- 4 Flexible installation direction: Supports two locking directions of "Tab Up" and "Tab Down", which can meet the requirements of different device designs and panel layouts.
- 5 Complete Electromagnetic Shielding: EMI full shielding design, ensuring signal stability and anti-electromagnetic interference capability under 10-gigabit high-speed data transmission.
- 6. Wide compatibility: Specifically designed for SOHO devices, motherboard-integrated network cards, hubs, switches and other network equipment.
- 7. High-reliability Through-Hole Installation: The Through-Hole welding method provides a robust mechanical connection, suitable for applications requiring high reliability.
+
+
Overview
Specs
Reviews
Manufacturer model: J3026G01D
Brand: LINK-PP
Type: RJ45 Magjack
Connector type: RJ45
Description: RJ45 Magjack
Origin: Guangdong, China
Package: Tape & Reel
Installation method: Through Hole
Shielding: EMI Shielded
Contact material: Phosphor Bronze
Contact coating: Gold-Plated (6" min)
Operating temperature: 0°C ~ 70°C
Pin count: 8 PIN
Wire core count: 4-core
Application fields: SOHO/LAN-on-Motherboard/Hub/Switch
Shell material: Thermoplastic
Speed support: 10/100/1000/10G Base-TX
Voltage withstand test: 1500Vrms
Inductance value: 350H min
Coil structure: Toroidal
Locking direction: Tab Up/Tab Down
Component status: Active
