$17.52
Ships from China.
Meet Your Seller

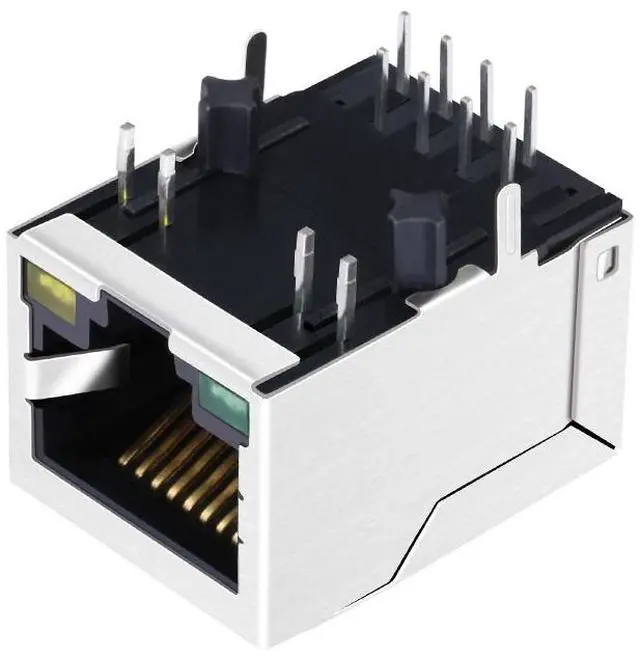

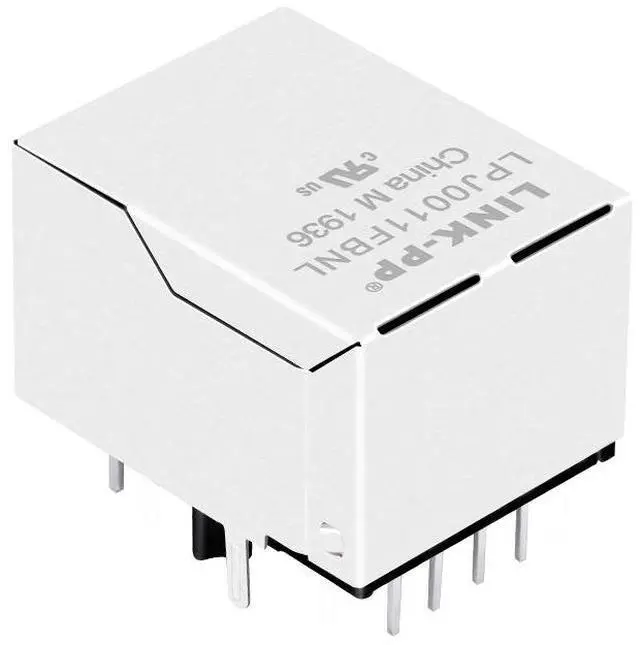

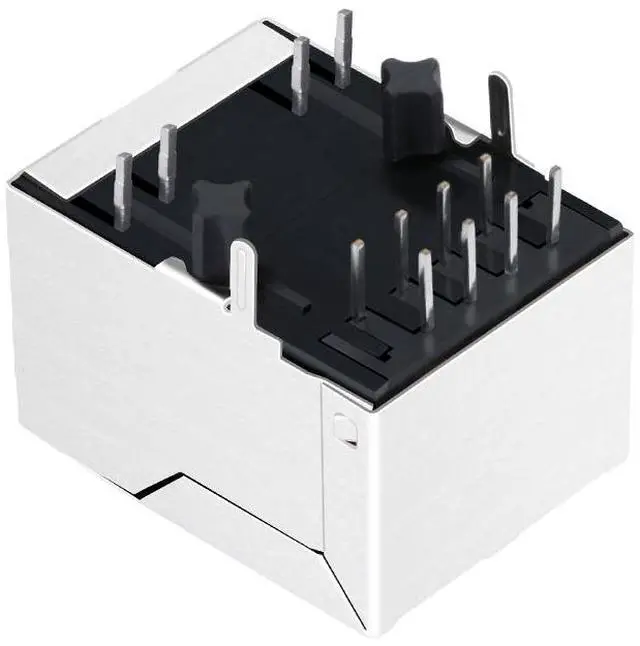

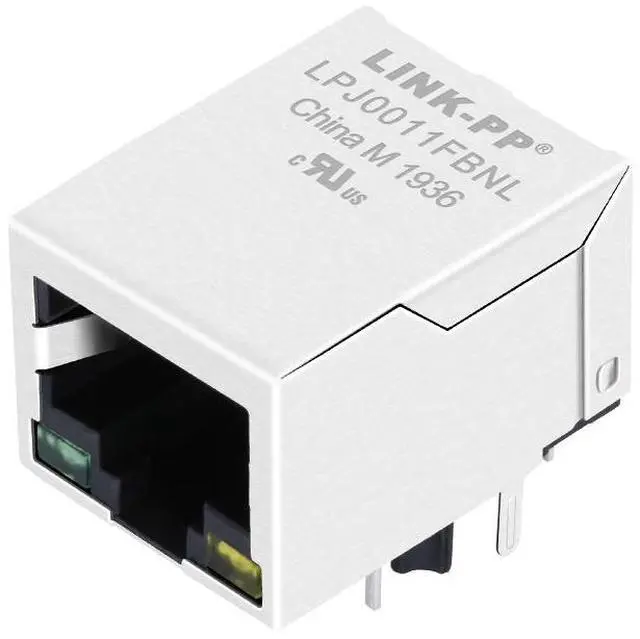

LINK-PP HR911105A RJ45 Connector with Integrated Magnetics, 8P8C 10/100Base-T 90 Degree Right Angle, Shielded, Tab Down, Through Hole, Gold Plated (Tape & Reel)
- 1. Integrated magnetic network module design: The most notable feature is the inclusion of a toroidal coil and an integrated transformer module with a minimum inductance value of 350 H. This module provides signal isolation, impedance matching, and common-mode suppression functions, significantly enhancing signal integrity and anti-interference capability.
- 2. Space Optimization Structure: Adopting a 90° right-angle bent-leg design, it is particularly suitable for devices with compact PCB layout. It can significantly reduce the space occupation inside the board and optimize cable management.
- 3. Industrial-level Reliability:
- Fully shielded metal casing: Provides 360° electromagnetic interference protection
- Phosphor bronze gold-plated contacts: Ensure excellent conductivity and reliable plugging and unplugging performance
- Through-hole welding (THT): Offers greater mechanical strength than surface mount technology.
- 4 Standard Gigabit Performance: Supports 10/100Base-T transmission rates, meeting the access requirements of most industrial network devices.
- 5 Commercial-grade temperature range: A working temperature range of 0°C to 70°C, suitable for common indoor and commercial equipment applications
+
+
Overview
Specs
Reviews
Manufacturer model: HR911105A
Brand: LINK-PP
Producer part number: HR911105A
Type: RJ45
Connector type: RJ45 Jack
Description: Ethernet RJ45 Connector
Origin: Guangdong, China
Packaging: Tape & Reel
Installation method: Through Hole (THT)
Shielding: EMI Shielded
Contact material: Phosphor Bronze
Contact coating: Gold-Plated
Operating temperature: 0°C ~ 70°C
Pin count: 8 PIN
Position/Contact count: 8p8c (RJ45, Ethernet)
Speed: 10/100 Base-T
Wire core count: 4-core
Direction: Tab Down / 90° Angle (Right)
Application: PCB Mount
High-voltage test: 350H min
Coil type: Toroidal
Number of magnetic rings: Integrated Magnetics
