$17.41
Ships from China.
Meet Your Seller

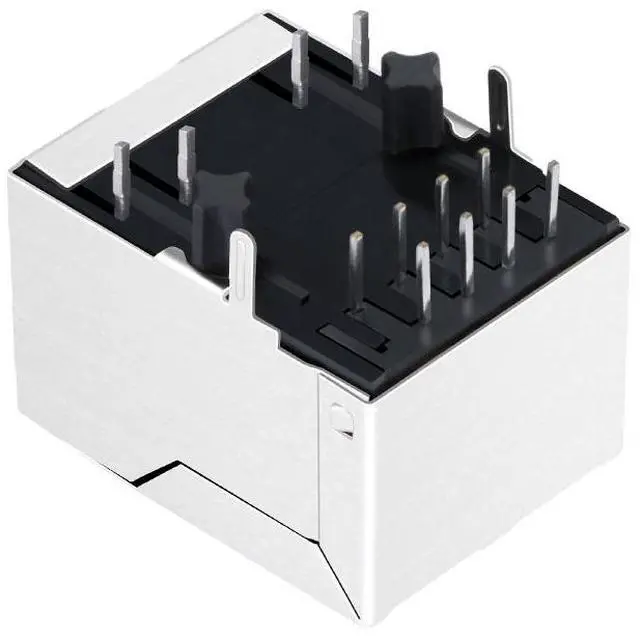

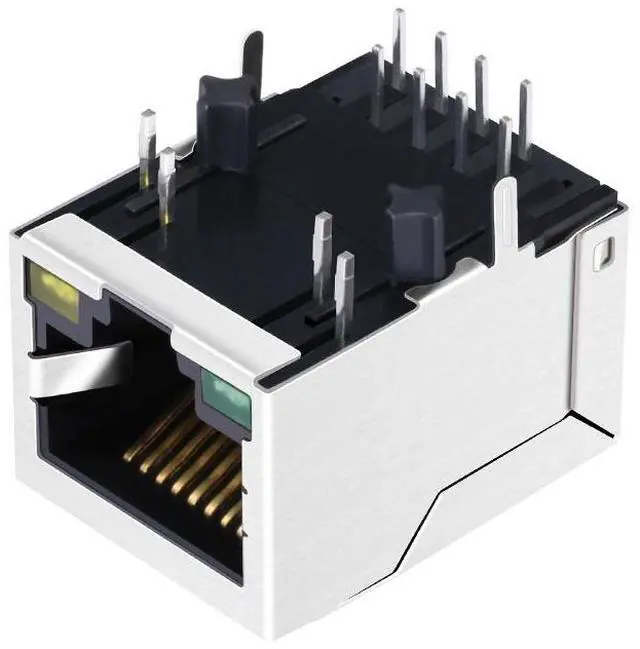

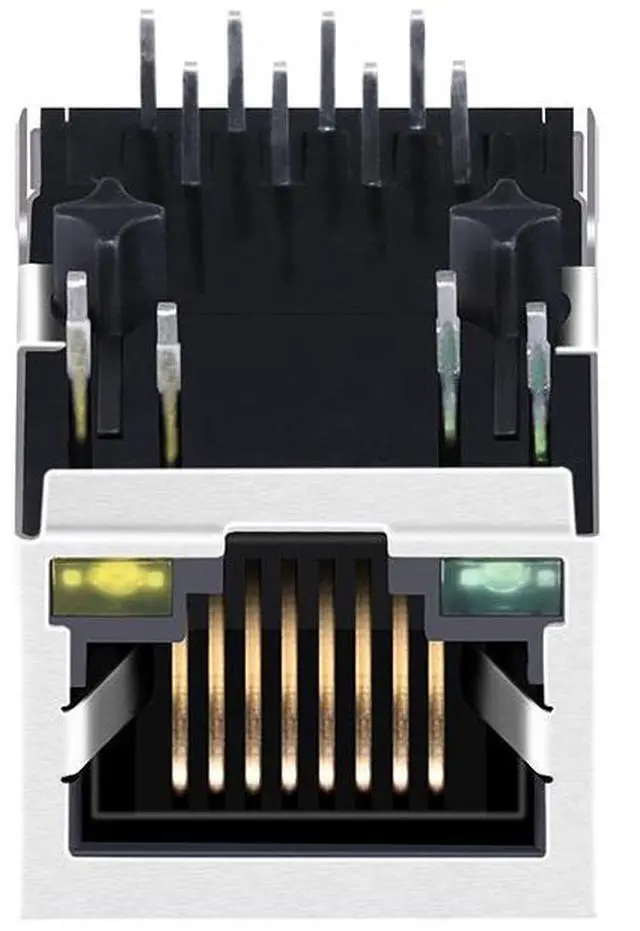

LINK-PP JKM-0009NL RJ45 Connector, 8P8C 10/100Base-T 90 Degree Right Angle, Shielded, Tab Down, with Green/Yellow LED, Through Hole, Gold Plated (Tape & Reel)
- 1. Standard 100Mbps performance: Supports 10/100 Base-T transmission rate, meeting the access requirements of most network devices.
- 2. High reliability design:
- EMI Full Shielding: The metal casing offers excellent protection against electromagnetic interference (EMI), ensuring stable signal transmission.
- Gold-plated contacts & phosphor bronze material: Ensures excellent conductivity, corrosion resistance and durability in plugging and unplugging.
- 3-color status indicator lights: Equipped with green/yellow LED, which can clearly display the network connection status (such as the green light being constantly on) and the activity/rate status (such as the yellow light flashing), facilitating fault diagnosis.
- 4 Space-saving right-angle design: Adopting 90° Angle (Right) right-angle bent foot design, it is particularly suitable for use in PCB layouts with limited space or in devices requiring horizontal plug-in network cables. This design can effectively reduce the internal space occupation of the equipment and optimize the cable routing.
+
+
Overview
Specs
Reviews
Manufacturer Model Number: JKM-0009NL
Brand: LINK-PP
Producer Part Number: JKM-0009NL
Type: RJ45
Connector Type: RJ45
Description: Ethernet RJ45 Connector
Place of Origin: Guangdong, China
Packaging: Tape & Reel
Installation: Through Hole
Shielding: EMI Shielded
Contact Material: Phosphor Bronze
Contact Finish: Gold-Plated
Operating Temperature: 0°C ~ 70°C
Pins: 8 PIN
Number of Positions/Contacts: 8p8c (RJ45, Ethernet)
Number of Ports: 1x1 Port
Speed: 10/100 Base-T
Application-Lan: Ethernet (Non PoE)
Number of Cores: 4-core
Cores per Port: 4
Orientation: Tab Down / 90° Angle (Right)
Latch: Down
LED Option: Green/Yellow
Part Status: Active
