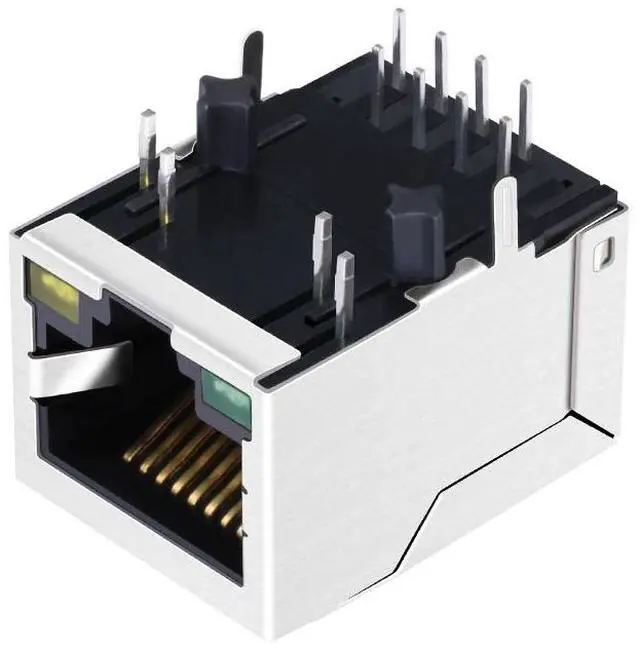

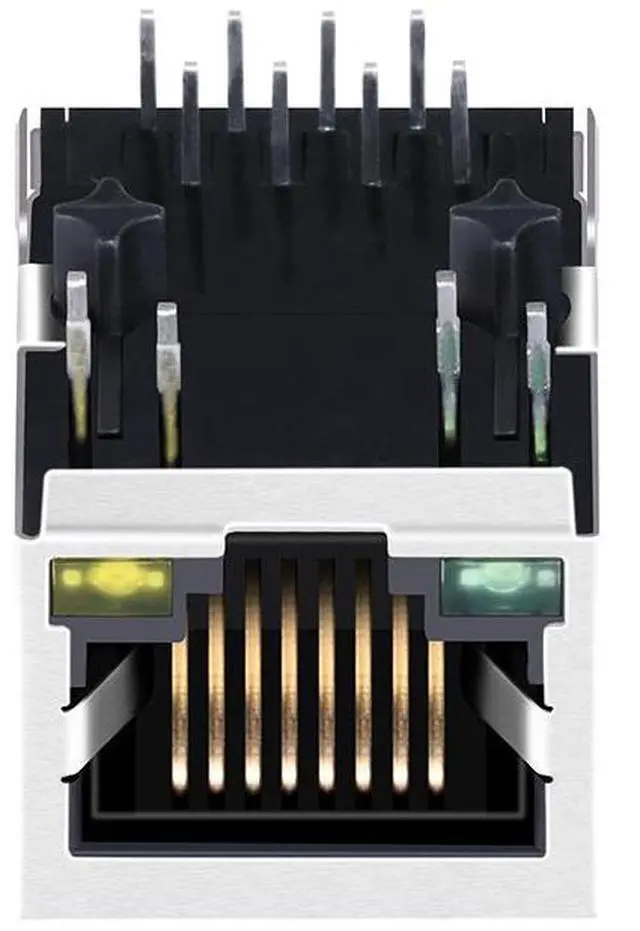

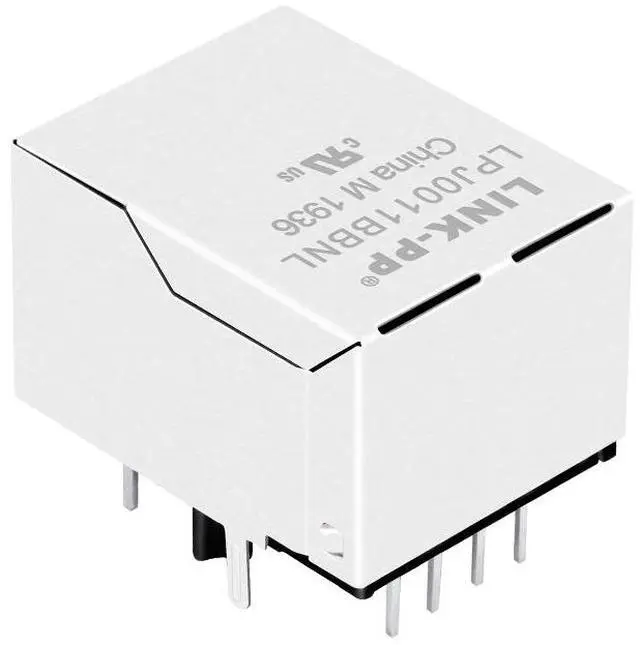

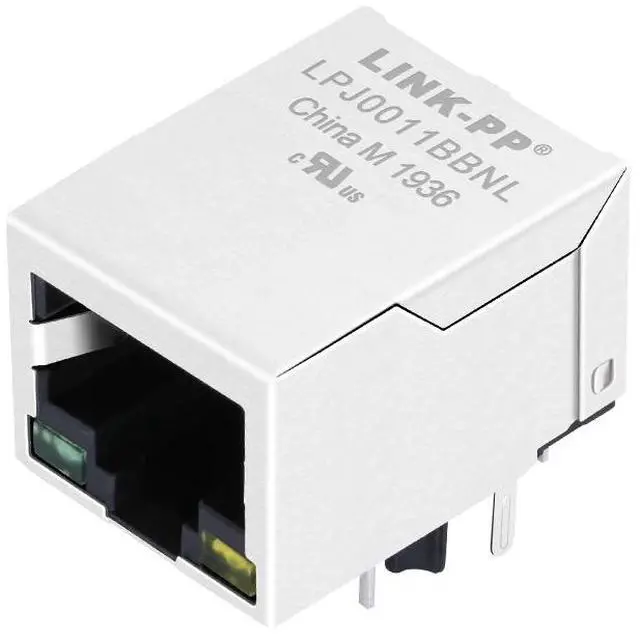

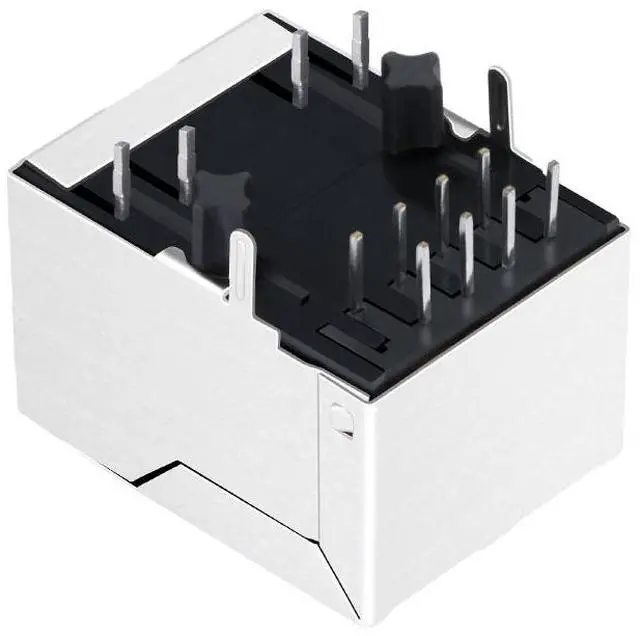

10/100 Base-T Integrated Magnetics Single Port 8 Pin Ethernet Port RJ45 Connector J0011D01B / J0011D01BNL
- 1. Standard 100M performance: Supports 10/100 Base-T transmission rate (100M network), meeting the bandwidth requirements of most network devices, industrial control, smart home appliances, etc.
- 2. High reliability design:
- Full shielding structure: The metal casing provides comprehensive electromagnetic shielding (EMI/RFI) protection, effectively suppressing external interference and preventing signal leakage, ensuring stable data transmission in complex electromagnetic environments.
- Integrated magnetic ring: Contains 4 magnetic rings (common mode choke coils), used for signal filtering and impedance matching, which can significantly reduce common mode noise, enhance signal integrity and improve anti-interference capability.
- 3. Convenient status monitoring: Equipped with two LED indicators (left yellow / right green), commonly used to display link status (always on green) and network activity/rate (flashing yellow), facilitating users to quickly diagnose the network connection status.
- 4. Stable connection mechanism:
- With shrapnel: Ensure that the network cable plug is securely locked in place after being inserted to prevent it from falling off due to vibration or pulling.
- Through-hole welding: It offers greater mechanical strength and connection reliability than surface-mount welding, and is particularly suitable for interfaces that need to withstand insertion and removal stresses.
+
+
Overview
Specs
Reviews
Model Number J0011D01BNL
Brand LINK-PP
Connector Type RJ45
Packaging Tape & Reel
Installation Through Hole
Shielding EMI Shielded
Orientation Tab Down
Number of Cores 4-core
Part Status Active
Application-Lan Ethernet(NoN PoE)
Speed 10/100 Base-T
Cores per Port 4
Shield EMI Tabs Without
Type RJ45
Contact Material Phosphor Bronze
Place of Origin Guangdong, China
Description Ethernet RJ45 Connector
Operating Temperature 0°C~70°C
Contact Finish Gold-Plated
Pins 8 PIN
Part Number J0011D01B
Number of Positions 8p8c (RJ45, Ethernet)
Number of Ports 1×1 Port
Latch Down
Orientation 90° Angle (Right)
