notebook graphics card external external transfer m.2 nvme PCIe3.0x4 extension dock full speed stability Riser Cable GTX1080

Brand new arrival, excellent product performance, word of mouth super good products, official authentic products,100% electrified test delivery.

In addition to laptop, this product also supports NUC motherboard, STX motherboard, ITX motherboard, graphics card external connection, has the m.2 NVMe interface can be used.

Company brand: ADT

Product model: series

Product name: video card external transfer board extension cord

Wire length: 25cm, 50cm (other lengths can be customized for batch orders)

Video card compatibility: support new graphics CARDS manufactured after 2015 (old graphics CARDS manufactured before 2014 are not supported)

Compatible with: Notebook, ITX/STX motherboard, NUC, support only m.2 NVMe interface but not m.2 SATA interface, m.2 WiFi interface and m.2 WWAN interface

Bandwidth speed: pcie3.0x4 (32G/s)

Model description: R43SG (m.2 NVMe interface)

Product advantage

1.Advantages of wire, imported wire with German patent, Lotes connector imported from Taiwan, high frequency support PCIe 3.0x4;

32G/ BPS stable transfer

2.The differential signal has no hole design, and there is no signal attenuation interference problem of parasitic capacitance and parasitic inductance, and no CAF micro-short circuit phenomenon. The product is durable

3.The products are made of high quality materials, PCB is made of fine workmanship, copper is thickened to 1oz, gold finger has enough gold plating content and good electrical conductivity, which can reduce the problem of dead blue screen caused by increased oxidation rust impedance.

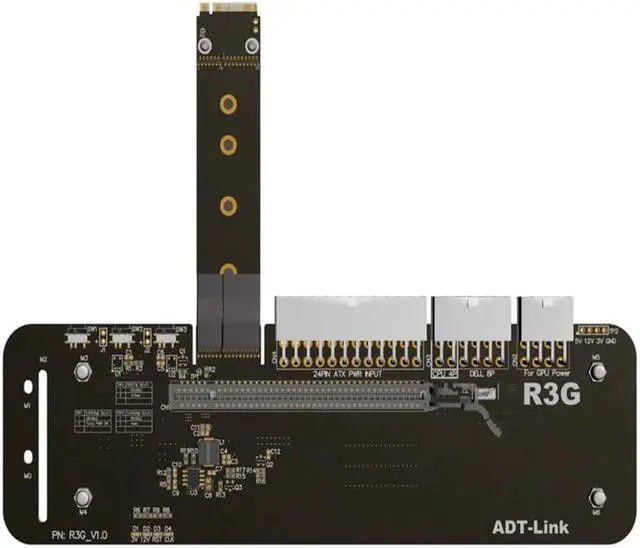

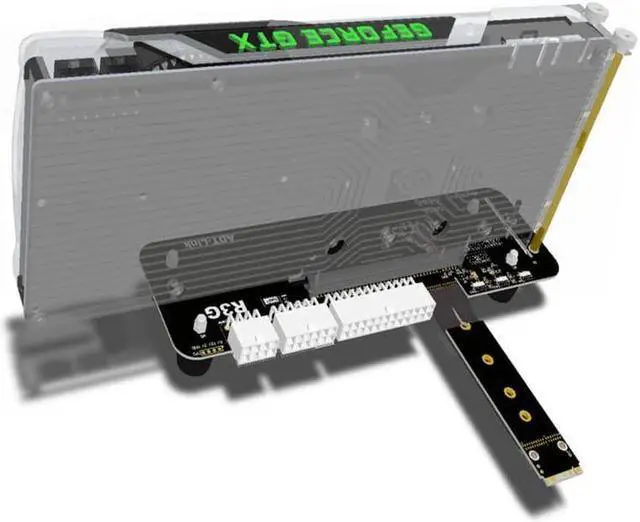

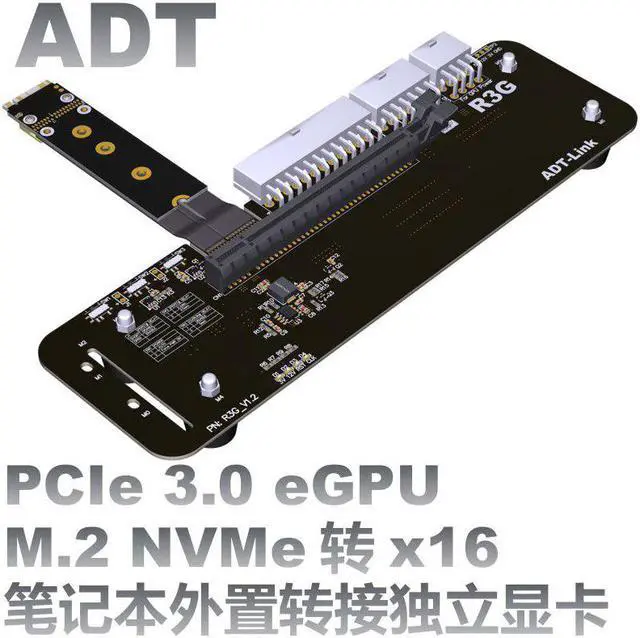

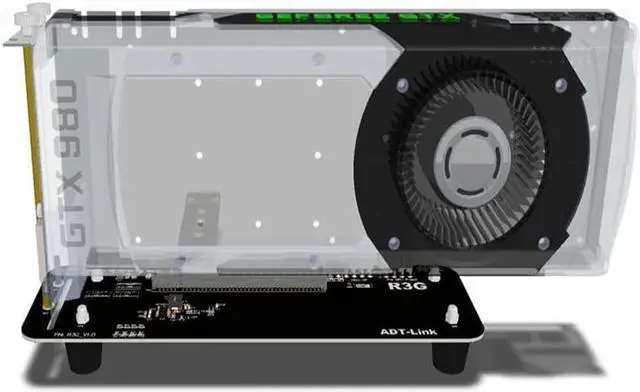

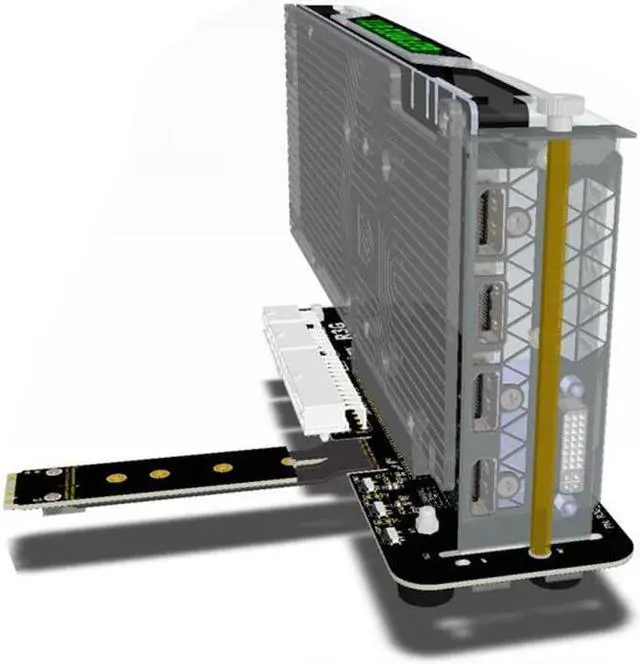

Product Photograph

The installation of hexagonal copper column is as follows:

Installation steps?
