2x 4-Pin Molex LP4 To 8-Pin PCI Express Video Card ATX PSU Power Adapter Cable

Description:

Features:

100% brand new and high quality.

Power your new motherboard by using your existing ATX power supply.

Combines two 4-pin Molex LP4 PC power supply connectors into one 8-pin PCI.

Express graphics card auxiliary power connector.

Two LP4 with 3 male pins on the first side, connecting to PSU.

One 8-pin PCI-E connector on the second side, connecting to PCI-E video card.

Specifications:

Item Type: PCI-E Grapchics Card Power Cable

Material: Plastic

Color: Black+Yellow

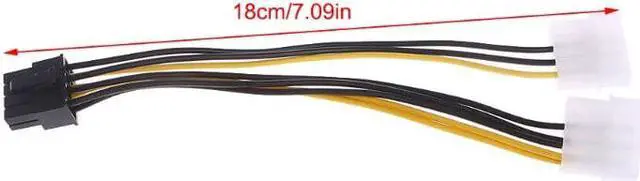

Cable Length: approx. 18cm/7.09 inch

Wire Gauge: 18AWG Tinned Copper - UL1007 Wire

Connector A1: 1 - 5.25" Molex 4 pin LP4 Male (pins: P1- 1 wire of 12V, P2- 1 wire of GND, P3- 2 wires of GND)

Connector A2: 1 - 5.25" Molex 4 pin LP4 Male(pins: P1- 2 wires of 12V,P2- 1 wire of GND,P3- 1 wire of GND)

Connector B: 8-pin PCI-E Male

Voltage: 12V DC

Quantity: 1 PC (other accessories demo in the picture is not included)

Note:

1.Transition: 1cm=10mm=0.39inch

2.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.

3.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

4.No retail package

Package includes:

1 X PC Motherboard Power Switch LED Cable
