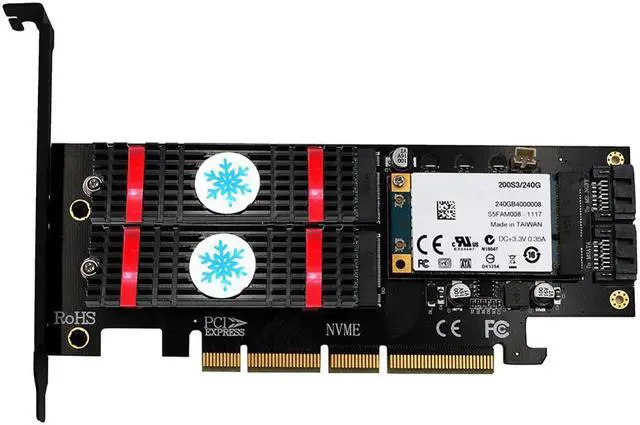

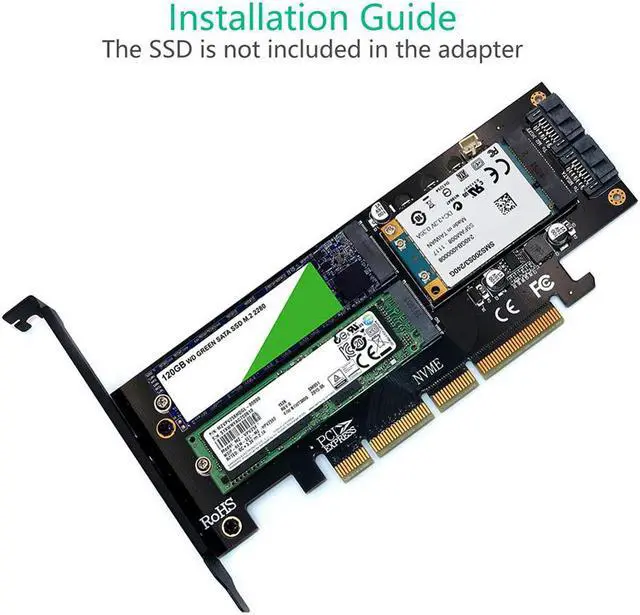

3 in 1 mSATA M.2 PCIE NVMe SSD to PCI-E 3.0 4X SATA 3.0 Adapter Card for M2 NVMe AHCI SATA mSATA Solid State Disk Converter

3 in 1 mSATA M.2 SSD to PCI-E 3.0 4X SATA 3.0 Adapter Card for NGFF M.2 NVMe AHCI SATA mSATA Solid State Disk Converter for Desktop Computers

Descriptions:

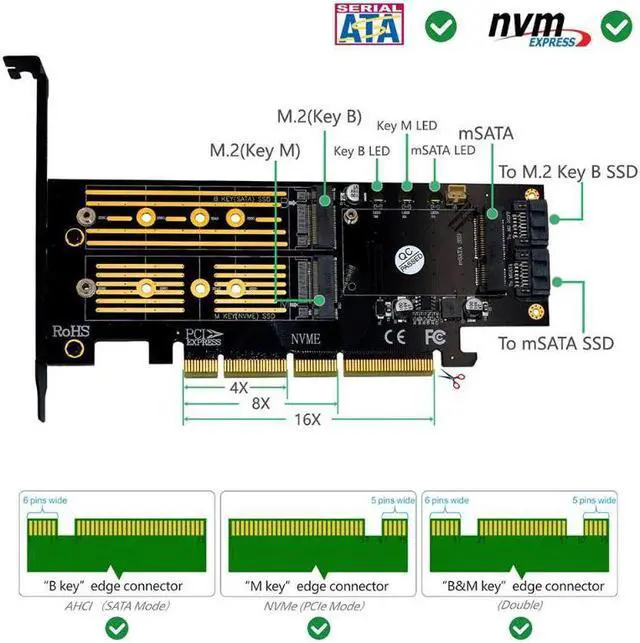

1. Supports PCIE M.2 SSD (NVMe or AHCI, Key-M), PCIE 3.0 X4 32 Gbps bandwidth, apply to 2280/2260/2242/2230mm

2. Supports SATA-based M.2 SSD (Key-B / B + M), SATA 6 Gbps bandwidth, apply to 2280/2260/2242/2230mm

3. Supports mSATA, 30x50mm, SATA 6 Gbps bandwidth

4. 3-channel SSD read/write LED indicator

6. Supports PCIe 2.0 ,3.0 and PCIe 4.0 motherboard

7. Supports 3 SSDs (M.2 PCIE-based SSDs, M.2 SATA-based SSDs and mSATA SSD) to work simultaneously.

8. M.2 NVME SSD to PCIE 3.0 x4 (32Gbps), no need to use SATA cable to connect to the PC.

9. When working with SATA M.2 to SATA III (6Gbps) and mSATA to SATA III (6Gbps), a SATA cable is required to connect the motherboard. (The product already contains 2 SATA cables)

10. This adapter is compatible for PCI-E 4X, 8X, 16X, but the speed only PCI-E 4X.

11. Product Size: 183 X 120 X 20mm/7.2 X 4.72 X 0.79"

Notes:

1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

2. Please allow 1-3mm measuring deviation due to manual measurement.

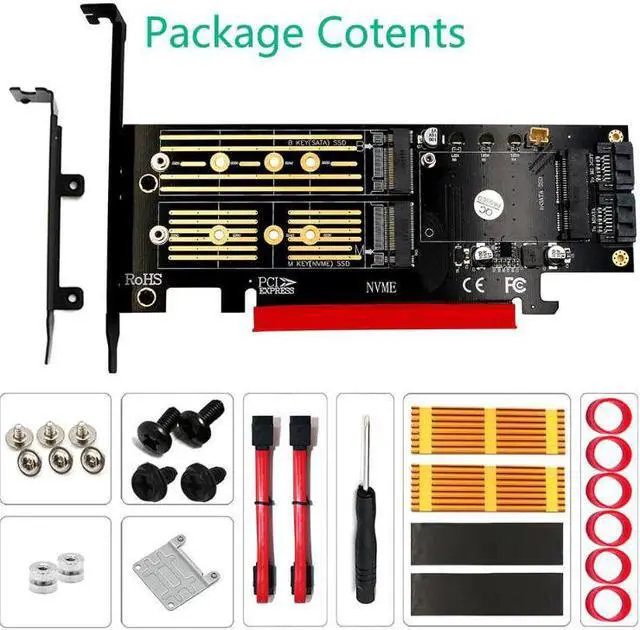

1 X SSD Adapter Card

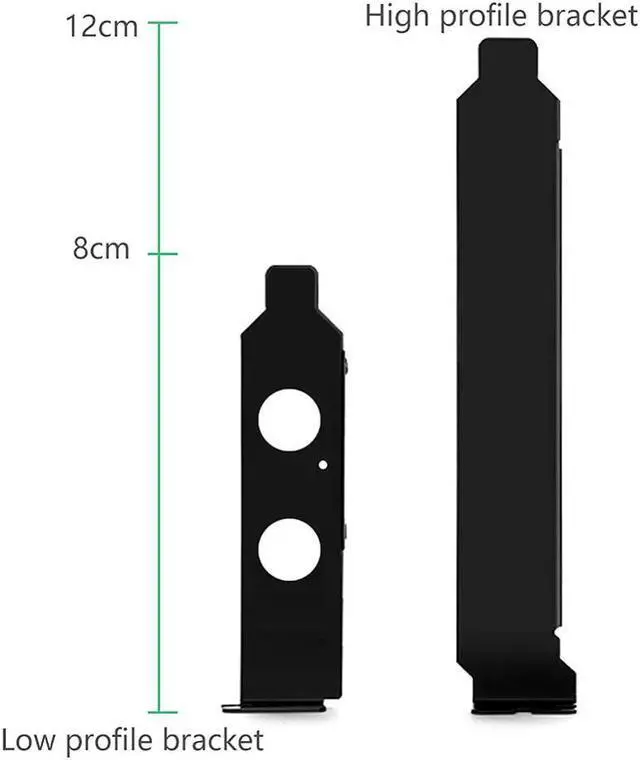

1 X I/O Bracket (1 X High/Low Profile)

1 X MiniCard Extender Bracket

2 X Aluminum Heatsinks

4 X Heat Conducting Silica Gel Pads (2pcs Thickness+2pcs Thin) optional

4 X Silica Gel Rings

2 X SATA Cables

1 X Screwdriver

1 X Screw Kit
