R42SF/R42SL/R42SR PCIe x4 3.0 Extension Cable PCI Express 4x To M.2 NVMe M Key 2280 Riser Card Gen3.0 Extender Line 32G/bps

ADT- PCI express 3.0 x4 to M.2 NVMe Extension Cable

Brand name: ADT-

Product name:PCIe x4 to M.2 NVMe extension cable

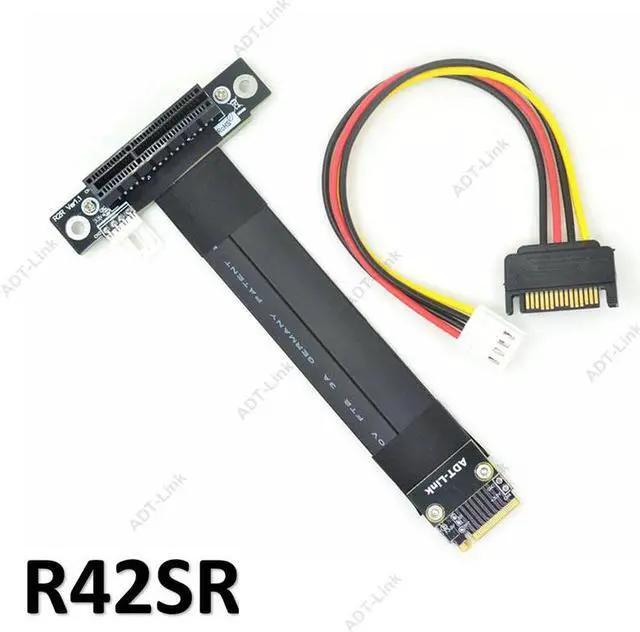

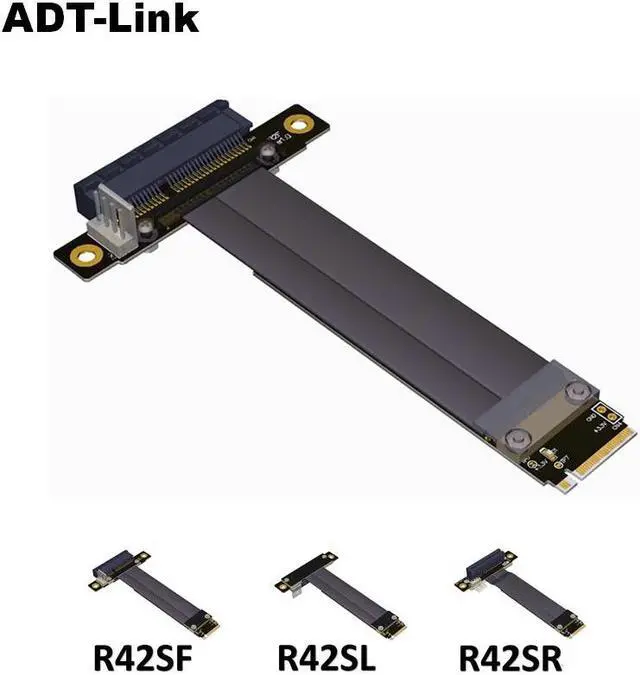

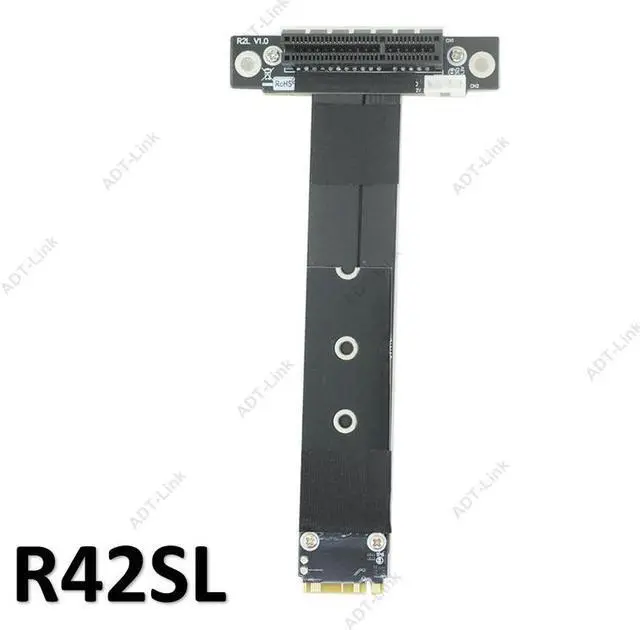

Product model:R42SF , R42SL , R42SR

Transferspeed:PCIe3.0 x4 full speed, gen3, 32G/bps (Max.)

Wire length:10 ~ 100 cm, the length can be customized,

Application: PCIe x4  SSD RAID, LAN, Capture cards to M.2(ultra SSD, M-key)extension

Product description: PCIe x4 to M.2 NVMe extender adapter for GPU graphics video cards.

Note: This product does not support notebook external.

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 10cm blue arrow in the figure below.

ADT R42 series Part-Number Description:

Product advantage:

1. Wire advantage, using German patented imported wire, using Taiwan imported Lotes connector, high frequency support PCIe 3.0 stable transfer.

2. Cable length advantage, from 10cm to 1 m, wire length can be customized according to customer needs.

3. The differential signal has no via design, there is no signal attenuation interference problem of parasitic capacitance and parasitic inductance, and there is no CAF micro short circuit, and the product is durable.

4. The product uses high-quality materials, PCB workmanship precision, copper thickness is thickened to 1oz, gold finger gold content is sufficient, gold-plated foot has good electrical conductivity, which can reduce the blue screen of the crash caused by the increase of oxidation and rust resistance. The signal transmission is stable at full speed and there is no compatibility problem.
