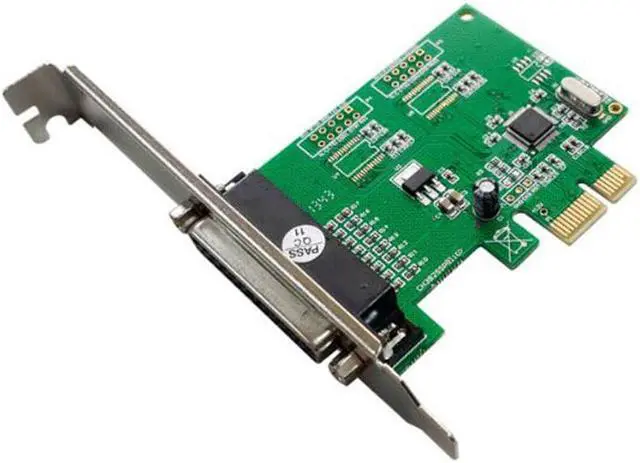

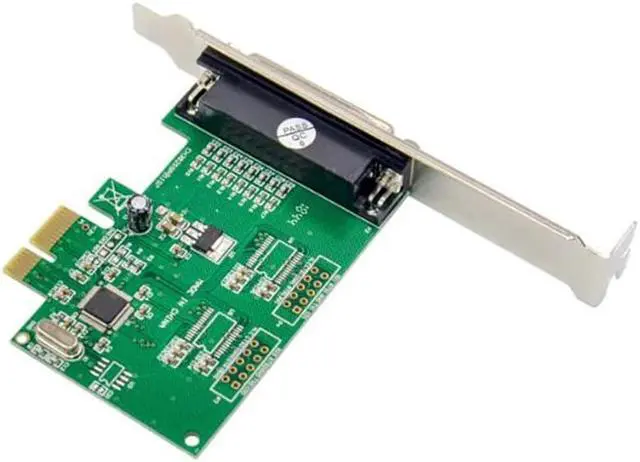

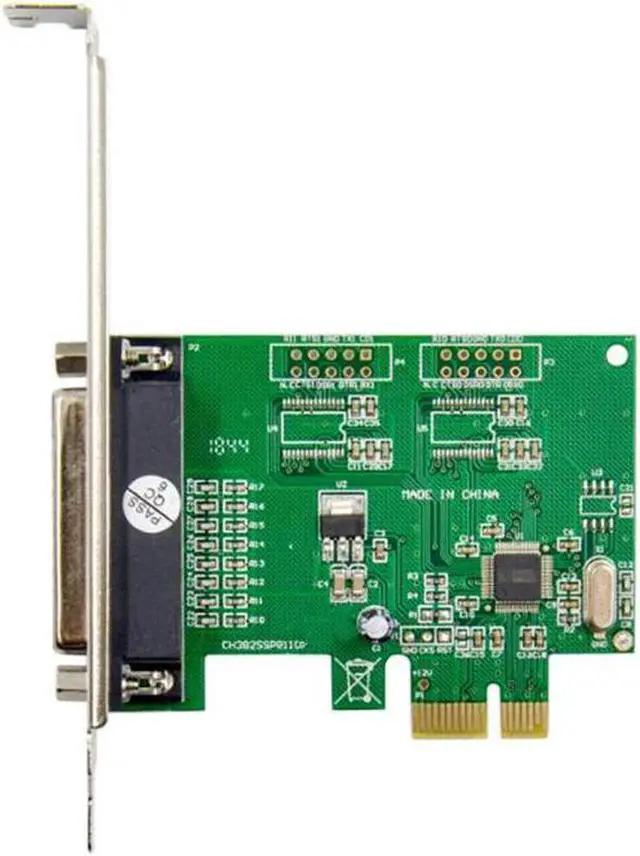

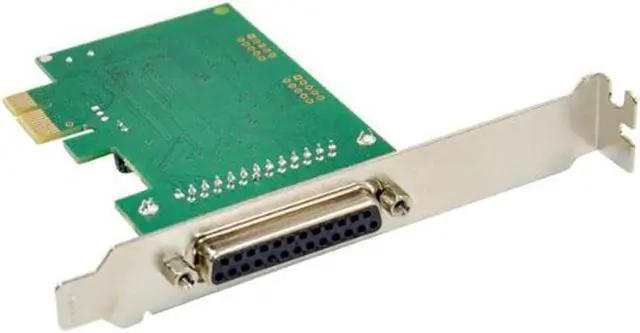

1 Port Parallel PCIe X1 Card PCI Express to DB25 LPT Printer Expansion Adapter Card Support SPP / PS2 / EPP/ECP Modes

1 Port Parallel PCIe X1 Card PCI Express to DB25 LPT Printer Expansion Adapter Card Support SPP / PS2 / EPP/ECP Modes

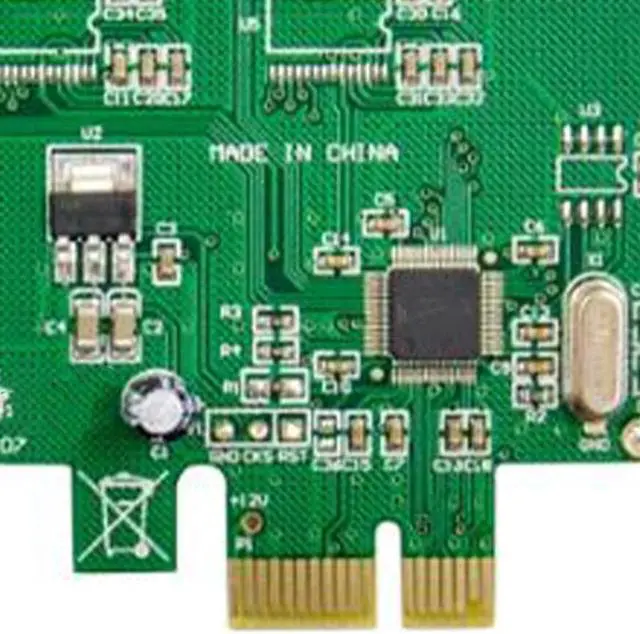

Feature:1. CH382 is a dual serial port and print port chip of PCI-Express bus, including two asynchronous serial ports compatible with 16C550 or 16C750 and an EPP / ECP enhanced bidirectional parallel port2. The asynchronous serial port provides a separate 256-byte FIFO buffer for receiving and sending, supports a communication baud rate of up to 8Mbps, and can be used for the expansion of the RS232 serial port of the PCI-E bus, the PCI-E high-speed serial port and serial port group with automatic hardware rate control Network, RS485 communication, parallel port / print port expansion, etc.3. The same chip can be configured as dual serial port, single parallel port / print port, dual serial port plus parallel port / print port of PCI-E bus4. Provide two-wire serial host interface, can connect serial EEPROM device like 24C0X to store non-volatile data5. 3.3V power supply voltage, main I / O pins support 5V withstand voltage, support serial port low power sleep mode6. Support SP128, Nibble, Byte, PS / 2, EPP, ECP and other IEEE1284 parallel / print port working methods, support bidirectional data transmission, and support transmission speeds up to 1M bytes per second7. Support Windows 98SE / ME / NT 4.0 / 2000 / XP / Vista / Server2003 / Win 7, LinuxSpecification:Name: PCI-E parallel port cardColor: GreenMaterial: ABS+MetalMotherboard size: 85*60mmPackage Contents:1*PCI-E Parallel Port CardOnly the above package content, other products are not included.Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
