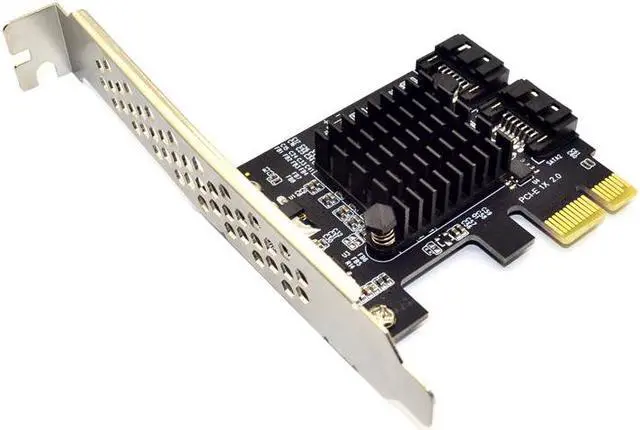

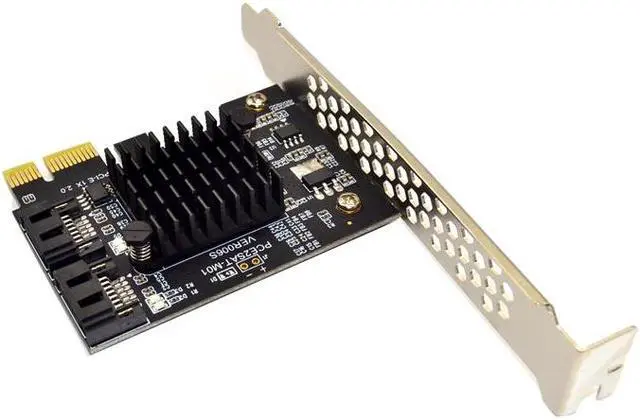

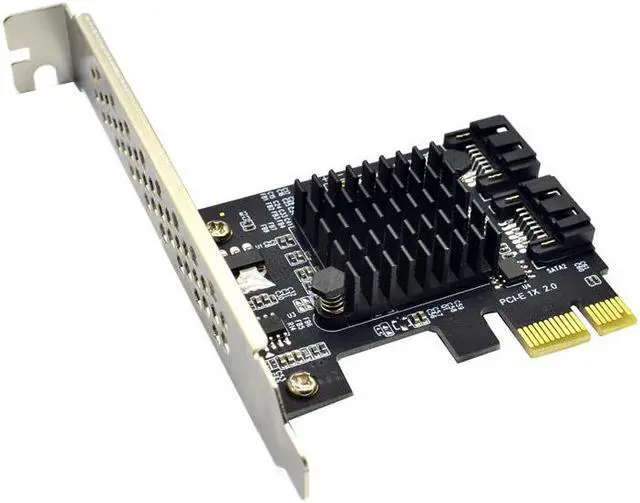

SATA 1X 4X 8X 16X Cards PCI Express to SATA 3.0 2-Port SATA III 6Gbps Expansion Adapter Boards with Marvel 9125 chip

Feature:

1. Compliant with Serial ATA Specification 3.0, down compatible with SATA2.0 SATA1.0.

2. Conformance to xpress v2.0 specifications, down compatible with xpress v1.0.

3. Supports communication speeds of 6.0Gbps,3.0Gbps and 1.5Gbps.

4. Supports Gen 1i,Gen 2i,Gen 2m, Gen 2x and Gen 3i.

5. Supports two SATA Ports.

6. Supports AHCI 1.0 and IDE modes.

7. Supports Native Command Queuing(NCQ)

8. Supports Port Multiplier FIS based switching or command based switching.

9. Supports Hot Plug and Hot Swap.

10. Compatible with SATA 6G,3G and 1.5G Hard Drives

Specification:

Product interface: 1X 4X 8X 16X

Chipest: Marvel 9125

Support specification: SATA3.0 7PIN

Bus interface: xpress X1 slot

Extension interface: 2 SATA3.0 interfaces

System requirements: there is an available PCI Express X1 slot, while supporting X2 X4 X8 X16

Operating system: Windows10/8/7 (32/64 bit) / Vista (32/64 bit) / XP/2003/2008/linux

Package content:

1 x to SATA 3.0 Extension Card

1 x Small and Big Bracket

1 x Screw

Note:

1. Please use SATA3.0 data line to achieve the best results

2. slot must have a V2.0 or higher slot, V1.0 will not exceed 250M, is X1 or X16 as long as it is V2.0 version, there is spare X16 slot directly inserted On the X16 slot,

3. BOIS setting of the motherboard: SATA mode should be changed to AHCI, although some motherboard PCIE is version 2.0, but BOIS does not enable high-speed transmission mode by default (gen2 high speed mode) needs to be manually turned on under 1.0 only 200- 250M, 2.0 below 350-400M

Note:
