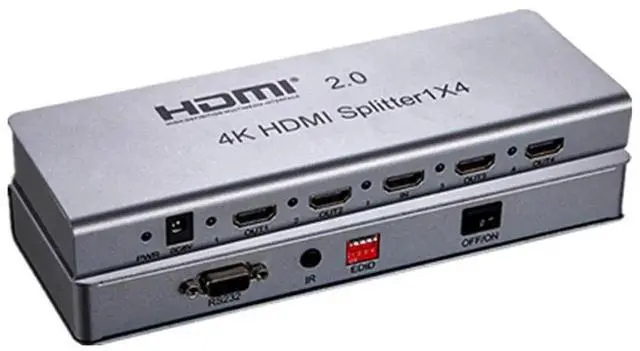

1x4 HDMI 2.0 Splitter, 4 Port 4K HDMI Splitter 1 in 4 Out HDMI Switcher Support 4K/60HZ 1080P 3D HDCP2.2 EDID RS232 for HDTV/Blu-Ray Player/DVD/DVR/Xbox etc

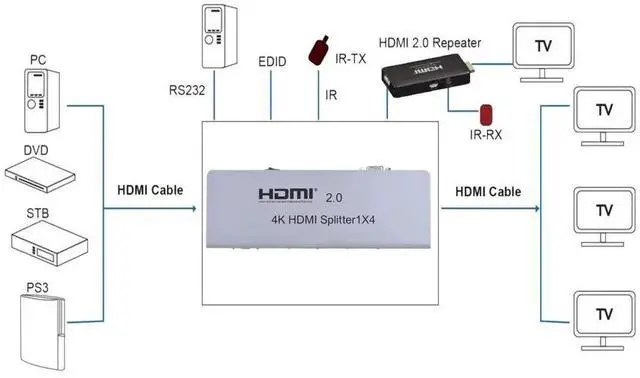

This1x4 HDMI 2.0 Splitter use a single HDMI source,accessing to multiple HDMI sinks. It allows one HDMI device to be split easily to 4 HDMI compatible monitors or projectors. In addition,it can be placed at the end of a long HDMI cable to regenerate the HDMI signal. The resolution of this hdmi splitter can be up to 3840X2160/60Hz.

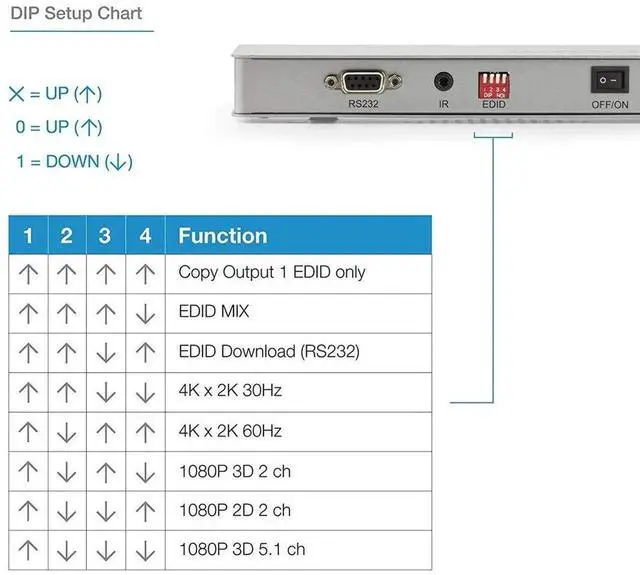

1x4 HDMI 2.0 Splitter can support EDID management function, comes with eight kinds of EDID mode, the users can choose according to their own needs. In addition, it is with built-in IR extension function, it can work with our hdmi 2.0 repeater which has IR-RX to receive the IR command to control the source.
Distributes HDMI input into Two identical outputs Supports: 480i, 480p, 720i, 720p,1080i 1080p ,3D, 4Kx2K resolution.
Support AWG26 HDMI standard cable:when the resolution is 1080p and below, input up to 8 meters,output to 8 meters.when the resolution is 4K, input up to 8 meters, output up to 8 meters.
+
+
Overview
Specs
Reviews
Additional Features
The heavy-duty cool metal enclosure protects the insides and keeps the unit cool by aiding in quick heat absorption and dissipation.
Learn more about the Detailed Specifications
Additional Information
