8K Displayport to HDMI + DP Splitter DP to HDMI Converter DP 8K@30Hz 4K@120Hz High speed 32.4Gbps for (DP HD) Dual Port Simultaneous Displays Support SST and MST

Remarks

1.Need external power supply: when using, please make sure to use USB cable to power the switch.

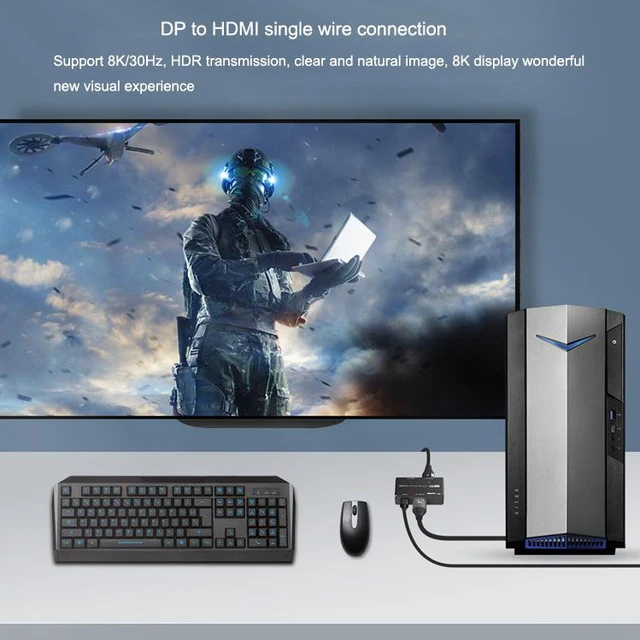

2.In MST expansion mode, the HDMI or DP single port output can reach 8K@30Hz 4K@120Hz, and the two ports output can reach 4K@60hz at the same time.

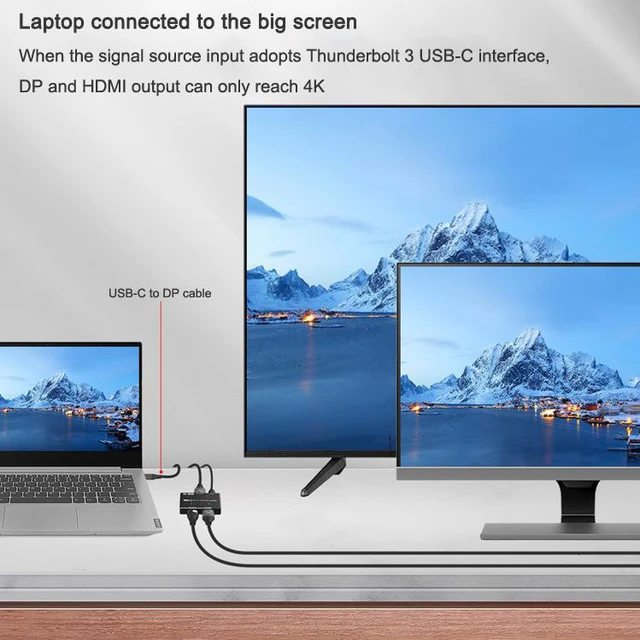

3.When the signal source input adopts Thunderbolt 3 USB C interface, DP and HDMI-Compatible output can only reach 4K.

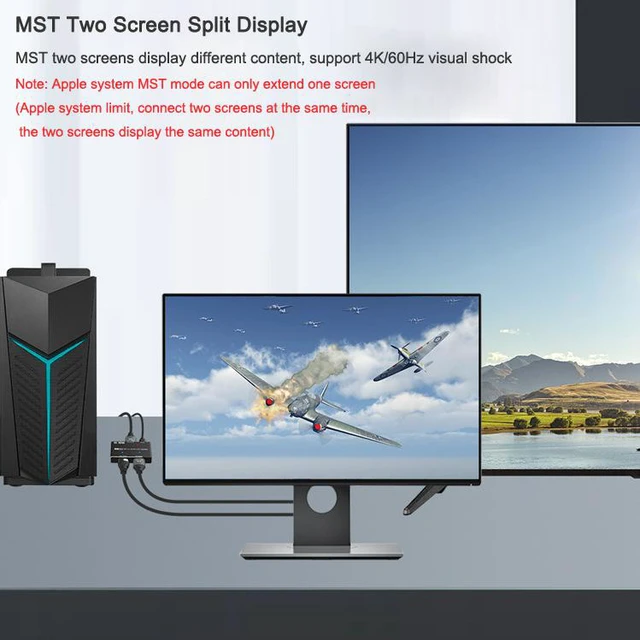

4.MST mode of Apple system can only extend one screen (limited by iOS System).

5.The splitter does not include DP and HDMI cables, the cables need to be purchased separately!



INTRODUCTION

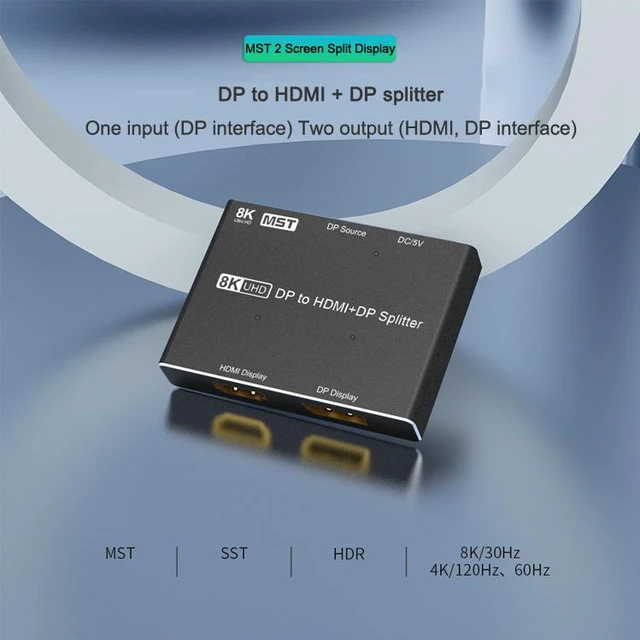

This super slim DP to DP+HDMI splitter is compact and efficient.

It allows you to assign a high-definition source to one monitor and one TV at the same time without any signal los.

The system is compatible with DP 1 . 4 ?1 . 3 ?1 . 2 ?1 . 0 and HDMI 2 . 1 ?2 . 0 ?1 . 4 ?1 . 3 , Support 3 Dand 4K ?8K ultra HD ,Support SST and MST.

This splitter is ideal for home, office, school, hotel and any other installation that requires 2 ultra-high source display devices.



FEATURES

1.Compatible with all DP inputs and HDMI?DP outputs.

2.Comply with DisplayPort 1.4, 1.3, 1.2 and 1.0 specifications.

3.Support Compatible resolution:

8K@30Hz 4K@120Hz?60Hz 1440P@165Hz ?144Hz?120Hz?60Hz(165hz, 144hz HDMI-Compatible output not supported)

1080P@240Hz ?165Hz?144Hz?120Hz?60Hz(165hz, 144hz HDMI-Compatible output not supported)

((Depends on your graphics card, monitor, TV, operating system and DP cable, HDMI-Compatible cable support))

4.Support operating system: IOS system, windows system,Android system

5.Support HDR

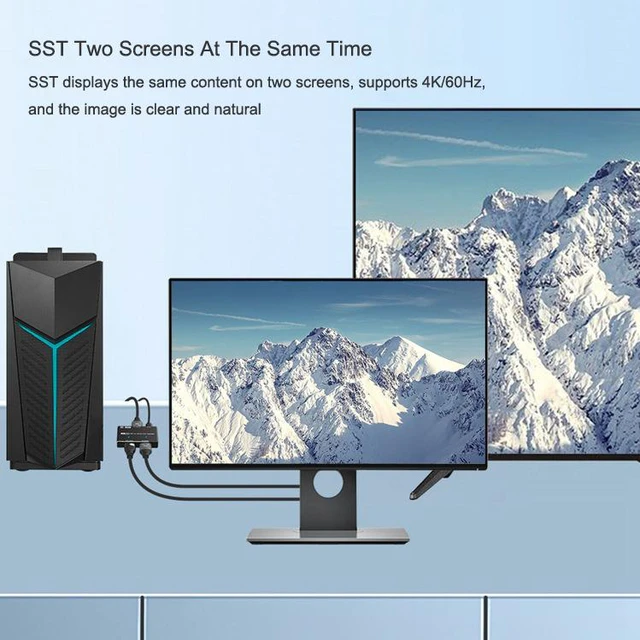

6.Support SST (mirror) and MST (Extended) mode

7.Support 4:4:4, 4:2:2, 4:2:0



SPECIFICATION

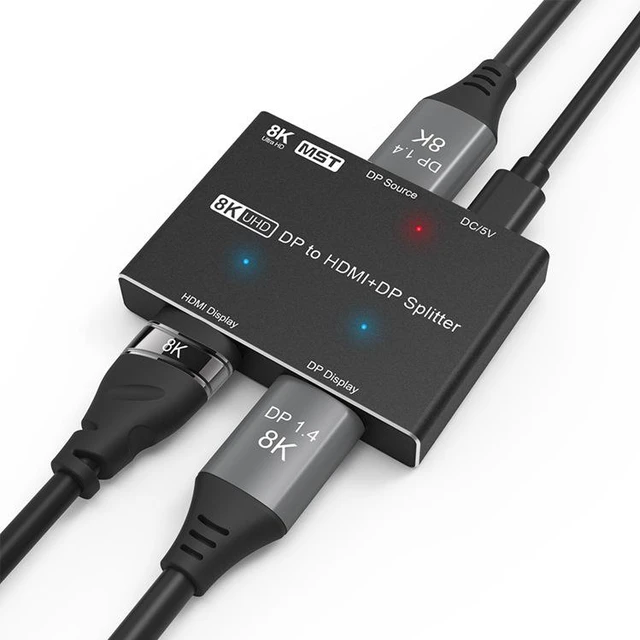

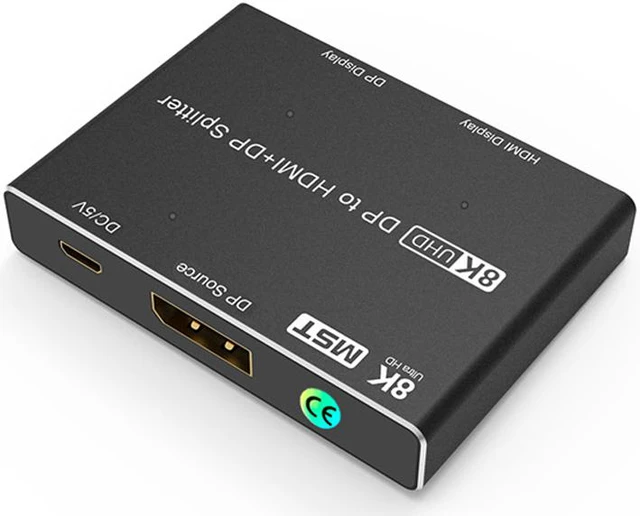

Input Port: 1 x DP Female, 1 x USB Micro B Female

Output Port: 1 x DP Female, 1 x HDMI A Female

Bandwidth:32.4Gbps

Operating Temperature:-15?~55?/5°F~131°F

Deep Color:8bit/10bit/12bit

Chroma: 4:2:0 / 4:2:2 / 4:4:4

Chassis: Aluminium alloy Shell

Dimension:7.0mm(L)x51.7mm(W)x13.0mm(H)

Weight:83.0g
