4K@60fs HDMI Splitter 1x4 HDMI 2.0 Splitter 4 Display (Same Time) 3.5mm Audio Output Optical SPDIF Toslink with Power Supply for HDTV Blu-ray DVD HD-DVD Players PS3 PS4 XBOX PC laptop

4K@60fs HDMI Splitter 1x4 HDMI Splitter 4 Display (Same Time)with Power Supply for HDTV Blu-ray DVD HD-DVD Players PS3 PS4 XBOX PC laptop



Product introduction:

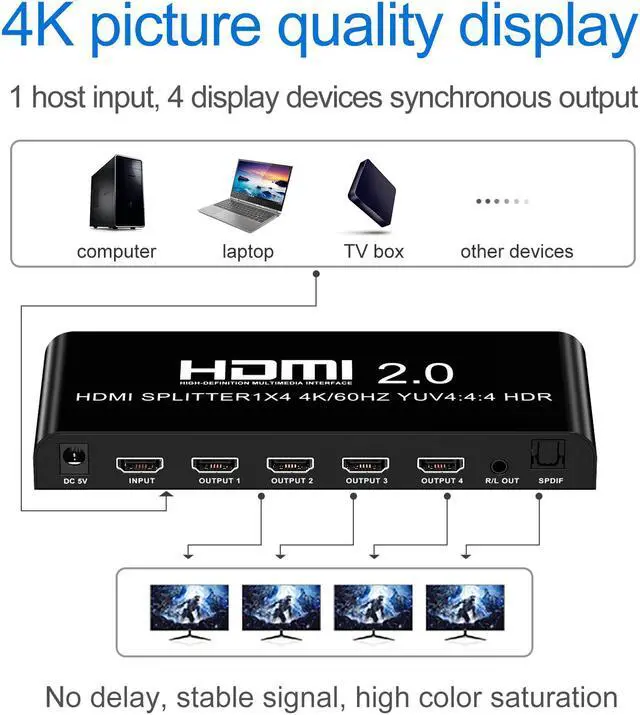

This 1x4 HDMI splitter can connect set-top boxes, DVD players, laptops, PS3, PS4, XBOX game consoles, HDTVs and other high-definition devices to 4 display devices through the HDMI output interface, so that the 4 display devices can display the same screen.KEY_TAB

This product is commonly used in automatic EDID mode, which can display pictures when connected to 4 display devices with different resolutions



Features:

One HDMI signal input, allocated to 4 HDMI outputs.

HDMI resolution supports 4K/60fs

Support automatic EDID, support different resolution output

Support Blu-ray DVD24/50/60fs/HD-DVD/xvYCC

Support audio and video formats DTS-HD/Dolby-trueHD/LPCM7.1/DTS/DOLBY-AC3/DSD

Support signal retiming

Use AWG26 HDMI 2.0 standard cable, the input transmission distance can reach 10 meters, the output transmission distance can reach 10 meters (1080P resolution), the input transmission distance can reach 8 meters, and the output transmission distance can reach 8 meters (4K resolution) rate)

Video and audio lossless transmission

Simple installation



Product parameters:

HDMI supports HDCP version:HDCP 2.2

HDMI input and output resolution:support 4K/60fs

HDMI supports video color format:2160p,10/12 bits, 24/25/30Hz, 2160p, 10/12 bits, 50/60Hz

HDMI transmission bandwidth:600MHz

HDMI supports audio formats:DTS-HD/Dolby-TrueHD/LPCM7.1/ DTS/Dolby-AC3/DSD

HDMI transmission speed:18 Gbps

Input and output TMDS signal:0.5~1.5Vp-p (TTL)

Input and output DDC signal:5Vp-p(TTL)

HDMI input cable length:=m AWG26 HDMI standard cable

HDMI output cable length:=m AWG26 HDMI standard cable

Working current:300mA

Power adapter specifications:AC 100V-240V 50/60HZ, DC 5V/1A

Operating temperature:-10~+55?

Storage temperature:-20~+60?

Working humidity:10~90%RH (no condensation)

Storage humidity:5~95%RH (no condensation)

Shell size:112×55×18 (mm)

weight:135g



Package Contents:

Distributor:1pcs

DC5V/1A power adapter:1pcs

User Manual:1pcs
