Warm Tips:
1. Need external power supply: when using, please make sure to use USB cable to power the switch.

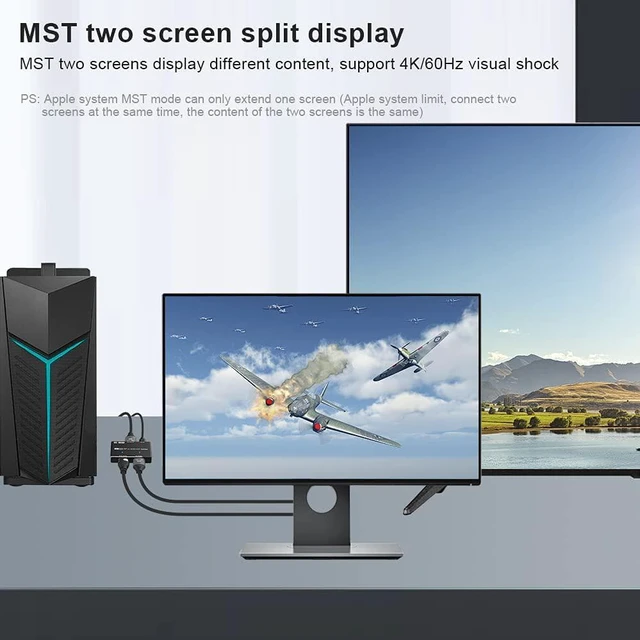

2. In MST extended mode, HDMI-compatible single port output can reach 8K@30Hz, 4K@120Hz. Displayport single port output can reach 8K@30Hz, 4K@144Hz. Displayport and HDMI-compatible 2 ports can only reach 4K@60hz when output at the same time.

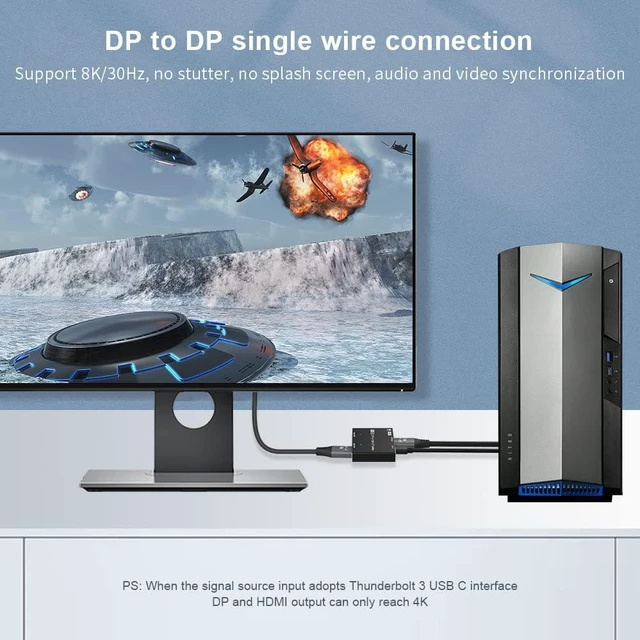

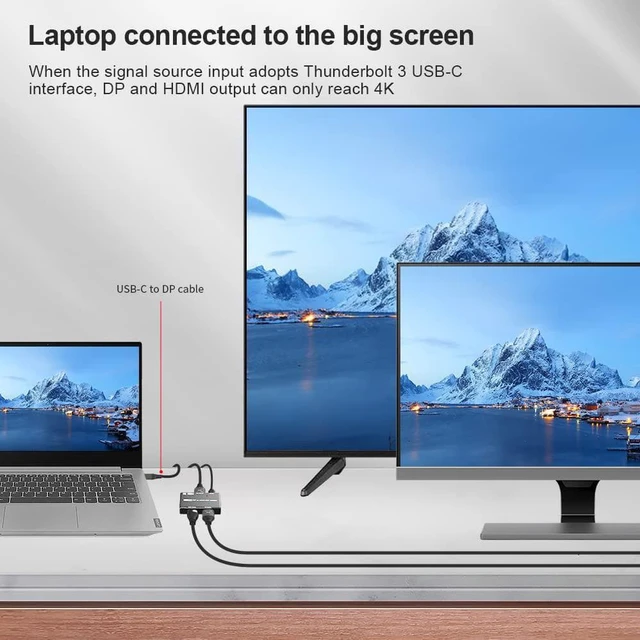

3. When the signal source input adopts Thunderbolt 3 USB C interface, DP and HDMI-Compatible output can only reach 4K.
4. MST mode of Apple system can only extend one screen (limited by iOS System).
5. The splitter does not include DP and HDMI-compatible cables, the cables need to be purchased separately!
1. Note In MST extended mode, HDMI-compatible single port output can reach 8K@30Hz, 4K@120Hz. Displayport single port output can reach 8K@30Hz, 4K@144Hz. Displayport and HDMI-compatible 2 ports can only reach 4K@60hz when output at the same time
2. When the signal source input adopts Thunderbolt 3 USB C interface, DP and HDMI-Compatible output can only reach 4K

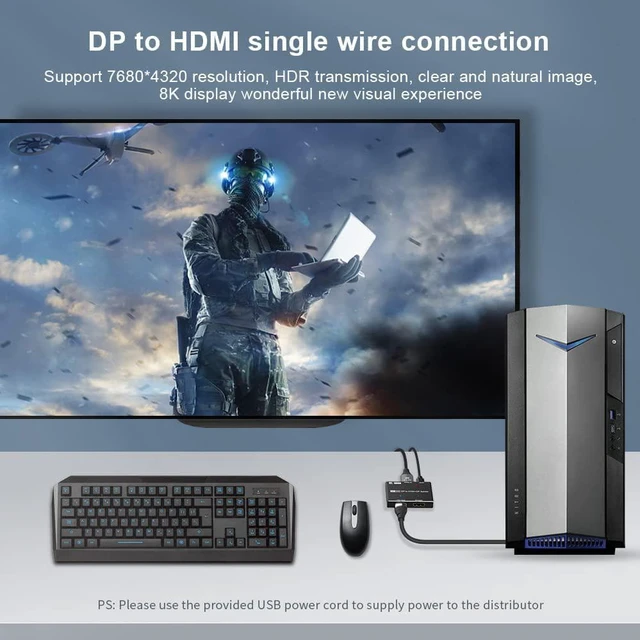

3. Need external power supply: when using, please make sure to use USB cable to power the switch
4. MST mode of Apple system can only extend one screen (limited by iOS System)
1. Comply with DisplayPort 1.4, 1.3, 1.2 and 1.0 specifications
2. Compatible with all DP inputs and HDMI-Compatible, DP outputs
3. Support Compatible resolution:
8K@30Hz.
4K@144Hz,120Hz,60Hz
1440P@165Hz,144Hz,120Hz,60Hz.(HDMI does not support 165hz, 144hz output)
1080P@240Hz, 165Hz, 144Hz,120Hz,60Hz. (HDMI does not support 165hz, 144hz output)
4. Support operating system: IOS system, windows system,Android system
1.Input Port: 1 x DP Female, 1 x USB Micro B Female
2.Output Port: 1 x DP Female, 1 x HDMI-Compatible A Female
3.Bandwidth:32.4Gbps
4.Operating Temperature:-15~55/5°F~131°F
5.Deep Color:8bit/10bit/12bit
6.Chroma: 4:2:0 / 4:2:2 / 4:4:4
7.Chassis: Aluminium alloy Shell
8.Dimension:7.0mm(L)x51.7mm(W)x13.0mm(H)
9.Weight:83.0g
INTRODUCTION

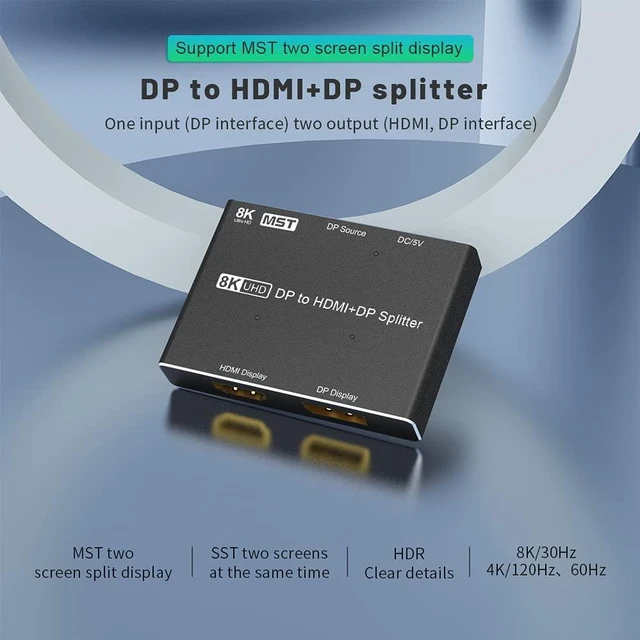

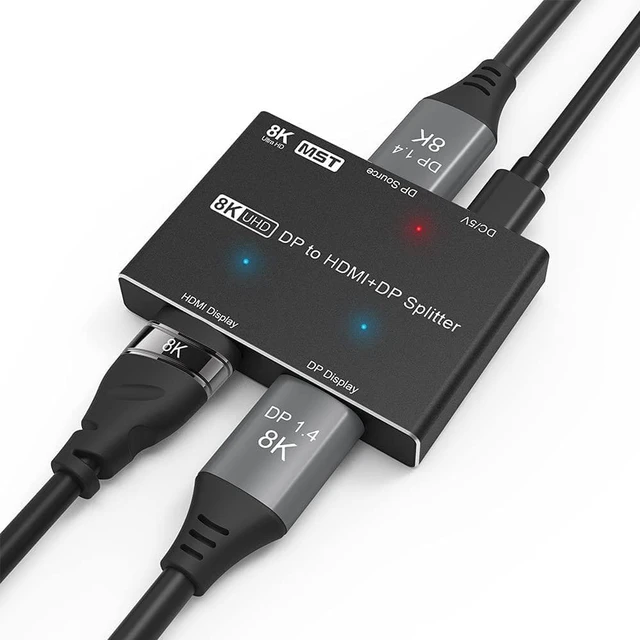

This super slim DP to DP+HDMI-Compatible splitter is compact and efficient.
It allows you to assign a high-definition source to one monitor and one TV at the same time without any signal los.
The system is compatible with DP 1.4 , 1.3, 1.2 , 1.0 and HDMI-Compatible 2.1,2.0 , 1.4, 1.3 , Support 3 Dand 4K, 8K ultra HD, Support SST and MST.
This splitter is ideal for home, office, school, hotel and any other installation that requires 2 ultra-high source display devices.
FEATURES
1. Compatible with all DP inputs and HDMI-Compatible, DP outputs.
2. Comply with DisplayPort 1.4, 1.3, 1.2 and 1.0 specifications.
3. Support Compatible resolution:
8K@30Hz 4K@144Hz, 120Hz, 60Hz 1440P@165Hz , 144Hz, 120Hz, 60Hz(165hz, 144hz HDMI-Compatible output not supported)
1080P@240Hz, 165Hz, 144Hz, 120Hz, 60Hz(165hz, 144hz HDMI-Compatible output not supported)
((Depends on your graphics card, monitor, TV, operating system and DP cable, HDMI-Compatible cable support))
4. Support operating system: IOS system, windows system,Android system
5. Support HDR

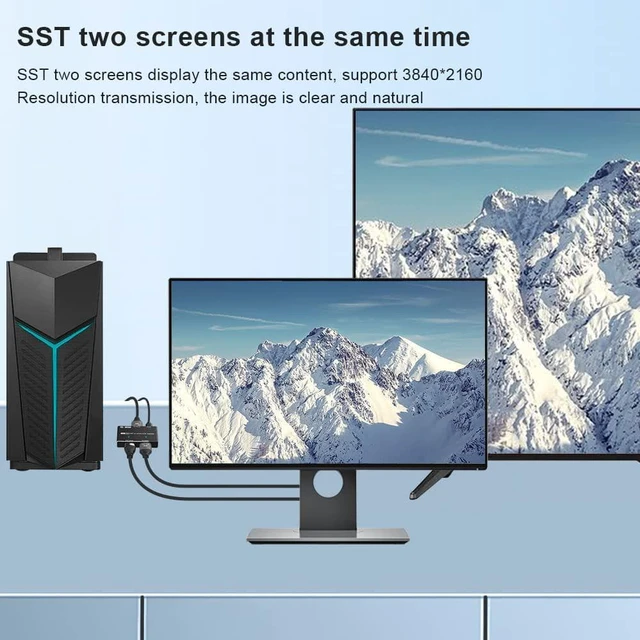

6. Support SST (mirror) and MST (Extended) mode
7. Support 4:4:4, 4:2:2, 4:2:0
SPECIFICATION
Input Port: 1 x DP Female, 1 x USB Micro B Female
Output Port: 1 x DP Female, 1 x HDMI-Compatible A Female
Bandwidth:32.4Gbps
Operating Temperature:-15~55/5°F~131°F
Deep Color:8bit/10bit/12bit
Chroma: 4:2:0 / 4:2:2 / 4:4:4
Chassis: Aluminium alloy Shell
Dimension:7.0mm(L)x51.7mm(W)x13.0mm(H)
Weight:83.0g
PACKAGE CONTENTS
- 1 x DP to DP+HDMI-Compatible Splitter
- 1 x USB a to USB micro B cable
- 1 x User manual
