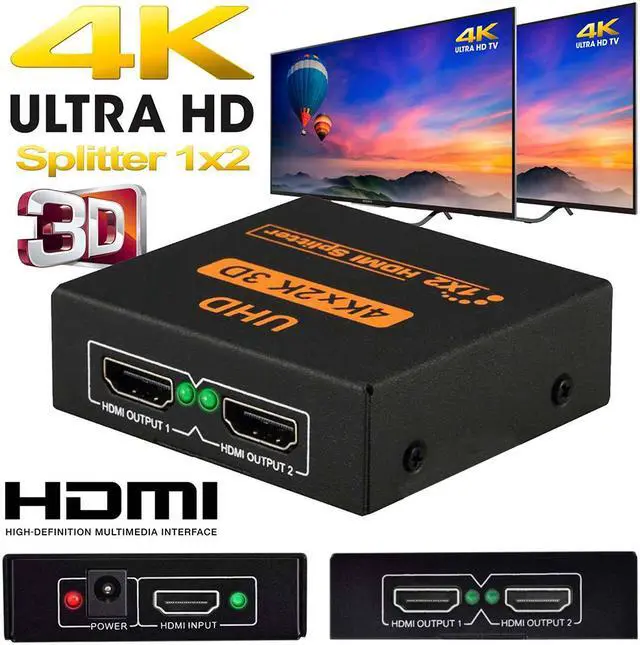

4K 1X2 HDMI Splitter 1 in 2 Out HDMI Switch 3D HD Splitter 2 Ports HUB HDMI Repeater for HDMI Adapter Dual Display for HDTV/DVD/Projector

Overview:

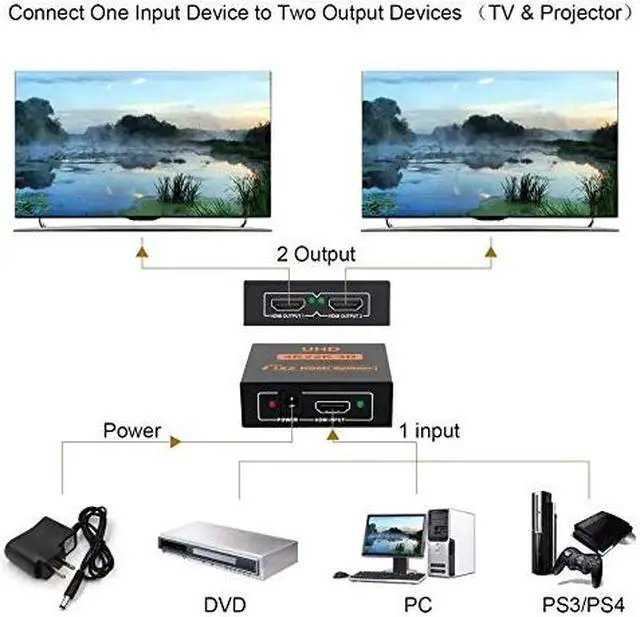

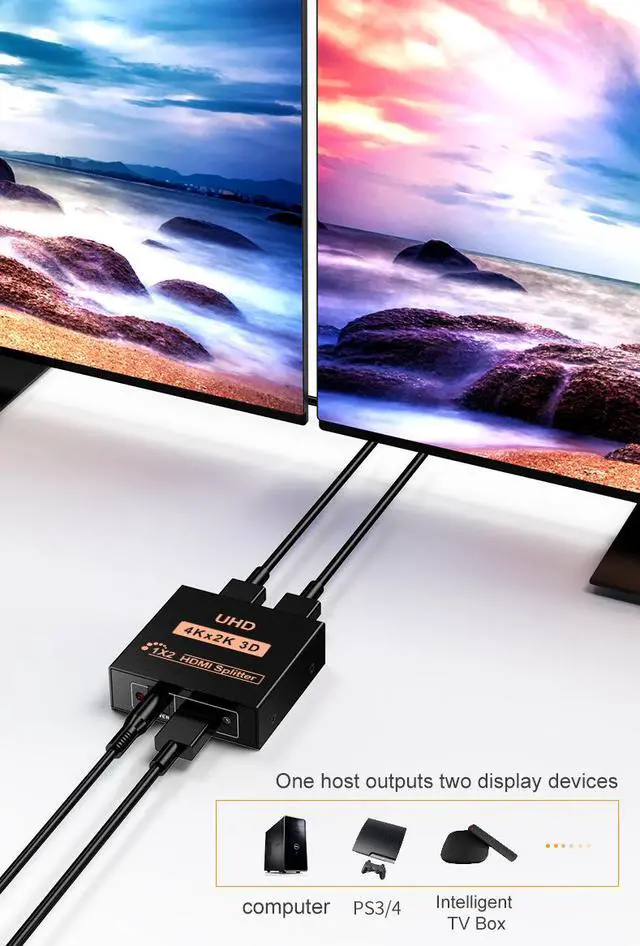

4K HDMI Splitter 1X2 distributes 1 HDMI source to 2 HDMI displays simultaneously with 3D compatibility.
It provides HD solutions for HDTV retail and display sites, HDTVs, STBs and DVDs.
Ideal for projector factories, noise, space and security issues, data center control, information distribution, boardroom demonstrations, school and corporate training environments.

Features:

2 in 1 HDMI splitter
Support HDCP 1.4
Support highest video resolution 2K 4K 3D
Support the max baud rate of 3.4G and max bandwidth of 340Mhz
Displaying single source, multi-output high-definition signal source from DVD player A / V receiver, set-top box
Multifunctional on switching:intelligent or mechaical
Support uncompressed audio such as LPCM
Support compressed audio such as DTS digital,dolby digital(including DTS-HD and Dolby True HD)
Support deep color 8/10/12bit

Specifications:

Item Name: 4K*2K 3D HDMI Splitter
Type: 4K*2K 3D HDMI Splitter 1 In 2 Out (1X2)
Material: Durable Hard Metal
Color: Black
HDMI input:1 HDMI
HDMI output:2 HDMI
HDMI Version: HDMI 1.4b
Connection Split/Duplication: 1 : 2
Connector A: HDMI 1.4 Standard Female
Connector(s) B: HDMI 1.4 Standard Female
HDMI resolution: Up to 4K 3840*2160/30Hz
Video Color Formats: 8/10/12 bit deep color
Audio Formats: Dolby-AC3, Dolby True HD, DTS, DSD, DTS-HD
Video formats supported VGA: 640x480, 800x600, 1024x768, 1280x1024, 3840x2160
Video formats supported - DTV/HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Compliant with: VGA, AVGA, XGA, SXGA, UXGA
Max bandwidth:340MHz
Max baud rate:3.4Gbps
Input cable distance:=8m AWG26 HDMI standard cable
Output cable distance:=8m AWG26 HDMI standard cable
Power Supply: Input: (50HZ, 60HZ) 100V-240V 0.1A; Output: DC 5V/1A (Power Adapter included)

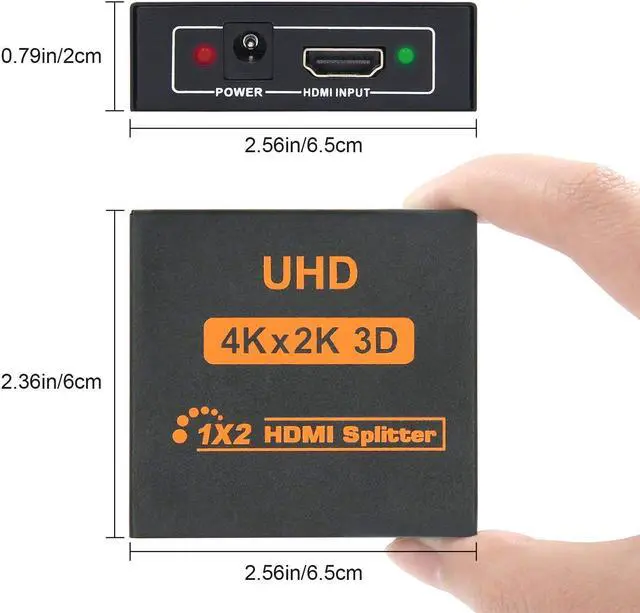

HDMI Splitter Size(L.W.H): 6.5×5.2×2.1cm (Approx.)
Max working current:500mA
Operating Temperature range:(-15 to +55?)
Operating Humidity range:5 to 90%RH (No Condensation)
Weight:165g

Package Content:

1*HDMI splitter
1*Plug Adapter
1*User Manual
