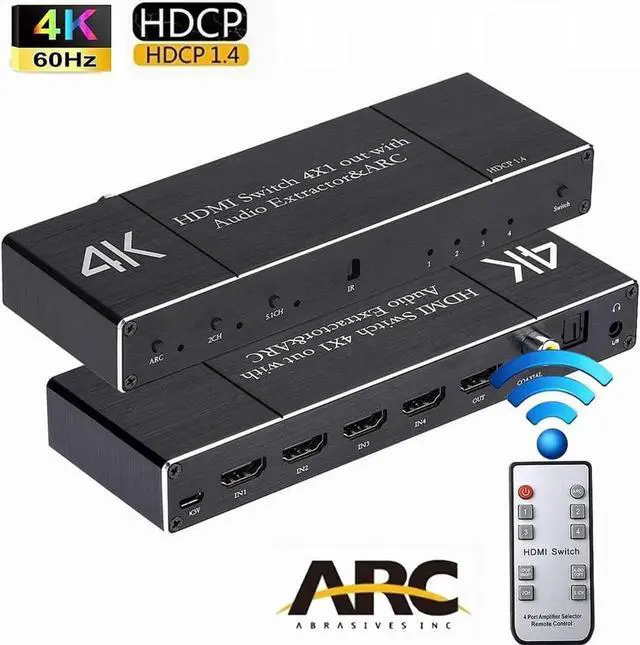

4K HDMI 2.0 Switch 4x1 HDMI Switcher Audio Extractor with SPDIF Coaxial 3.5mm Audio Out With ARC For PS3 PS4 Apple TV HDTV

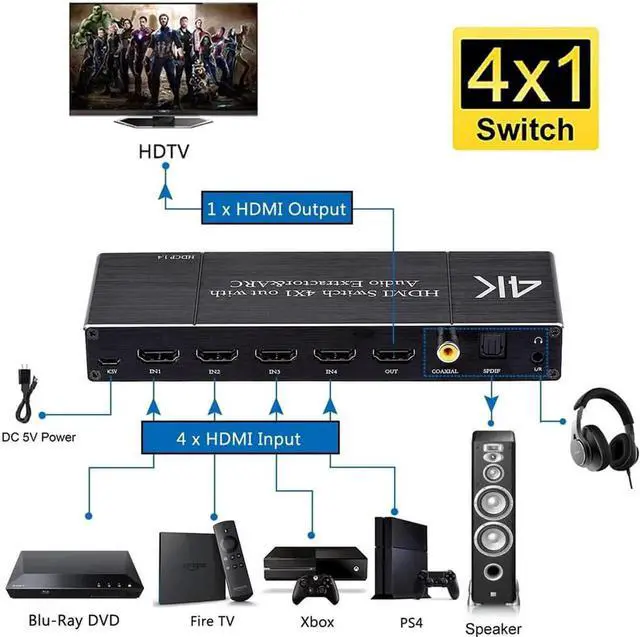

This HDMI Switch support 4 HDMI Inputs to 1 HDMI Output, can be applied for connection, signal amplification, multi-picture conversion and for selection between computer/PC, STB/Smart Box, DVD Player, Blue-ray Player, PS3/PS4 Pro and LCD TV, LCD, Projector, as well as an Audio/Video receiver.

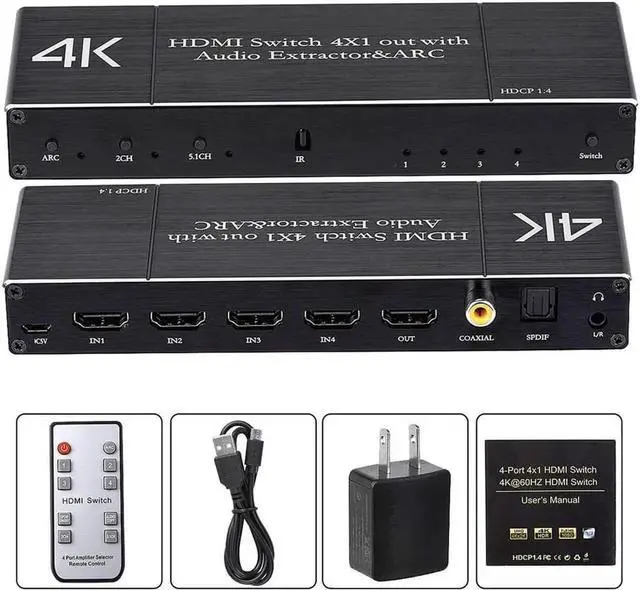

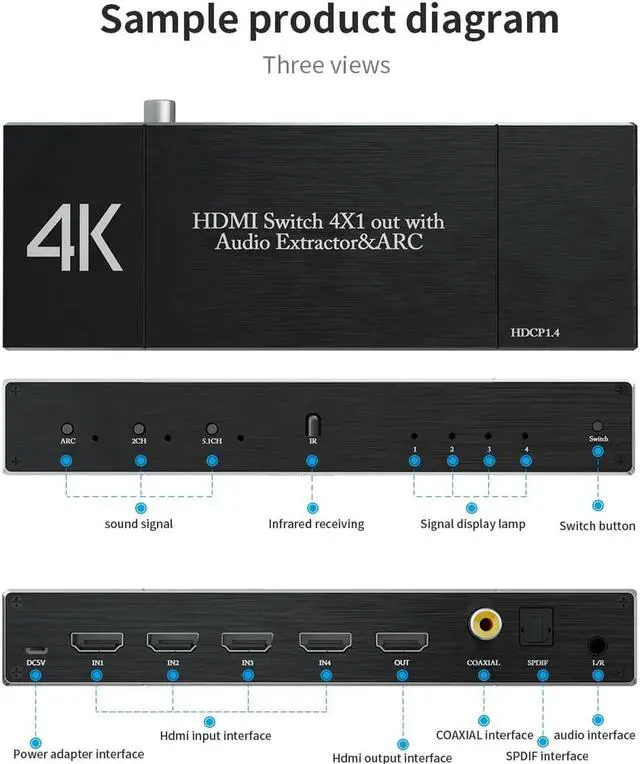

-Input: HDMI x 4

-Output: HDMI x 1, Toslink x 1, 3.5 mm L/R x 1, Coaxial x 1

-Coaxial and Toslink port output support

ARC. (Note: 3.5 mm audio port not support ARC function)

-support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@20/30Hz with 24bit RGB/ YcbCR 4:4: 4/YcbCR 4:2: 2 (4k@60hzYUV 4:2: 0)

-Max bandwidth per channel: 300MHz.

Max baud rate per display: 10.2G bps

-Supports Dolby True-HD, DTS-HD, AC3, DTS, DSD. This HDMI Switch will output the Dolby True-HD, DTS-HD, AC3, DTS, DSD audio format, But can't decode these audio formats.

-HDMI input and output hdmi 2.0 cables can reach up to 3 meters if your Resoltion up to 4K@60HZ; can reach up to 5 meters if your Resoltion up to 4K@30HZ
