$82.16
Ships from China.
Meet Your Seller

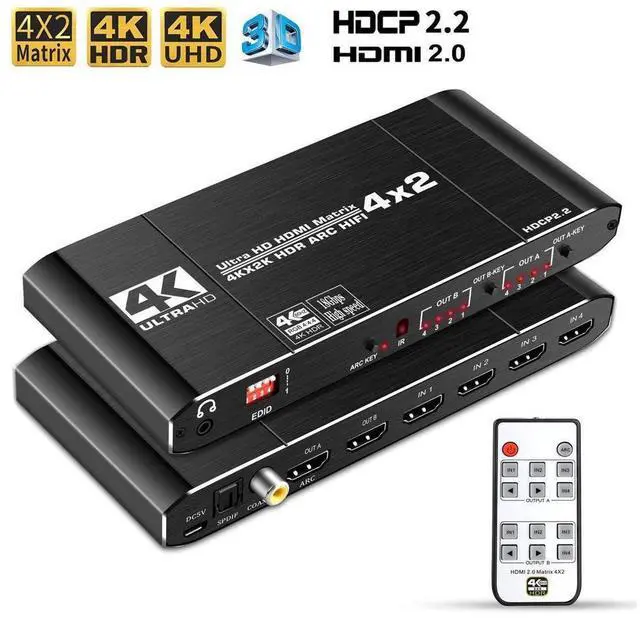

HDMI 2.0 Matrix Switcher Splitter 4x2 4K@60Hz HDR UHD 18Gbps ARC Audio Extractor SPDIF Coaxial 3.5mm Audio EDID Setting HDCP2.2 eokCXOY
- 4K@60Hz Matrix 4x2 18.5 Gbps HDMI-compatible Switch Splitter with SPDIF and L/R 3.5mm HDR 4x2 Support HDCP 2.2 3D
- HDMI Compliance:HDMI 2.0b
- HDCP Compliance:HDCP 2.2 and HDCP 1.4
- Video Bandwidth:4K2K@50/60Hz RGB 8:8:8,[email protected] HDMI 3D TV format
- Color Space:RGB 8:8:8 YUV 4:4:4 YCbCr4:2:2
- Color Depth:8-bit, 10-bit, 12-bit
- HDMI Audio Formats:PCM2.0/5.1/7.1CH, Dolby 5.1, DTS5.1, Dolby-TrueHD, DTS-HD
- Optical Audio Formats:LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1 CH, DTS 2/5.1CH
- Coaxial Audio Formats:LPCM 2CH.LPCM 5.1 .Dolby Digital 2/5.1 CH.DTS 2/5.1 CH
- L/R Audio Formats:Analog stereo 2CH
- ESD Protection:Human-body Model: ±8kV(Air-gap discharge), ±4kV (Contact discharge)

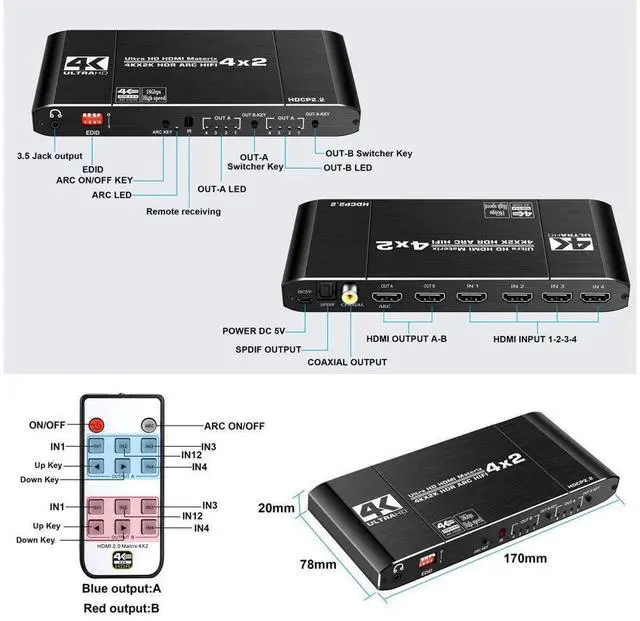

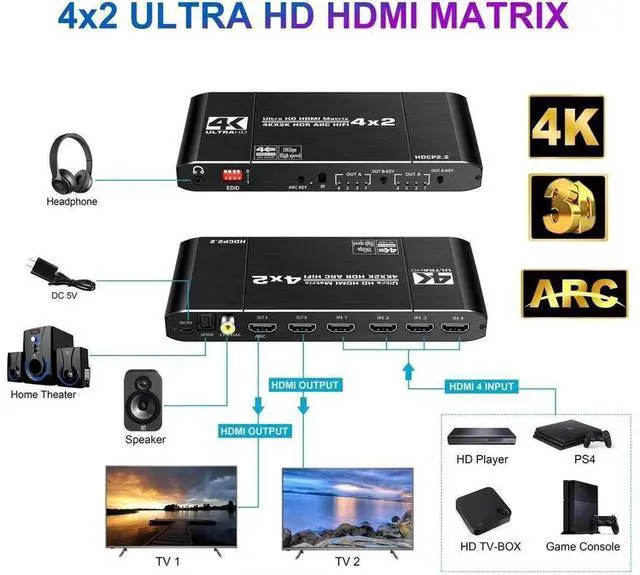

- Inputs:4xHDMI,1xlR Receiver Window
- Outputs:2xHDMI,1xL/R Audio out (3.5mm Stereo Minijack),1xOptical out(S/PDIF)ARC,1XCoaxial
- Housing:Metal
- Dimensions:170 mm(W)x78 mm(D)x20 mm(H)
- Weight:0.25kg
- Power Output: DC5V/1A
- Power Consumption:5.2 W( max)
+
+
Overview
Specs
Reviews
4K@60Hz Matrix 4x2 18.5 Gbps HDMI-compatible Switch Splitter with SPDIF and L/R 3.5 mm HDR 4x2 Support HDCP 2.2 3D
HDMI Compliance: HDMI 2.0 b
HDCP Compliance: HDCP 2.2 and HDCP 1.4
Video Bandwidth: 4K2K@50/60Hz
RGB 8:8: 8, 4K2K@30Hz. AII HDMI 3D TV format
Color Space: RGB
8:8: 8 YUV 4:4: 4 YCbCr 4:2: 2
Color Depth: 8-bit, 10-bit, 12-bit
HDMI Audio Formats: PCM 2.0 / 5.1 / 7.1CH, Dolby 5.1, DTS 5.1, Dolby-TrueHD, DTS-HD
Optical Audio Formats: LPCM 2CH, LPCM 5.1, Dolby Digital 2/ 5.1 CH, DTS 2/ 5.1CH
Coaxial Audio Formats: LPCM 2CH. LPCM 5.1. Dolby Digital 2/ 5.1 CH. DTS 2/ 5.1 CH
L/R Audio Formats: Analog stereo 2CH
ESD Protection: Human-body Model: ±8kV(Air-gap discharge), ±4kV (Contact discharge)
Inputs: 4xHDMI, 1xlR Receiver Window
Outputs: 2xHDMI, 1xL/R Audio out ( 3.5 mm Stereo Minijack), 1xOptical out(S/PDIF)ARC, 1XCoaxial
Housing: Metal
Dimensions: 170 mm (W) x78 mm (D) x20 mm (H)
Weight: 0.25 kg
Power Output: DC5V/1A
Power Consumption: 5.2 W ( max)
