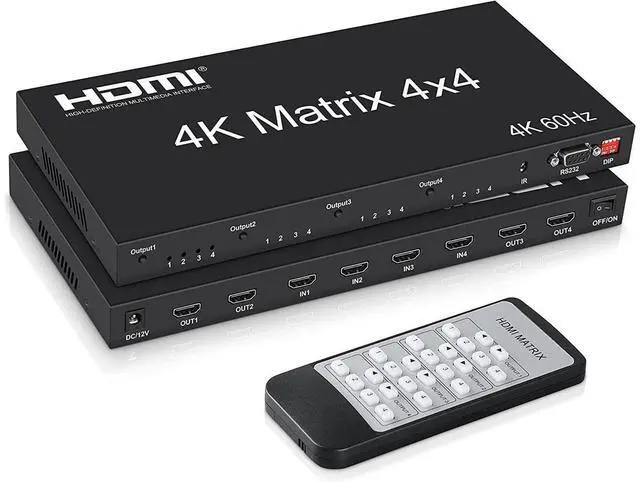

4x4 HDMI Matrix Switch 4K@60Hz, HDMI Matrix Switcher Splitter 4 in 4 Out with RS232 Control, HDMI Matrix Selector Box with EDID, Support Auto Downscaler, HDR, HDMI2.0, HDCP2.2, 18Gbps eokCXOY

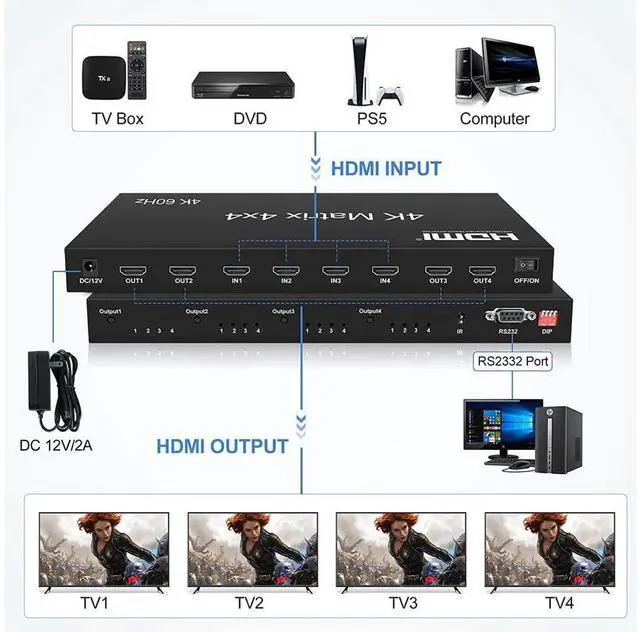

- 4x4 HDMI Matrix Switcher: 4K@60Hz HDMI matrix switch can connect up to 4 HDMI input sources to 4 HDMI displays. With the IR remote control, which can be switched or split easily to 4 HDMI compatible monitors or projectors.

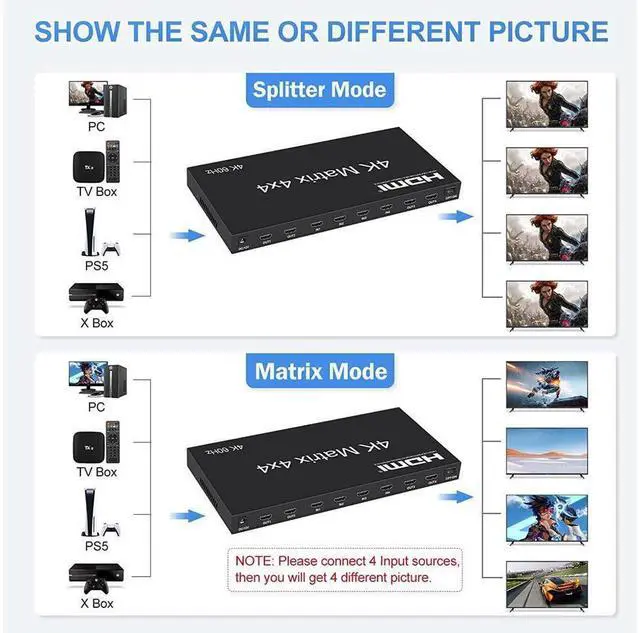

- Auto Video Scaling/Downscale Function: With the downscale function, this HDMI matrix 4 in 4 out switch can support mixed 4k & 1080p display outputs, means a 4K video source device can simultaneously display 4k video to 4K monitors and 1080p video to 1080p monitors.

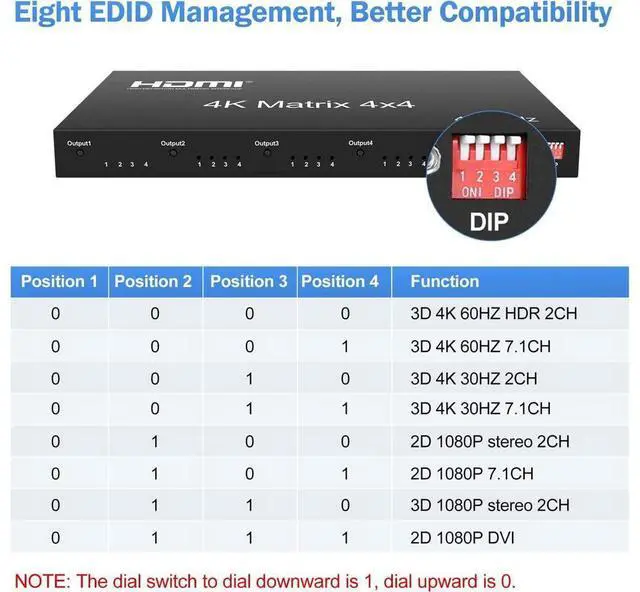

- EDID Management: This HDMI matrix 4x4 has 8 EDID handling modes, which can be learned from connected monitors or selected from pre-programmed EDID settings to match the monitor for better picture quality. Adopt the latest chips, support max resolution can up to 4K@60Hz, HDMI 2.0, HDCP 2.2, HDR, 3D, 18Gbps, 8/10/12 bit deep color.

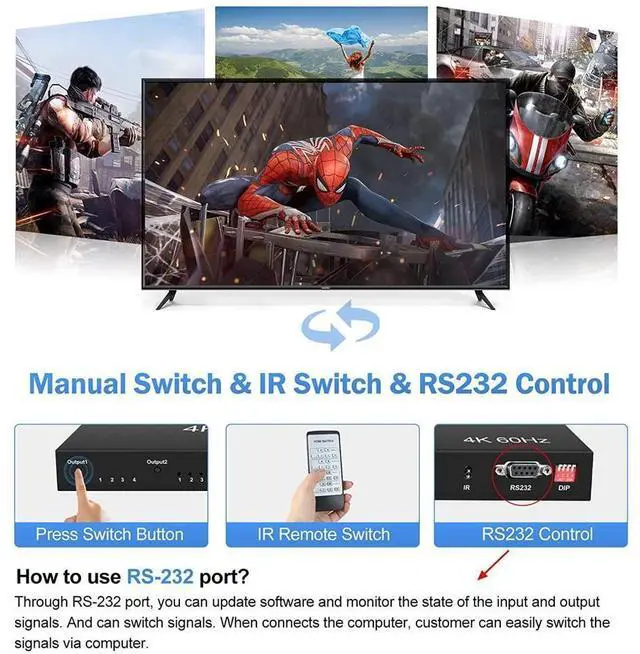

- RS232 & Remote Control: with a built-in IR remote, you can easily switch HDMI input sources and output displays by IR remote control or the switch button of this 4X4 HDMI matrix.
+
+
Overview
Specs
Reviews
Product parameters:
This HDMI matrix switcher splitter 4 in 4 out selector box can support auto video scaling/ downscale function, can mixed 4k & 1080p display outputs at the same time, which means a 4K video source device can simultaneously display 4k video to 4K monitors and 1080p video to 1080p monitors.
NOTE: Only supports mixed 4K@60Hz & 1080p@60Hz display outputs.
HDMI version: HDMI 2.0 (downward compatible)
HDCP version: HDCP 2.2 (downward compatible)
Resolution: up to 3840x2160/60Hz (RGB/YUV 4:4: 4) (downward compatible)
Support color format: 8/10/12bit
Support audio format: DTS-HD/Dolby-trueHD/LPCM 7.1 /DTS/Dolby-AC3/DSD
Maximum transmission rate: 18Gbps
HDMI input port: 4
HDMI output port: 4
Input cable length: 5M AWG24 HDMI standard cable
Output cable length: 5M AWG24 HDMI standard cable

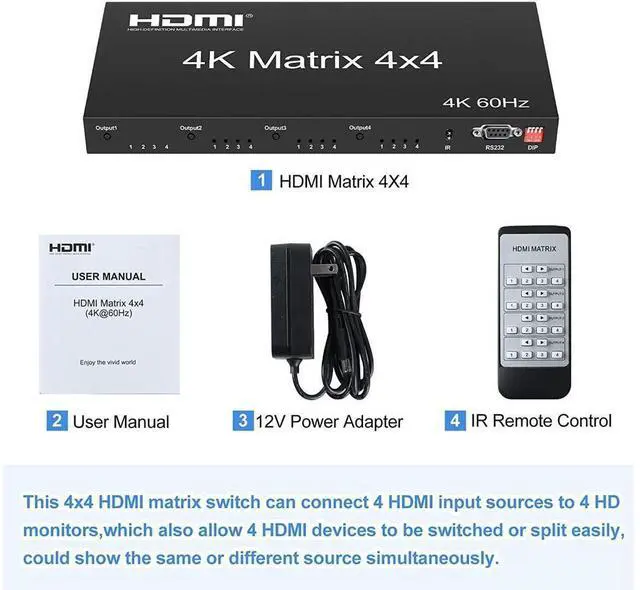

Package included:
1 x 4K@60Hz HDMI Matrix Switcher
1 x 12V Power Adapter
1 x IR Remote Control
1 x User Manual
