Torpedo Nova HDMI eARC Audio Extractor, 7.1CH Dolby Atmos, 4K@60Hz HDR, HDCP 2.2, Optical/Coaxial/3.5mm/HDMI Audio Output

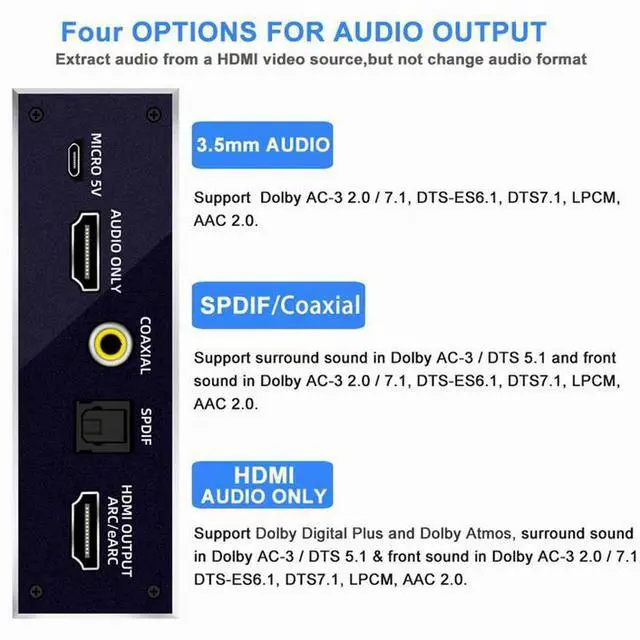

- There are 1 HDMI input ,1 port HDMI output ,1 port Toslink audio output ,1 port coaxial audio output,1 port 3 .5mm audio jack ,1 port HDMI audio output .
- HDMI(AUDIO ONLY)/coaxial /optical toslink SPDIF audio output support audio return channel function (ARC)
- AUDIO ONLY HDMI support eARC (Enhanced Audio Return Channel)
- 3.5mm Jack port output support audio extract function ,it does not support ARC/eARC
- support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@30/60Hz With 24bit RGB 8 :8 :8 /YcbCR4 :4 :4 (4k@60hzYUV 4:4:4).
- Max bandwidth per channel :600MHz.Max baud rate per display :18.5Gbps
- Compatible with HDR 10,HDMI 2.0b,HDCP2.3/2.2/1.4/1.3/1.2/1.1.
- Navceker HDMI Switch support LPCM 7.1CH ,Dolby True -HD,DTS -HD,AC 3,DTS ,DSD, Dolby Digital Plus and Dolby Atmos audio format ,But can 't decode these audio formats .If your Amplifier or soundbar not support these audio formats ,there will be no audio out from your soundbar or amplifier .At this situation ,please set the audio format to PCM /LPCM on your HDMI source .
- HDMI Audio Extractor -with Optical TOSLINK SPDIF+Coaxial+3.5mm+HDMI audio out allow you to extract the sound from the HDMI input source (like PS5/4,Xbox one etc .)to your soundbar or amplifier ,no need connecting TV or Monitor .
- HDMI ARC/eARC Adapter - Extractor the Audio from IV to Soundbar or Amplifier .Connect your TV HDMI (ARC/eARC)Port to this switch HDMI Output Port with HDMI Cable ,then optical/Coaxial /H
+
+
Overview
Specs
Reviews

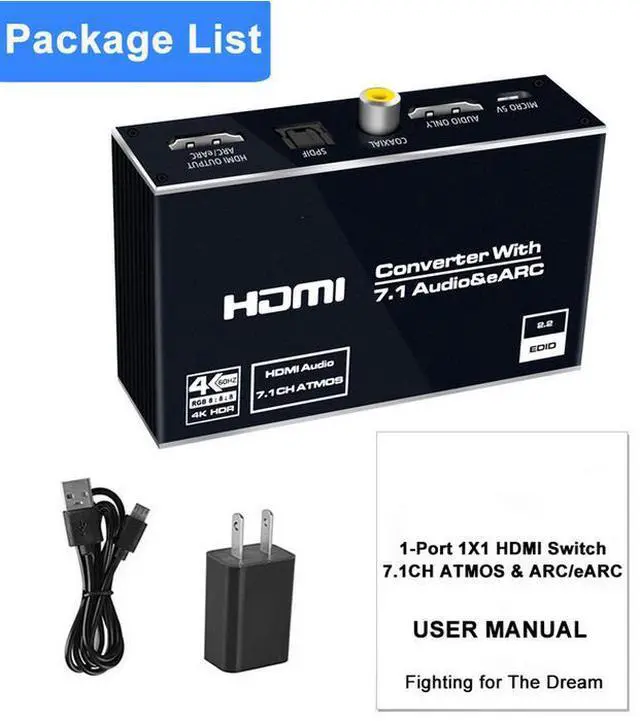

ACKAGE:
- 5V/2A DC Power Adapter...............................1 pcs
- User Manual........................................................1 pcs
- HDMI eARC Audio Extractor Splitter.......................1 pcs
SPECIFICATIONS
Input ports..............................................................................1XHDMI
Output port........................................................... 1 XHDMI(Female type )
1 XHDMI Audio output...........................support ARC/eARC function
1 XToslink Audio output........................support audio return channel function
1 XCoaxial Audio output........................support audio return channel function
1 x3.5mmJack output .............................support audio extract function
Audio support.....................LPCM 7 .1CH,Dolby TrueHD ,and DTS -HD Master Audio
Video Resolution........................................up to 4k@60hz RGB 8 :8:8
Operating Temperature...................................0 C to 40 C/ 32Fto 104F
Storage Temperature.......................................- 20 C to 6 C/ -4F to 104F
Dimensions...........................................................60X82X22MM

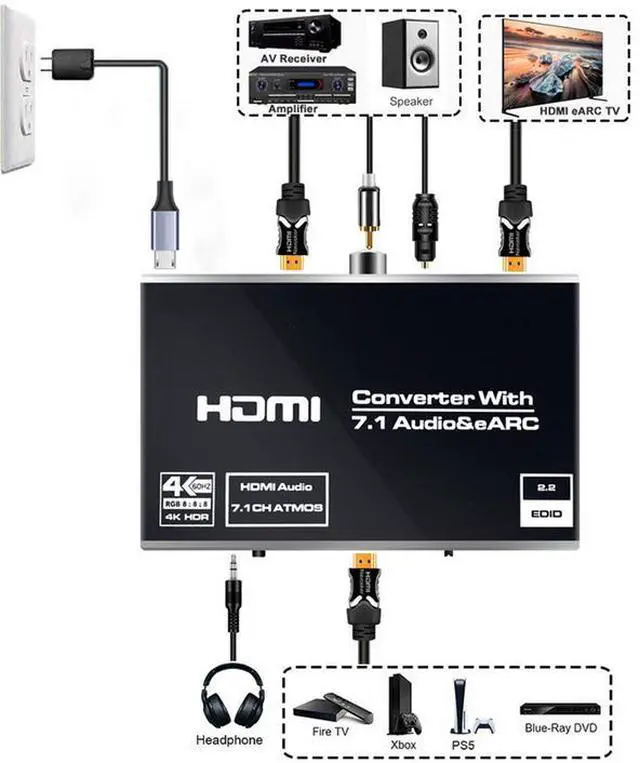

CONNECTION DIAGRAM
Notes :
1 .ARC/eARC :First ,Please make sure your display support ARC/eARC function .Second ,Using HDMI cable plug into HDMI ARC/eARC port on your display .and the other side plug into the HDMI output on the switch .( warm tips :3 .5mm audio does not support ARC/eARC function )
2 .You should operate it properly when the switch is working ,If you find the switch is not working ,we suggest you unplug the power supply and plug it again .
3 .When turn on the switch ,By default ,the input 1led indicator will light on at the start when disconnect HDMI source .
4 .It supports Optical /3.5mm/HDMI audio out cable up to 1 0meters(max),If you choose HDMI audio out ,you can enjoy 7 .CH,5 .1CH,2 CH or audio copy ,If you choose optical audio out ,you can enjoy 5 .1 CH or 2 CH or audio copy .If you choose 3 .5 mm audio out ,you can enjoy 2 CH or audio copy .
5 .5 seconds to change next source .This is normal ,please don 't worry .
