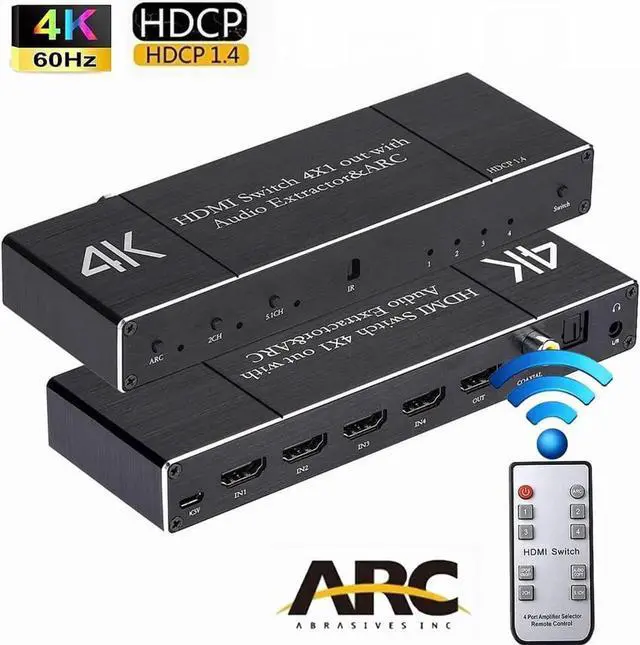

DIXSG 4K HDMI 2.0 Switch 4x1 HDMI Switcher Audio Extractor with SPDIF Coaxial 3.5mm Audio Out With ARC For PS3 PS4 Apple TV HDTV

4K HDMI 2.0 Switch 4x1 HDMI Switcher Audio Extractor with SPDIF Coaxial 3.5mm Audio Out With ARC For PS3 PS4 Apple TV HDTV

4x1 HDMI-compatible 4x1 HDMI-compatible Switch: There is a high performance 4 HDMI-compatible input and 1 output switcher. Toslink output support ARC audio return control function, 3.5mm Jack output support audio extract function. Creating a superb picture quality and seamless sound. NO lag, NO flash or drop in resolution.

Remote control: Gives users complete control over the selection of sources and make device incredibly friendly.

Wild compatibility: Compatible with any HDMI-compatible device such as PS4/ Roku/ Fire TV/ Blu-ray players/HD TV /HD Project;

HDMI -compatibleARC adapter: Extractor the Audio from TV to Soundbar or Amplifier. Connect your TV HDMI-compatible(ARC) Port to this switch HDMI-compatible Output Port with HDMI-compatible Cable, then optical cable to the soundbar, Speaker,home theater, AV receivers etc.

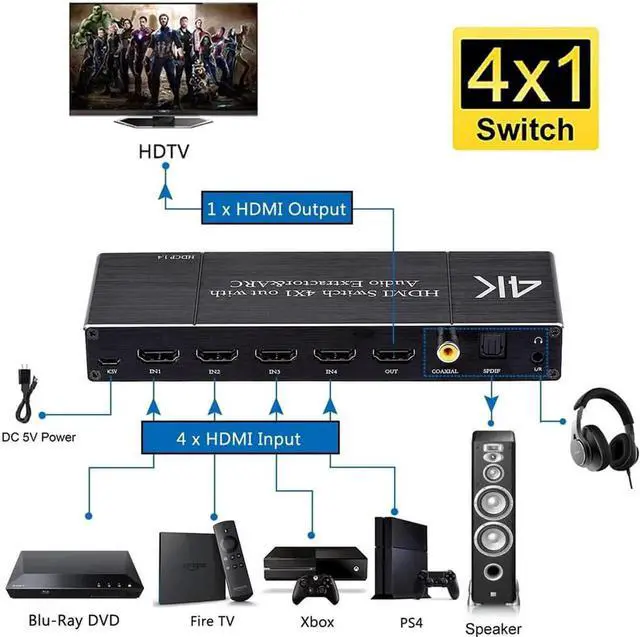

This HDMI Switch support 4 HDMI Inputs to 1 HDMI Output, can be applied for connection, signal amplification, multi-picture conversion and for selection between computer/PC, STB/Smart Box, DVD Player, Blue-ray Player, PS3/PS4 Pro and LCD TV,LCD,Projector, as well as an Audio/Video receiver.

The excellent quality allows you to experience the fun brought by the infusion of science and technology into life.

Wild applicability:Compatible with any HDMI-compatible devices such as Nintendo Switch, PS4 Pro, Xbox 360, PS3, Beamer, DVB Receivers, Blu-ray Player, Apple TV 4, Laptop and HDTV/HD Monitor etc.

-Input: HDMI x 4

-Output: HDMI x 1, Toslink x 1, 3.5mm L/R x 1, Coaxial x 1

-Coaxial and Toslink port output support ARC. (Note:3.5mm audio port not support ARC function)

-support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@20/30Hz with 24bit RGB/ YcbCR 4:4:4/YcbCR 4:2:2 (4k@60hzYUV4:2:0)

-Max bandwidth per channel: 300MHz. Max baud rate per display: 10.2Gbps

-Supports Dolby True-HD, DTS-HD, AC3, DTS, DSD. This HDMI Switch will output the Dolby True-HD, DTS-HD, AC3, DTS, DSD audio format, But can't decode these audio formats.

-Support 24/30/36 bit deep color per channel (Kindly Note: It is can not compatible with DVI.we do not recommended that you use HDMI to DVI cable connect to your projector /monitor)

-HDMI input and output hdmi 2.0 cables can reach up to 3 meters if your Resoltion up to 4K@60HZ;can reach up to 5 meters if your Resoltion up to 4K@30HZ

This HDMI Switch support 4 HDMI Inputs to 1 HDMI Output, can be applied for connection, signal amplification, multi-picture conversion and for selection between computer/PC, STB/Smart Box, DVD Player, Blue-ray Player, PS3/PS4 Pro and LCD TV, LCD, Projector, as well as an Audio/Video receiver.

-Input: HDMI x 4

-Output: HDMI x 1, Toslink x 1, 3.5 mm L/R x 1, Coaxial x 1

-Coaxial and Toslink port output support

ARC. (Note: 3.5 mm audio port not support ARC function)

-support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@20/30Hz with 24bit RGB/ YcbCR 4:4: 4/YcbCR 4:2: 2 (4k@60hzYUV 4:2: 0)

-Max bandwidth per channel: 300MHz.

Max baud rate per display: 10.2G bps

-Supports Dolby True-HD, DTS-HD, AC3, DTS, DSD. This HDMI Switch will output the Dolby True-HD, DTS-HD, AC3, DTS, DSD audio format, But can't decode these audio formats.

-HDMI input and output hdmi 2.0 cables can reach up to 3 meters if your Resoltion up to 4K@60HZ; can reach up to 5 meters if your Resoltion up to 4K@30HZ
