    HDMI matrix switcher 4x4, 4K HDMI matrix switcher 4 in 4 out box with EDID extractor and IR remote control, support 4K HDR, HDMI 2.0b, HDCP 2.2, 4K@60Hz, 3D, YUV 4:4:4

    Be the first to review this product...
    • HDMI Matrix 4x4: This 4-in/4-out HDMI matrix switcher can connect 4 HD sources to 4 HD display terminals. The matrix allows 4 HDMI devices to be easily switched or split to 4 HDMI compatible displays or projectors. It supports HDCP 2.2,
    • HDMI 2.0b, 4K@60HZ, RGB 4:4:4, YUV 4:4:4, and 4K HDR. It can also be controlled via IR remote control. After setting EDID, please restart your HDMI matrix switcher.
    • HDMI video formats: 4K@60Hz, 4K HDR, 3840x2160@60Hz, Ultra HD, 3D, RGB 4:4:4, YUV 4:4:4. supports 18Gbps data rate, tmds clock up to 600Mhz. supports deep color 8/10/12/24 bit
    • EDID Management: Learn EDID from connected displays or select from a wide range of pre-programmed EDID settings to ensure the correct signal resolution is output from the source for better image quality.
    • Compatibility: HDCP 2.2 support, HDMI 2.0b compatible Input support: PC, PS3, PS4 pro, Xbox, Xbox one, Nintendo Switch, HD players, Fire TV, Apple TV, etc. Output support: Projector, HDTV, etc.
    • Translated wit
    +
    +
    Overview
    Specs
    Reviews
    image for this item
    image for this item

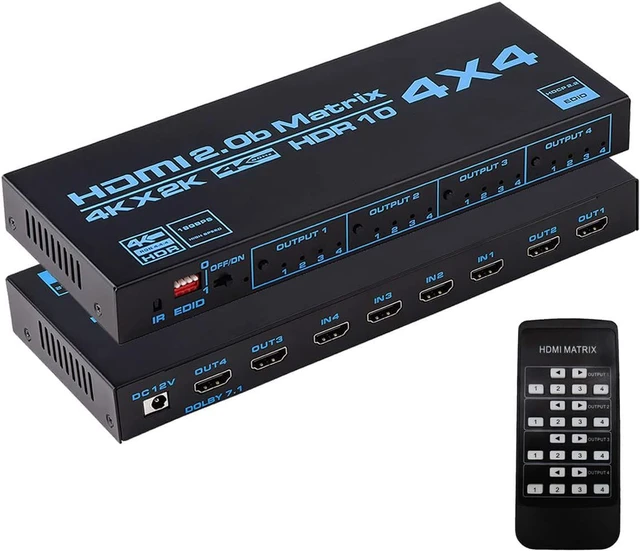

    HDMI Matrix Switch 4x4

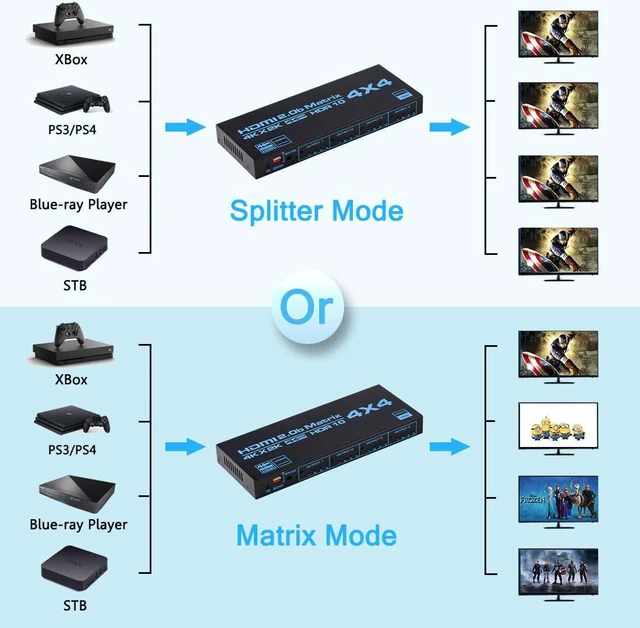

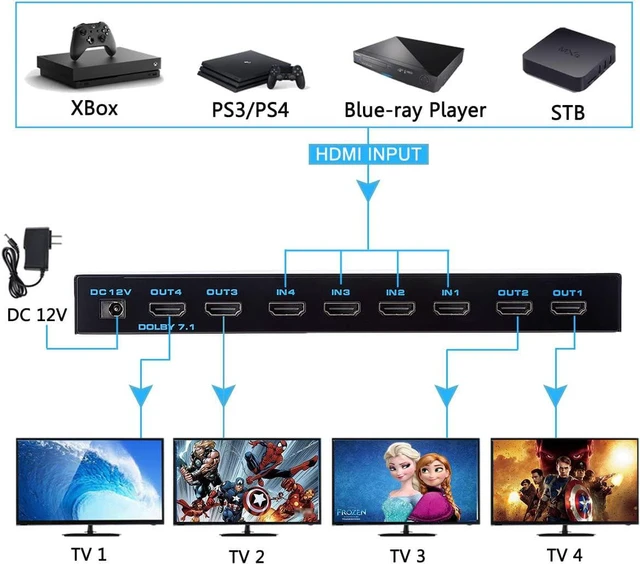

    HDMI Matrix 4 in 4 out can connect 4 HD signal sources to 4 HD display terminals. The matrix allows 4HDMI devices to be switched or split easily to 4 HDMI compatible monitors or projectors.

    Features

    - Support HDMI 2.0b HDCP 2.2

    - Support 3D video format

    - Support highest resolution up to 3840*2160/60Hz YUV4:4:4

    - Support 18Gbps data rate and tmds clock up to 600Mhz

    - Support deep color 8/10/12/24bit

    - Input and output cable distance: <8m AWG26 HDMI2.0b standard cable

    image for this item
    Wide Compatibility

    Support HDCP 2.2, compatible with HDMI 2.0b. Input support: Computer, PS3, PS4 pro, Xbox, Xbox one, Nintendo Switch, HD player, Fire TV, Apple TV etc. Output support: Projector, HDTV etc.

    Package contents
    • 1x HDMI Matrix 4X4
    • 1x 12V power adapter
    • 1x IR Remote Control
    • 1x User Manual
    image for this item

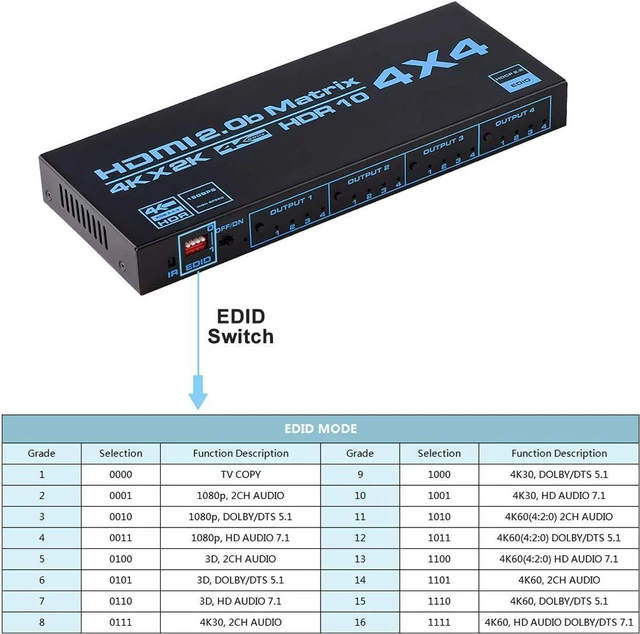

    Settable EDID

    EDID switch sets the video and audio mode of the HDMI source.

    Flexible EDID switching provides 16 switching modes that can be met for different resolution needs.

    image for this item

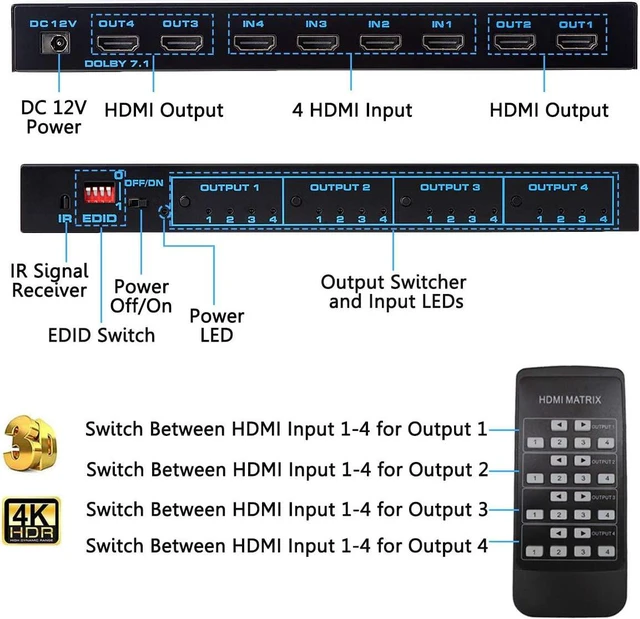

    Two Switching Modes

    Manual Switch - Simply choose whichever inputs you want with the button on the box.

    Remote Control Switch - Effortlessly swap HDMI channels up to 15 ft with the remote.

    image for this item

    Support 4K 60HZ & 3D

    HDMI Resolution: 3D, Full HD, 4kx2k, up to 3840X2160/60Hz, RGB 4:4:4

    HDMI Matrix 4x4: This 4-in/4-out HDMI matrix switcher can connect 4 HD sources to 4 HD display terminals. The matrix allows 4 HDMI devices to be easily switched or split to 4 HDMI compatible displays or projectors. It supports HDCP 2.2,
    HDMI 2.0 b,
    4K@60HZ,
    RGB 4:4: 4, YUV
    4:4: 4, and 4K HDR. It can also be controlled via IR remote control. After setting EDID, please restart your HDMI matrix switcher.
    HDMI video formats: 4K@60Hz, 4K HDR, 3840x2160@60Hz, Ultra HD, 3D, RGB
    4:4: 4, YUV
    4:4: 4. supports 18Gbps data rate, tmds clock up to 600Mhz. supports deep color 8/10/12/24 bit
    EDID Management: Learn EDID from connected displays or select from a wide range of pre-programmed EDID settings to ensure the correct signal resolution is output from the source for better image quality.
    Compatibility: HDCP 2.2 support, HDMI 2.0 b compatible
    Input support: PC, PS3, PS4 pro, Xbox, Xbox one, Nintendo Switch, HD players, Fire TV, Apple TV, etc.
    Output support: Projector, HDTV, etc.

    Translated with www. DeepL. com/Translator (free version)
