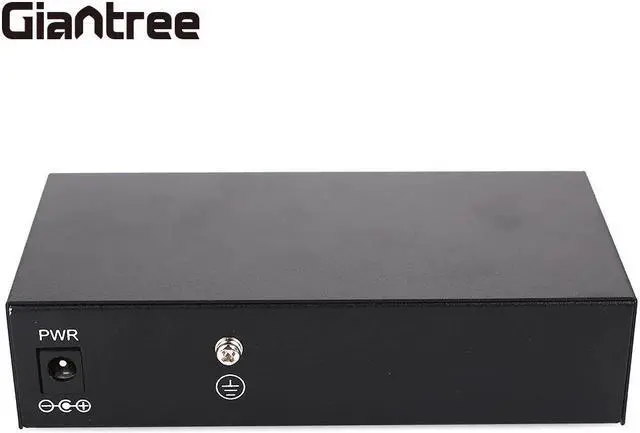

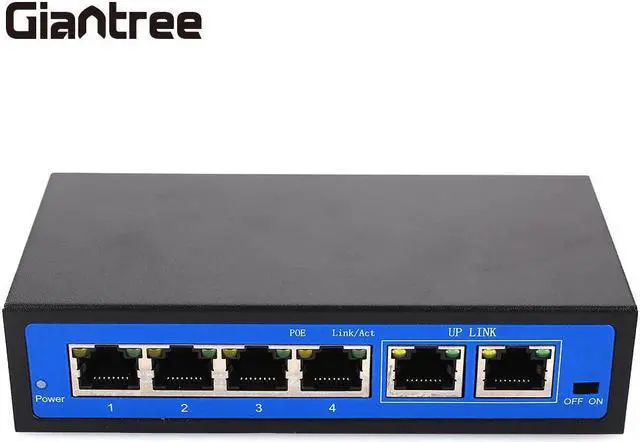

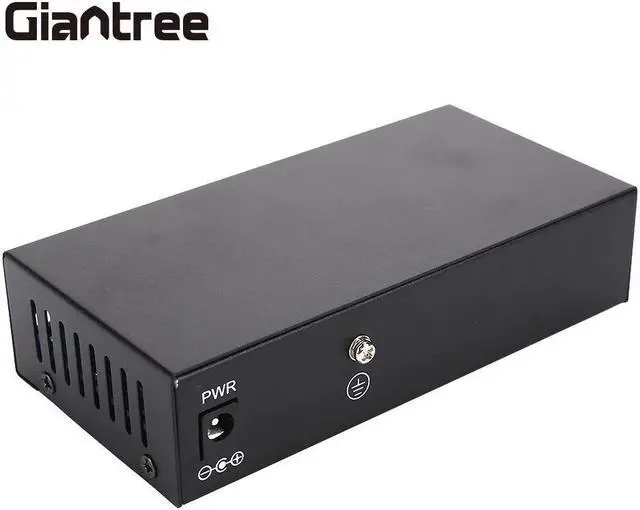

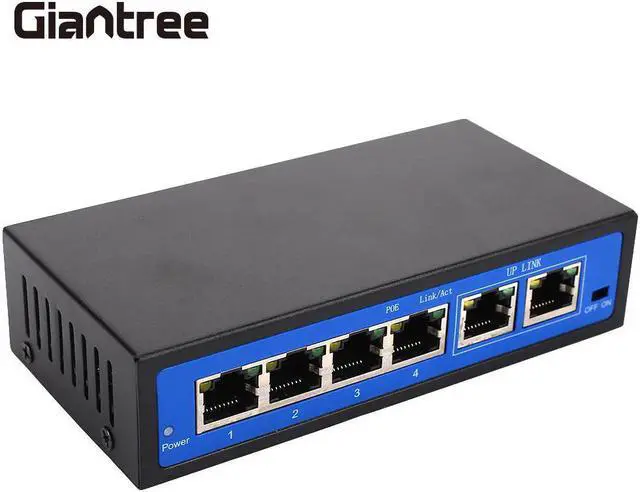

Ethernet Switch 4 Injector Camera Universal Switch 10/100 Mbps Home Network Switches Router 4+2 Ports

Product Features:

The 4+2 port desktop Ethernet switch provides non-blocking, wire speed switching for your 10/100 negabit network.

Widely used in wireless AP, IP phone, camera, wireless bridge, alarm, network hard disk player, monitor display, wireless router, network print server, etc.

The Ethernet Switch was designed for easy installation and high performance in an environment where traffic on the network and the number of users increase continuously.

Applicable for: small and medium-sized office networks,Every port has independent bandwidth.

It not only can realize the data transmission function of common switches but also can supply power to network terminals at the same time.

Description:

Colour: Black

Product Model: ZWD-8+2FBQW

Transmission rate: 10Mbps, 100Mbps

port: 1-4 ports support IEEE 802.3af (15.4W) network power supply

port output power: 15.4W/30W IEEE802.3af/at

transmission wire core: 4/5+, 7/8- pairs

Port description: 4 x Fast Ethernet ports; 2 Fast Ethernet ports

connection standard: IEEE802.3af/IEEE802.3at

Backplane bandwidth: 1.2Gbps

power transmission distance: 250 meters

type: end bridging method

Network standards: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af/at

Network Media: Category 5 and above unshielded twisted pair

Network signal distance transmission: 120 meters

Forwarding method: store and forward

Forwarding rate: 10Base-T: 14880PPS/port, 100Base-TX: 14880PPS/port

MAC address: 2KMAC

Indicators: 1 x Link/Act and per port, 1 x Power indicator per device

Total power consumption: 70W

Working temperature: 0 °C ~ 40 °C
