Specifications:

Test the information of the standard/non-standard PoE device, such as voltage, polarity, mid-span or end-span.

Test of real-time power consumed by PD devices in PoE power supply systems.

Test the open, short, cross status in the network cable.

Test the power consumed by DC appliances.

The loop test function of the switch.

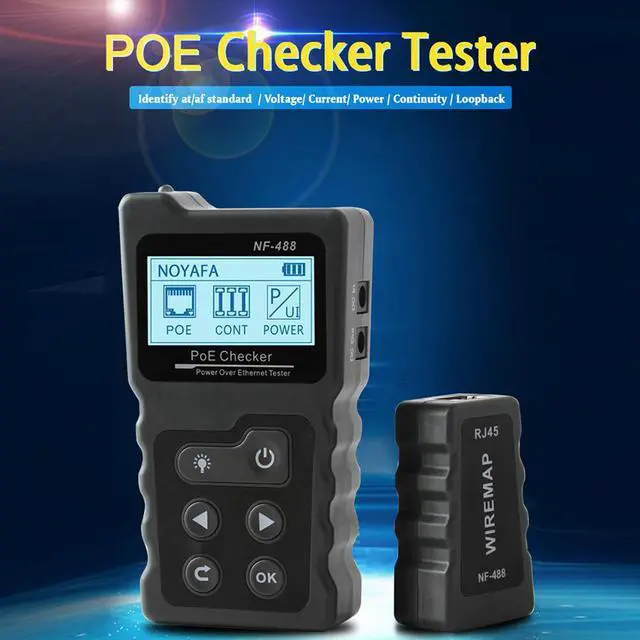

Item Name: Network Cable Tester

Material: ABS

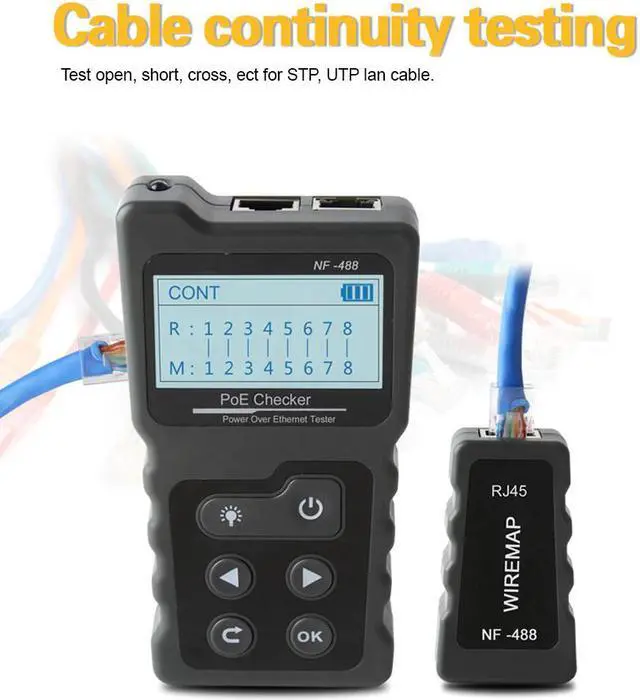

Continuity Function:

Cable Type: STP/UTP

Maximum Testing Range: 600m

Wire Mapping: Emitter + Remote, Emitter + Switch/Routor

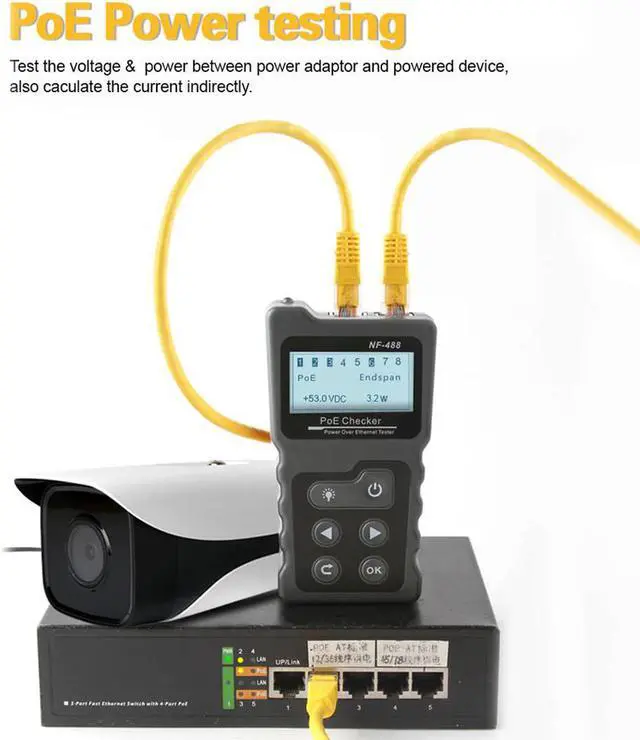

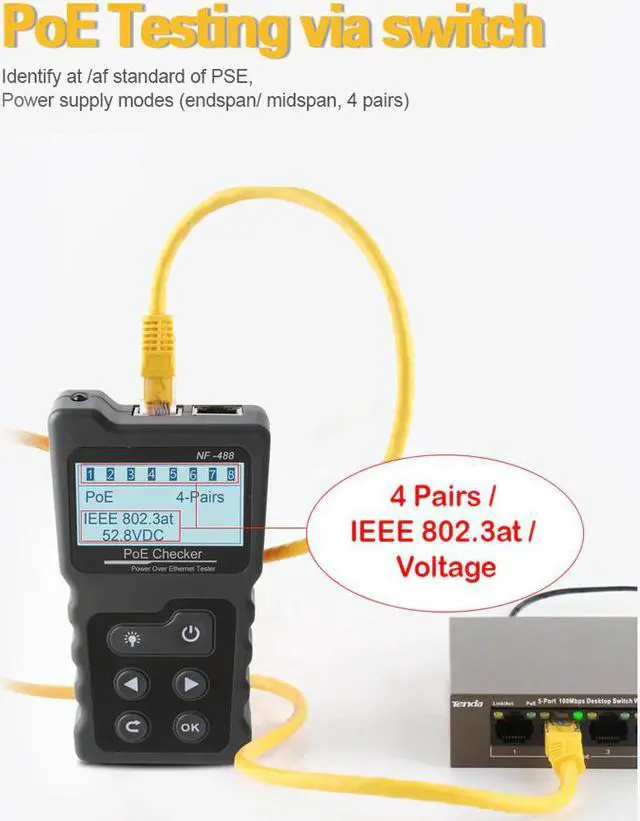

POE Function:

Test Range: DC 5-60V PoE Switch

Standard Identify: 802.3af/at (Standard/Non-standard)

Test Range Power: 0-18W

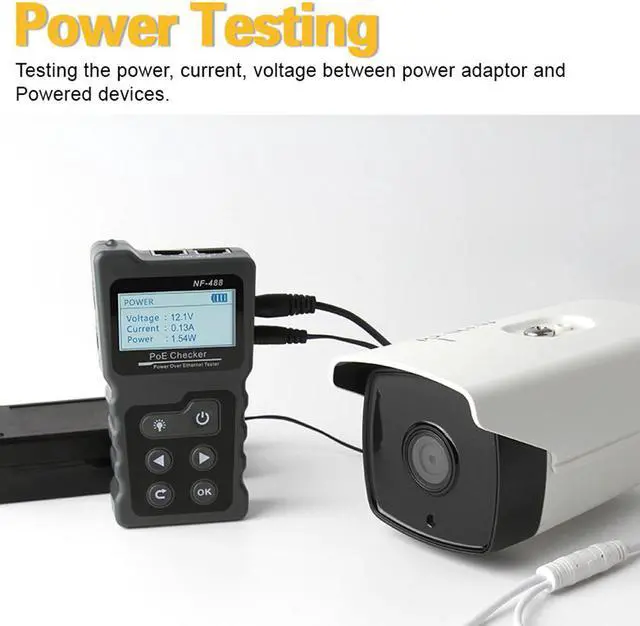

Power Function:

Voltage Test Range: DC 0-60V

Current Test Range: 0-3A

Power Test Range: 0-180W

Display: LCD Screen, with Backlight

Input Voltage Protection: DC 48V, 5mA

Maximum Working Current: Loopback: Compatible with 10m/100m/1000m Switch

Power Supply: 3 x 1.5V AAA Battery (Not Included)

Remote Specification:

Ports: RJ45

Function: Wire Mapping for Network Cable

Input Voltage Protection: DC 48V, 5mA

Features: Portable, Fine Workmanship, LCD Display

Screen Size: 128mm x 64mm/5.04" x 2.52" (Approx.)

Total Size: 14cm x 4cm x 2cm/5.51" x 1.57" x 0.79" (Approx.)

Notes:

Due to the light and screen setting difference, the item's color may be slightly different from the pictures.

Please allow slight dimension difference due to different manual measurement.

1 x Emitter
